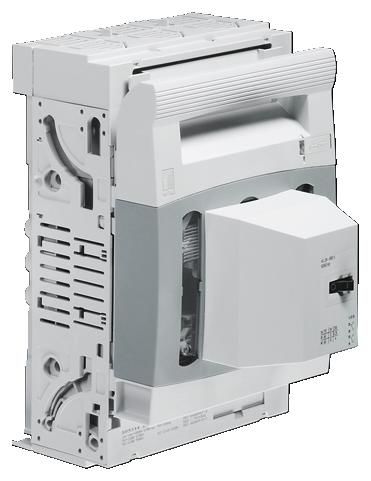

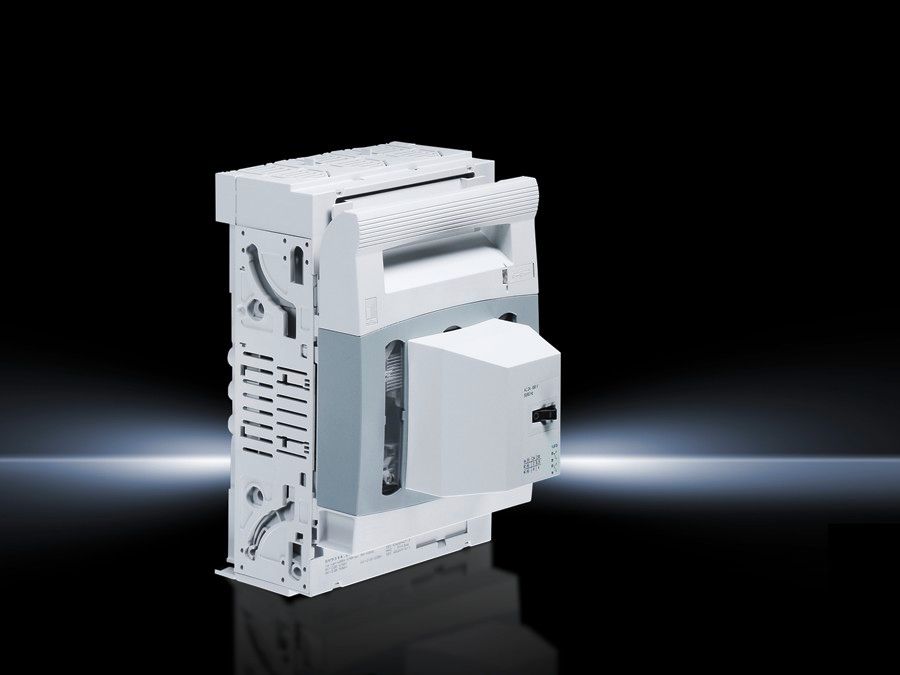

Rittal 9344350 SV NH fuse-switch disconnector, size 3, 630 A, 690 V, 3-pole, screw M10, with electromechanical fuse monitoring, for mounting plate assembly
|
412,61 EUR |
|||||||||||
|
incl. 5,61 EUR copper surcharge ( 491,01 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 359112 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 9344350 | ||||||||||
| UPC/EAN: | 4028177540750 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 9344350:
Fire protection corresponding to UL 94-V0
Contact tracks: Electrolytic copper, silver-plated
Colour: Chassis: RAL 7035
Cover: RAL 7035/7001
Basis of test: IEC/DIN EN 60 947-3
DIN EN 60 269-2 (fuse inserts)
Packs of: 1 pc(s).
EAN: 4028177540750
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27371401
ETIM 6.0: EC001040
Design: Size: 3
Number of poles: 3-pole
For mounting plate assembly: yes
Dimensions: Width: 250 mm
Height: 298 mm
Type of electrical connection: Screw M10
Rated operating voltage: 690 V, 3~
Clamping area for laminated copper bars: Width: 50 mm
Height: 10 mm
Connection for round conductor cross-sections: 10 mm² - 300 mm²
Rated operating current max.: 630 A
Cable outlet: Top/bottom
Weight/pack: 4.16 kg
Type: SV 9344.350
Questions & answers
What is the delivery time of Rittal 9344350 SV NH fuse-switch disconnector, size 3, 630 A, 690 V, 3-pole, screw M10, with electromechanical fuse monitoring, for mounting plate assembly?
The article Rittal 9344350 SV NH fuse-switch disconnector, size 3, 630 A, 690 V, 3-pole, screw M10, with electromechanical fuse monitoring, for mounting plate assembly is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9344350 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9344350 SV NH fuse-switch disconnector, size 3, 630 A, 690 V, 3-pole, screw M10, with electromechanical fuse monitoring, for mounting plate assembly always at the best possible price. We can give you a discount of 2% on Rittal 9344350 SV NH fuse-switch disconnector, size 3, 630 A, 690 V, 3-pole, screw M10, with electromechanical fuse monitoring, for mounting plate assembly if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Rittal 9344350 SV NH fuse-switch disconnector, size 3, 630 A, 690 V, 3-pole, screw M10, with electromechanical fuse monitoring, for mounting plate assembly we can offer you a price of 406,51 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
