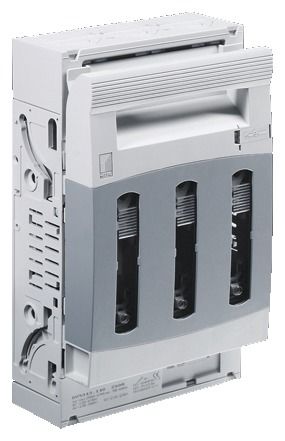

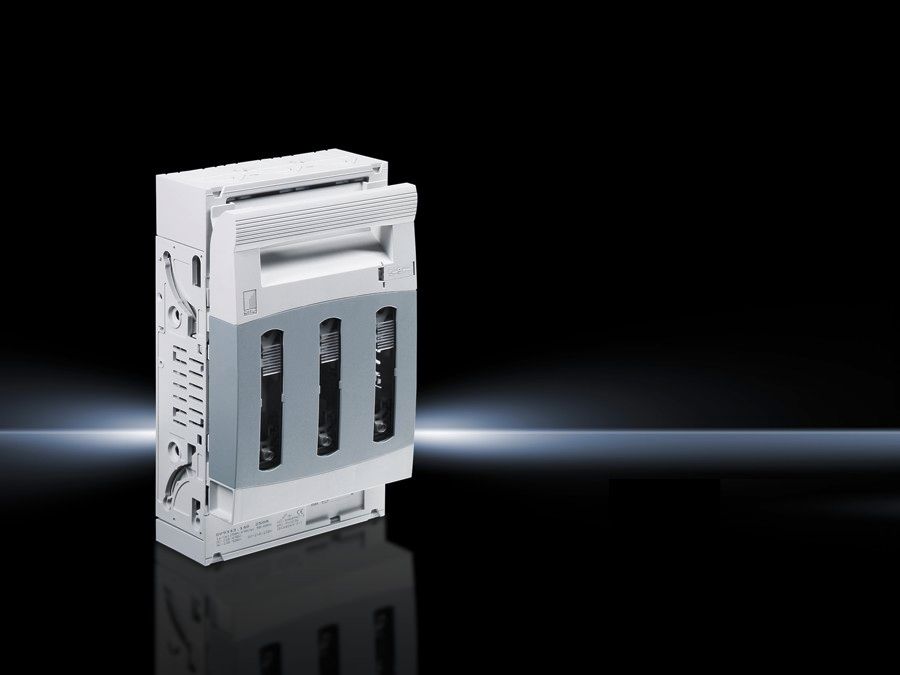

Rittal 9344100 SV NH fuse-switch disconnector, size 1, 250 A, 690 V, 3-pole, box terminal, for mounting plate assembly
|
-10% 147,72 EUR 163,66 EUR |
|
|
incl. 2,93 EUR copper surcharge ( 175,79 EUR incl. VAT ) ≈ £126.60 | ≈ $167.81 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Lieske Part No.: | 763566 |
|---|---|
| Mfg Part No: | 9344100 |
| UPC/EAN: | 4028177540590 |
| Weight: | 2.28 kg |
| Type: | SV 9344100 |
Further Switching units / measuring, control relay from RittalFurther products in category Switching units / measuring, control relay
All products of Rittal
Product information for Rittal 9344100:
Material: Polyamide (PA 6)
Fire protection corresponding to UL 94-V0
Contact tracks: Electrolytic copper, silver-plated
Colour: Chassis: RAL 7035
Cover: RAL 7035/7001
Basis of test: IEC/DIN EN 60 947-3
DIN EN 60 269-2 (fuse inserts)
Note: The technical data may vary for UR applications. Applications to UR only in conjunction with Special Purpose Fuses.
Packs of: 1 pc(s).
EAN: 4028177540590
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27371401
ETIM 6.0: EC001040
Design: Size: 1
Number of poles: 3-pole
For mounting plate assembly: yes
Dimensions: Width: 184 mm
Height: 298 mm
Type of electrical connection: Box terminal
Rated operating voltage: 690 V, 3~
Clamping area for laminated copper bars: Width: 20 mm
Height: 3 mm - 14 mm
Connection for round conductor cross-sections: 35 mm² - 150 mm²
Note: Connection of sector-shaped conductors 50 – 150 mm².
Rated operating current max.: 250 A
Cable outlet: Top/bottom
Weight/pack: 2.28 kg
Fire protection corresponding to UL 94-V0
Contact tracks: Electrolytic copper, silver-plated
Colour: Chassis: RAL 7035
Cover: RAL 7035/7001
Basis of test: IEC/DIN EN 60 947-3
DIN EN 60 269-2 (fuse inserts)
Note: The technical data may vary for UR applications. Applications to UR only in conjunction with Special Purpose Fuses.
Packs of: 1 pc(s).
EAN: 4028177540590
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27371401
ETIM 6.0: EC001040
Design: Size: 1
Number of poles: 3-pole
For mounting plate assembly: yes
Dimensions: Width: 184 mm
Height: 298 mm
Type of electrical connection: Box terminal
Rated operating voltage: 690 V, 3~
Clamping area for laminated copper bars: Width: 20 mm
Height: 3 mm - 14 mm
Connection for round conductor cross-sections: 35 mm² - 150 mm²
Note: Connection of sector-shaped conductors 50 – 150 mm².
Rated operating current max.: 250 A
Cable outlet: Top/bottom
Weight/pack: 2.28 kg
Please note...
This article contains a copper surcharge of 2,93 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
