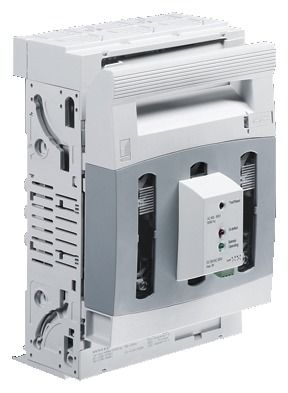

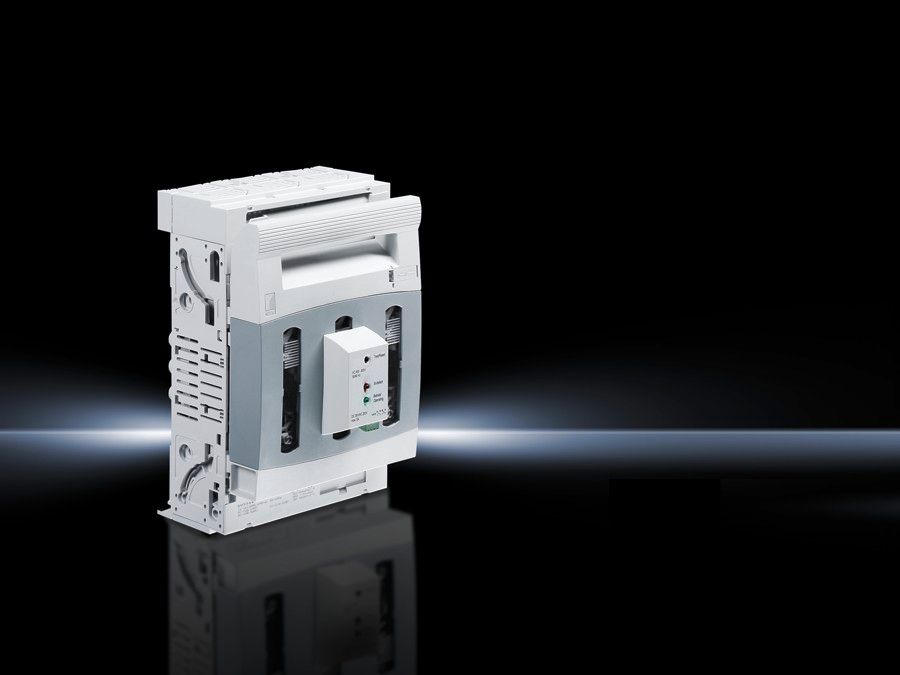

Rittal 9343230 SV NH fuse-switch disconnector, size 2, 400 A, 400-690 V, 3-pole, screw M10, with electronic fuse monitoring
|
-6% 351,44 EUR 374,99 EUR |
|
|
incl. 9,77 EUR copper surcharge ( 418,21 EUR incl. VAT ) ≈ £301.18 | ≈ $399.24 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 502239 |
| Mfg Part No: | 9343230 |
| UPC/EAN: | 4028177540415 |
| Weight: | 3.52 kg |
| Type: | SV 9343230 |
Further Switching units / measuring, control relay from RittalFurther products in category Switching units / measuring, control relay
All products of Rittal
Product information for Rittal 9343230:
Material: Polyamide (PA 6)
Fire protection corresponding to UL 94-V0
Contact tracks: Electrolytic copper, silver-plated
Colour: Chassis: RAL 7035
Cover: RAL 7035/7001
Basis of test: IEC/DIN EN 60 947-3
DIN EN 60 269-2 (fuse inserts)
Packs of: 1 pc(s).
EAN: 4028177540415
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27371401
ETIM 6.0: EC001040
Design: Size: 2
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 210 mm
Height: 298 mm
Type of electrical connection: Screw M10
Rated operating voltage: 400 V - 690 V, 3~
Clamping area for laminated copper bars: Width: 50 mm
Height: 10 mm
Connection for round conductor cross-sections: 10 mm² - 240 mm²
Rated operating current max.: 400 A
Cable outlet: Top/bottom
Weight/pack: 3.44 kg
Fire protection corresponding to UL 94-V0
Contact tracks: Electrolytic copper, silver-plated
Colour: Chassis: RAL 7035
Cover: RAL 7035/7001
Basis of test: IEC/DIN EN 60 947-3
DIN EN 60 269-2 (fuse inserts)
Packs of: 1 pc(s).
EAN: 4028177540415
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27371401
ETIM 6.0: EC001040
Design: Size: 2
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 210 mm
Height: 298 mm
Type of electrical connection: Screw M10
Rated operating voltage: 400 V - 690 V, 3~
Clamping area for laminated copper bars: Width: 50 mm
Height: 10 mm
Connection for round conductor cross-sections: 10 mm² - 240 mm²
Rated operating current max.: 400 A
Cable outlet: Top/bottom
Weight/pack: 3.44 kg
Please note...
This article contains a copper surcharge of 9,77 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
