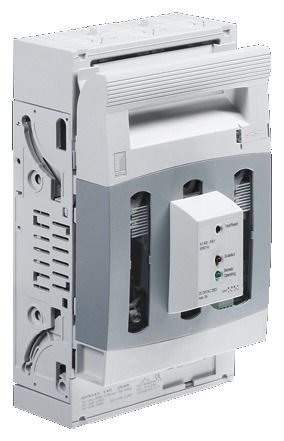

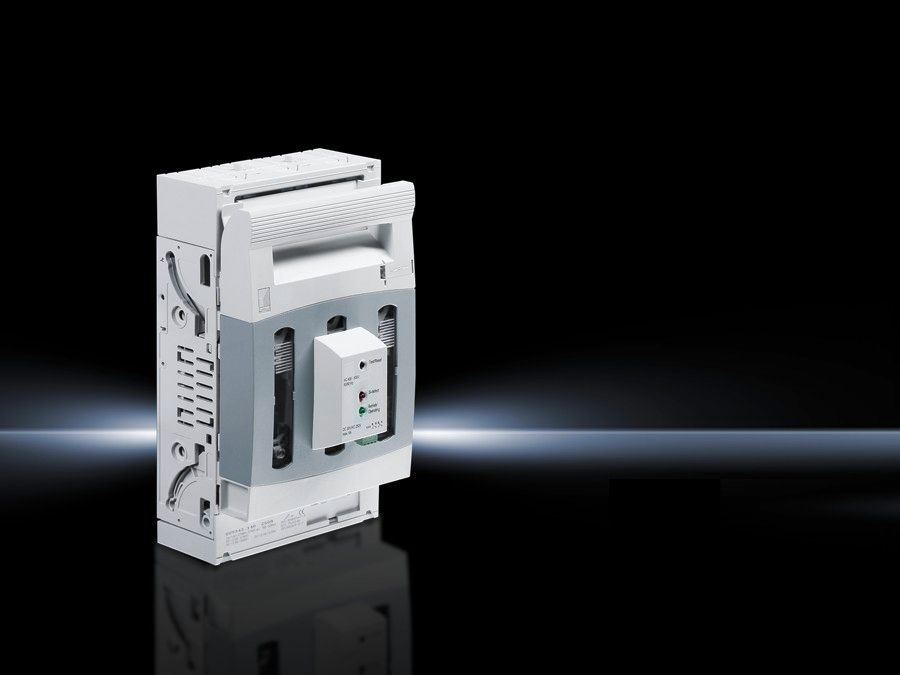

Rittal 9343130 SV NH fuse-switch disconnector, size 1, 250 A, 400-690 V, 3-pole, screw M10, with electronic fuse monitoring
|
310,24 EUR 324,08 EUR |
|||||||||||
|
incl. 2,33 EUR copper surcharge ( 369,19 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 124530 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 9343130 | ||||||||||
| UPC/EAN: | 4028177540354 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 9343130:
Fire protection corresponding to UL 94-V0
Contact tracks: Electrolytic copper, silver-plated
Colour: Chassis: RAL 7035
Cover: RAL 7035/7001
Basis of test: IEC/DIN EN 60 947-3
DIN EN 60 269-2 (fuse inserts)
Packs of: 1 pc(s).
EAN: 4028177540354
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27371401
ETIM 6.0: EC001040
Design: Size: 1
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 184 mm
Height: 298 mm
Type of electrical connection: Screw M10
Rated operating voltage: 400 V - 690 V, 3~
Clamping area for laminated copper bars: Width: 32 mm
Height: 10 mm
Connection for round conductor cross-sections: 10 mm² - 150 mm²
Rated operating current max.: 250 A
Cable outlet: Top/bottom
Weight/pack: 2.5 kg
Type: SV 9343.130
