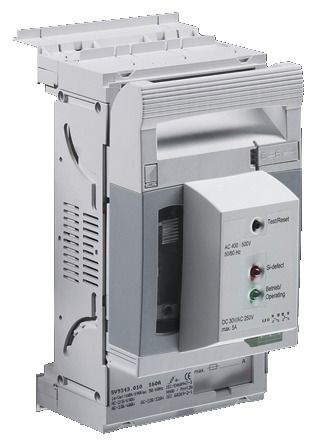

Rittal 9343030 SV NH fuse-switch disconnector, size 00, 160 A, 400-690 V, 3-pole, screw M8, with electronic fuse monitoring
|
164,10 EUR |
|
|
incl. 1,95 EUR copper surcharge ( 195,28 EUR incl. VAT ) ≈ £140.63 | ≈ $186.42 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: 5 pieces | |
| Lieske Part No.: | 974151 |
|---|---|
| Mfg Part No: | 9343030 |
| UPC/EAN: | 4028177540293 |
| Weight: | 1.029 kg |
| Type: | SV 9343030 |
Product information for Rittal 9343030:
Fire protection corresponding to UL 94-V0
Contact tracks: Electrolytic copper, silver-plated
Colour: Chassis: RAL 7035
Cover: RAL 7035/7001
Basis of test: IEC/DIN EN 60 947-3
DIN EN 60 269-2 (fuse inserts)
Packs of: 1 pc(s).
EAN: 4028177540293
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27371401
ETIM 6.0: EC001040
Design: Size: 00
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 106 mm
Height: 194 mm
Type of electrical connection: Screw M8
Rated operating voltage: 400 V - 690 V, 3~
Clamping area for laminated copper bars: Width: 20 mm
Height: 5 mm
Connection for round conductor cross-sections: 10 mm² - 95 mm²
Rated operating current max.: 160 A
Cable outlet: Top/bottom
Weight/pack: 1.03 kg
