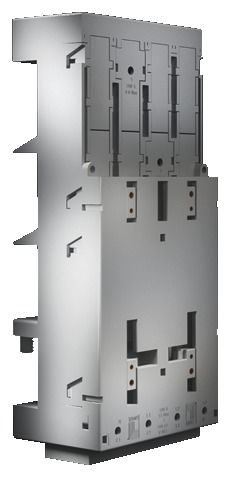

Rittal 9342504 SV Circuit-breaker component adaptor, 160 A, 690 V, 4-pole, cable outlet top, round conductor connection 35-120 mm², clamping area WH: 18,5x15,5 mm
|
-5% 67,98 EUR 71,42 EUR |
|||||||||||
|
incl. 1,32 EUR copper surcharge ( 80,90 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 396933 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 9342504 | ||||||||||
| UPC/EAN: | 4028177551756 | ||||||||||
| Weight: | 1.41 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 9342504:
Fire protection corresponding to UL 94-V0
Colour: RAL 7035
Supply includes: Terminal cover
Sliding blocks
Note: The technical data may vary for UL applications
Cable outlet: Switch outlet or as outgoing cable from the switchgear
Packs of: 1 pc(s).
EAN: 4028177551756
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27400613
ETIM 6.0: EC001531
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 4-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 120 mm
Height: 277 mm
Type of electrical connection: Box terminal
Rated operating voltage: 690 V, 4~
Clamping area for laminated copper bars: Width: 18.5 mm
Height: 15.5 mm
Connection for round conductor cross-sections: 35 mm² - 120 mm²
Rated current (max.): 160 A
Cable outlet: Top
Suitable for brand: Manufacturer (type): ABB (T1/160 A, T2/160 A)
Manufacturer (type): Eaton (NZM1-4/125 A, BZM E1-4/100 A)
Manufacturer (type): Schneider Electric (NSC100)
Weight/pack: 1.42 kg
Type: SV 9342.504
