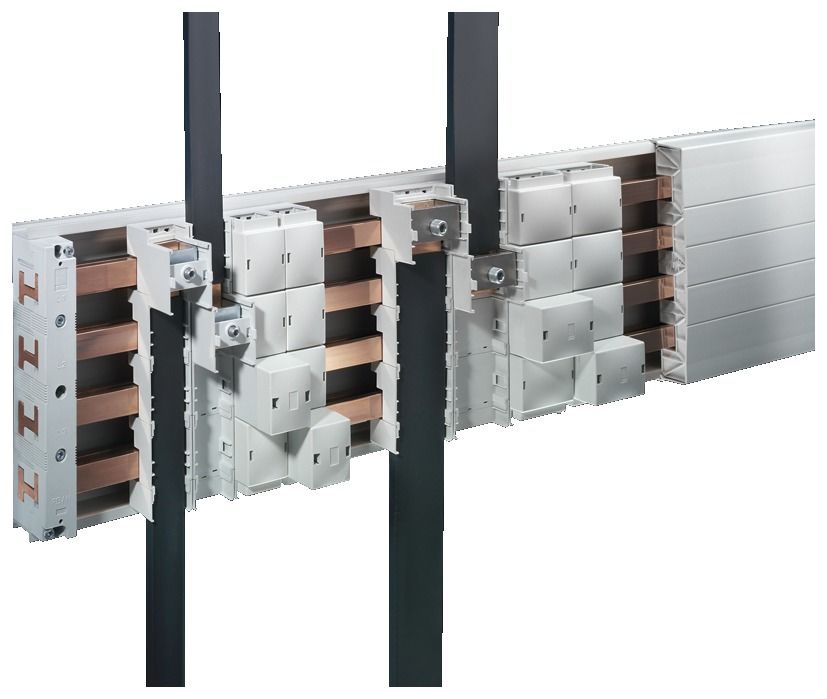

Rittal 9342324 SV Connection adaptor, 1600 A, 690 V, 1-pole, expansion set, for SV 9342320 (configuration 4-pole), clamping area WH: 65x22/27 mm
|
-12% 51,75 EUR 58,92 EUR |
|
|
( 61,58 EUR incl. VAT ) ≈ £44.40 | ≈ $59.98 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 908810 |
|---|---|
| Mfg Part No: | 9342324 |
| UPC/EAN: | 4028177536876 |
| Weight: | 0.123 kg |
Product information for Rittal 9342324:
Material: Cover: ABS
Chassis: Polyamide (PA 6.6).
Fire protection corresponding to UL 94-V0
Colour: RAL 7035
Note: The technical data may vary for UL applications
UL approval only applies in conjunction with AC application
Packs of: 1 pc(s).
EAN: 4028177536876
Customs tariff number: 85369010
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27370304
ETIM 6.0: EC001531
To fit: Model No.: 9342.320
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: Single-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 85 mm
Height: 270 mm
Rated operating voltage: 690 V, 1~
Clamping area for laminated copper bars: Width for busbar thickness 5 mm: 65 mm
Height with busbar thickness 5 mm: 27 mm
Width for busbar thickness 10 mm: 65 mm
Height with busbar thickness 10 mm: 22 mm
Rated current (max.): 1600 A
Weight/pack: 1.3 kg
Type: SV 9342324
