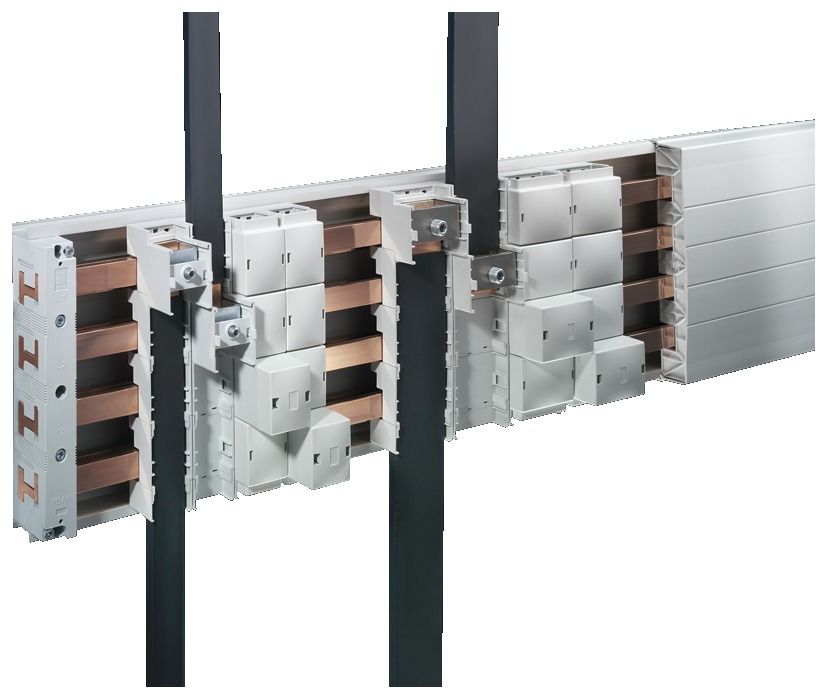

Rittal 9342314 SV Connection adaptor, 800 A, 690 V, 1-pole, expansion set
|
-6% 44,41 EUR 47,20 EUR |
|||||||||||
|
incl. 0,32 EUR copper surcharge ( 52,85 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 878368 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 9342314 | ||||||||||
| UPC/EAN: | 4028177536869 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 9342314:
Material: Cover: ABS
Chassis: Polyamide (PA 6.6).
Fire protection corresponding to UL 94-V0
Colour: RAL 7035
Note: The technical data may vary for UL applications
UL approval only applies in conjunction with AC application
Packs of: 1 pc(s).
EAN: 4028177536869
Customs tariff number: 85369010
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27370304
ETIM 6.0: EC001531
To fit: Model No.: 9342.310
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: Single-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 50 mm
Height: 270 mm
Rated operating voltage: 690 V, 1~
Clamping area for laminated copper bars: Width for busbar thickness 5 mm: 33 mm
Height with busbar thickness 5 mm: 26 mm
Width for busbar thickness 10 mm: 33 mm
Height with busbar thickness 10 mm: 21 mm
Connection for round conductor cross-sections: fine wire with wire end ferrule: 95 mm² - 185 mm²
multi-wire: 95 mm² - 300 mm²
Rated current (max.): 800 A
Weight/pack: 0.86 kg
Type: SV 9342.314
Questions & answers
What is the delivery time of Rittal 9342314 SV Connection adaptor, 800 A, 690 V, 1-pole, expansion set?
The article Rittal 9342314 SV Connection adaptor, 800 A, 690 V, 1-pole, expansion set is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9342314 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9342314 SV Connection adaptor, 800 A, 690 V, 1-pole, expansion set always at the best possible price. We can give you a discount of 2% on Rittal 9342314 SV Connection adaptor, 800 A, 690 V, 1-pole, expansion set if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of Rittal 9342314 SV Connection adaptor, 800 A, 690 V, 1-pole, expansion set we can offer you a price of 43,75 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
