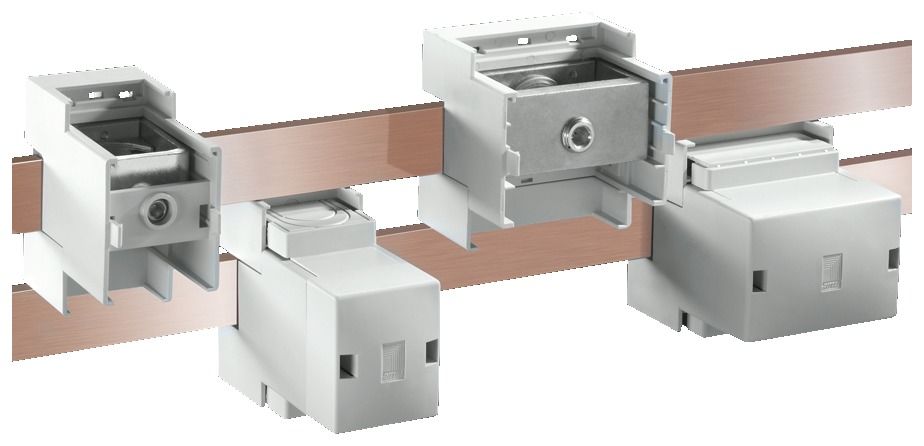

Rittal 9342311 SV Connection block, 800 A, 690 V, 1-pole, cable outet top/bottom, round conductor connection 90-300 mm², clamping area WH: 33x21/26 mm
|
-5% 75,78 EUR 80,02 EUR |
|||||||||||
|
incl. 1,06 EUR copper surcharge ( 90,18 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 186542 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 9342311 | ||||||||||
| UPC/EAN: | 4028177625259 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 9342311:
Material: Chassis: Polyamide (PA 6.6).
Cover: ABS
Fire protection corresponding to UL 94-V0
Colour: RAL 7035
Supply includes: 3 terminals including cover.
Note: When using the terminal on 2-pole busbar systems (SV 9340.040), the terminal must be rotated through 180° for connection to the PE busbar.
Packs of: 3 pc(s).
EAN: 4028177625259
Customs tariff number: 85369010
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27400613
ETIM 6.0: EC001900
Dimensions: Width: 50 mm
Height: 88 mm
Rated operating voltage: 690 V, 1~
Clamping area for laminated copper bars: Width for busbar thickness 5 mm: 33 mm
Height with busbar thickness 5 mm: 27 mm
Width for busbar thickness 10 mm: 33 mm
Height with busbar thickness 10 mm: 22 mm
Connection for round conductor cross-sections: fine wire with wire end ferrule: 95 mm² - 185 mm²
multi-wire: 95 mm² - 300 mm²
Rated current (max.): 800 A
Cable outlet: Top/bottom
Weight/pack: 1.43 kg
Type: SV 9342.311
Questions & answers
What is the delivery time of Rittal 9342311 SV Connection block, 800 A, 690 V, 1-pole, cable outet top/bottom, round conductor connection 90-300 mm², clamping area WH: 33x21/26 mm?
The article Rittal 9342311 SV Connection block, 800 A, 690 V, 1-pole, cable outet top/bottom, round conductor connection 90-300 mm², clamping area WH: 33x21/26 mm is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9342311 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9342311 SV Connection block, 800 A, 690 V, 1-pole, cable outet top/bottom, round conductor connection 90-300 mm², clamping area WH: 33x21/26 mm always at the best possible price. We can give you a discount of 2% on Rittal 9342311 SV Connection block, 800 A, 690 V, 1-pole, cable outet top/bottom, round conductor connection 90-300 mm², clamping area WH: 33x21/26 mm if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of Rittal 9342311 SV Connection block, 800 A, 690 V, 1-pole, cable outet top/bottom, round conductor connection 90-300 mm², clamping area WH: 33x21/26 mm we can offer you a price of 74,66 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
