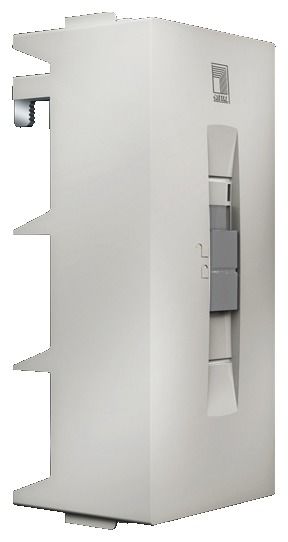

Rittal 9342270 SV Connection adaptor, 250 A, 690 V, 3-pole, cable outet bottom, round conductor connection 35-120 mm², clamping area WH: 18,5x15,5 mm
|
35,05 EUR 36,65 EUR |
|||||||||||
|
incl. 0,85 EUR copper surcharge ( 41,71 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: 5 pieces | |||||||||||
| Lieske Part No.: | 195814 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 9342270 | ||||||||||
| UPC/EAN: | 4028177503656 | ||||||||||
| Weight: | 0.69 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 9342270:
Chassis: Polyamide (PA 6.6).
Chassis 3439.010: Fibreglass-reinforced, thermoplastic polyester (PBT)
Fire protection corresponding to UL 94-V0
Chassis: Polyamide (PA 6.6).
Colour: RAL 7035
Note: The technical data may vary for UL applications
UL approval only applies in conjunction with AC application
The rated operating voltage for DC applications depends on the busbar arrangement in the busbar support 9340.050/9341.050/9342.050.
Packs of: 1 pc(s).
EAN: 4028177503656
Customs tariff number: 85369010
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27370304
ETIM 6.0: EC001531
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 90 mm
Height: 210 mm
Rated operating voltage: 690 V, 3~
Clamping area for laminated copper bars: Width: 18.5 mm
Height: 15.5 mm
Connection for round conductor cross-sections: fine wire with wire end ferrule: 35 mm² - 120 mm²
multi-wire: 35 mm² - 120 mm²
Rated current (max.): 250 A
Cable outlet: Bottom
Weight/pack: 0.7 kg
Type: SV 9342.270
Questions & answers
What is the delivery time of Rittal 9342270 SV Connection adaptor, 250 A, 690 V, 3-pole, cable outet bottom, round conductor connection 35-120 mm², clamping area WH: 18,5x15,5 mm?
The article Rittal 9342270 SV Connection adaptor, 250 A, 690 V, 3-pole, cable outet bottom, round conductor connection 35-120 mm², clamping area WH: 18,5x15,5 mm is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9342270 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9342270 SV Connection adaptor, 250 A, 690 V, 3-pole, cable outet bottom, round conductor connection 35-120 mm², clamping area WH: 18,5x15,5 mm always at the best possible price. We can give you a discount of 2% on Rittal 9342270 SV Connection adaptor, 250 A, 690 V, 3-pole, cable outet bottom, round conductor connection 35-120 mm², clamping area WH: 18,5x15,5 mm if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 15 pieces of Rittal 9342270 SV Connection adaptor, 250 A, 690 V, 3-pole, cable outet bottom, round conductor connection 35-120 mm², clamping area WH: 18,5x15,5 mm we can offer you a price of 34,02 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
