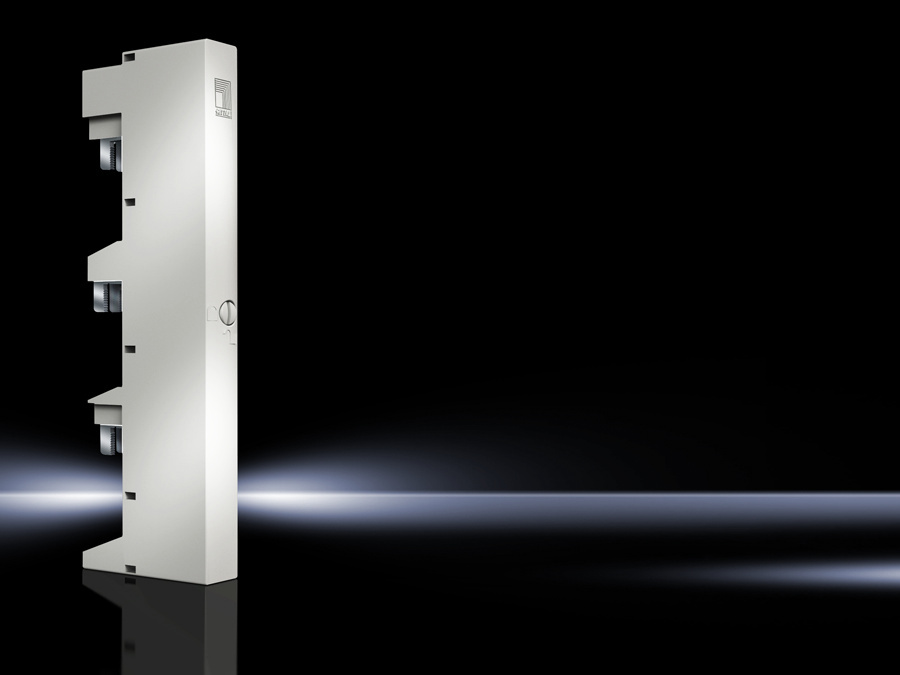

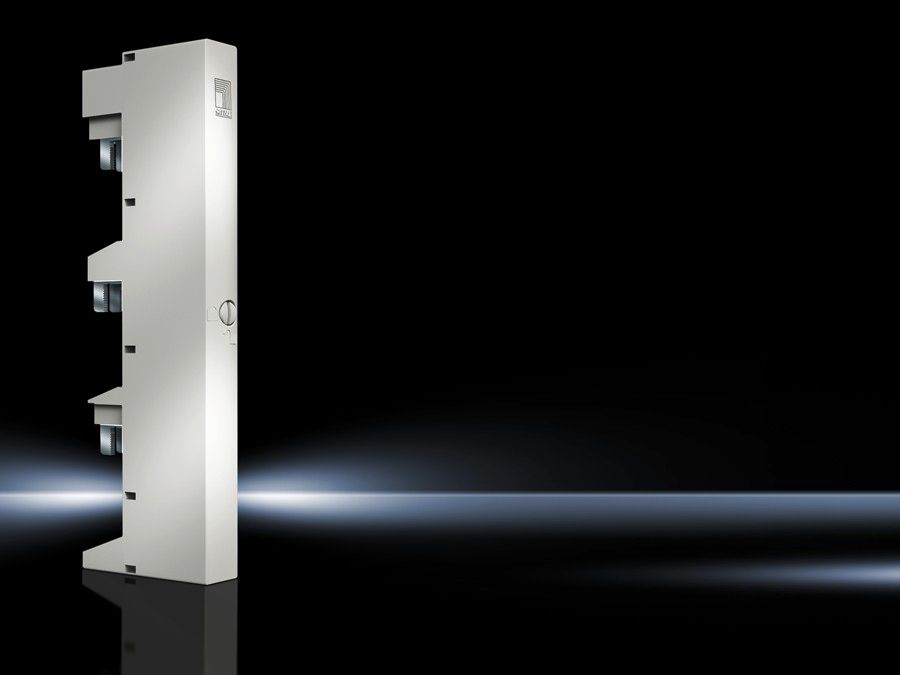

Rittal 9342200 Connection adapter 63 A, 3-pole, cable exit top
|
11,81 EUR 12,13 EUR |
|
|
incl. 0,19 EUR copper surcharge ( 14,05 EUR incl. VAT ) ≈ £9.90 | ≈ $13.14 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 864460 |
| Mfg Part No: | 9342200 |
| UPC/EAN: | 4028177503595 |
| Weight: | 0.206 kg |
| Type: | SV 9342200 |
Product information for Rittal 9342200:
Chassis: Polyamide (PA 6.6).
Chassis 3439.010: Fibreglass-reinforced, thermoplastic polyester (PBT)
Fire protection corresponding to UL 94-V0
Chassis: Polyamide (PA 6.6).
Colour: RAL 7035
Note: The technical data may vary for UL applications
UL approval only applies in conjunction with AC application
The rated operating voltage for DC applications depends on the busbar arrangement in the busbar support 9340.050/9341.050/9342.050.
Packs of: 1 pc(s).
EAN: 4028177503595
Customs tariff number: 85369010
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27370304
ETIM 6.0: EC001531
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 20 mm
Height: 215 mm
Rated operating voltage: 690 V, 3~
Connection for round conductor cross-sections: fine wire with wire end ferrule: 2.5 mm² - 10 mm²
multi-wire: 2.5 mm² - 10 mm²
Solid: 2.5 mm² - 10 mm²
Rated current (max.): 63 A
Cable outlet: Top
Weight/pack: 0.2 kg
