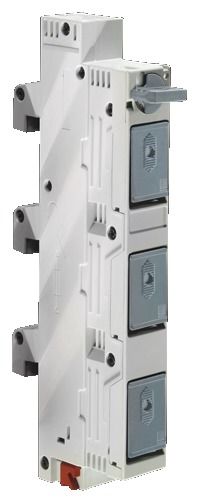

Rittal 9340950 SV Bus-mounting fuse base, D-Switch, 63 A, 400 V, 3-pole, round conductor connection 1,5-25 mm²
|
-6% 169,79 EUR 180,66 EUR |
|||||||||||
|
incl. 1,01 EUR copper surcharge ( 202,05 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: >10 pieces | |||||||||||
| Lieske Part No.: | 809281 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 9340950 | ||||||||||
| UPC/EAN: | 4028177603400 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 9340950:
Fire protection corresponding to UL 94-V0
Colour: Chassis: RAL 7035
Fuse holder: RAL 7001
Basis of test: IEC/DIN EN 60 947-3
Supply includes: Reducing retaining springs for D 01 and 10 x 38 mm fuses
Note: For the use of fuse inserts to EN 60 269-3 (DIN VDE 0636-301)
With integral visual fuse monitoring via flashing indicator and operating status display as well as cable routing for conductors up to 6 mm²
Packs of: 3 pc(s).
EAN: 4028177603400
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27371402
ETIM 6.0: EC001046
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 27 mm
Height: 226 mm
Type of electrical connection: Box terminal
Rated operating voltage: 400 V, 3~
Connection for round conductor cross-sections: 1.5 mm² - 25 mm²
Note: Wire end ferrules should be used with fine wire conductors.
Rated operating current max.: 63 A
Voltage range for indicator lights: 100 V - 400 V
Fuse inserts: D 01 (with retaining spring)
D 02 (with Neozed adaptor sleeve)
10 x 38 (with retaining spring)
Note: When using D01 and 10 x 38 mm fuses, reducing retaining springs must be used. Use of D 01 fuses optionally possible with adaptor sleeve for D 02 base/plinths.
Weight/pack: 1.16 kg
Type: SV 9340.950
