Rittal 9340780 OM-adapter 16 A, AWG12, 3-pole, W x H: 45x208 mm, TS45D content_copy

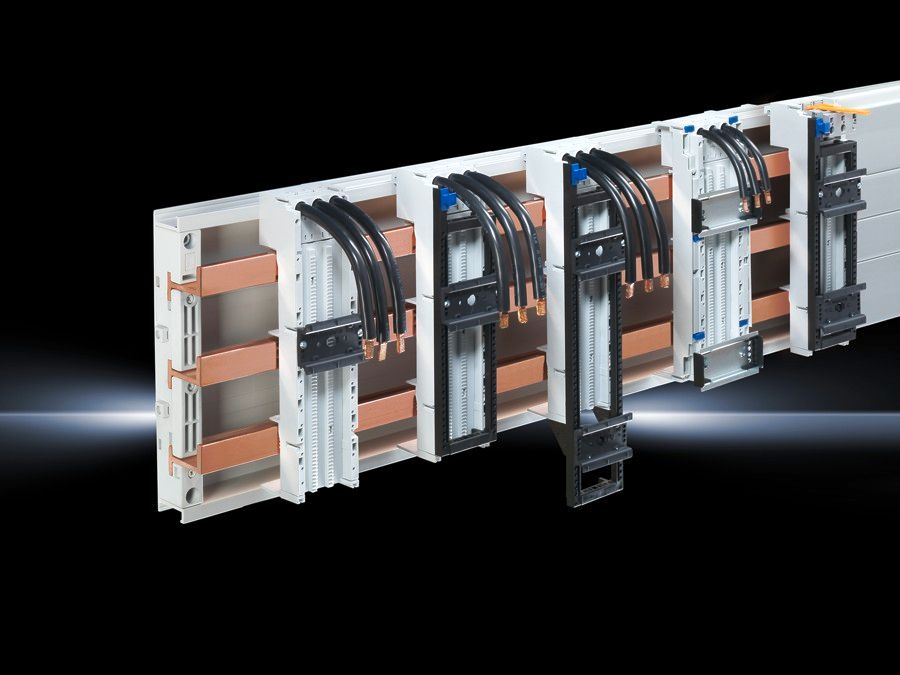

The Rittal SV 9340780 is an OM-adapter for use in industrial power distribution systems. It serves as a connecting element between terminal strips and support rails, particularly in enclosures with standard rail systems. The adapter is designed for a maximum rated current of 16 A and features a rated operating voltage of 690 V, 3~, making it suitable for applications in industrial electrical engineering. The design includes integrated connection leads in AWG size 12, with a length of 165 mm. The housing is made of polyamide with a flammability rating according to UL 94-V0, ensuring a high fire protection class and increased safety under thermal stress. The chassis color corresponds to RAL 7035, a gray standard tone commonly used in industrial electrical equipment.

Applications

The OM-adapter is specifically designed for use in enclosures based on the support rail systems TS 45D and TS 45D-V. It enables the secure mounting of terminal strips and other components onto support frames installed in enclosures with a center-to-center spacing of 60 mm. The dimensions of 45 mm width and 208 mm height match standard enclosure component sizes. The support rails are 10 mm in height, with two rails integrated per adapter. This allows mounting on busbars with heights of 5 mm or 10 mm, ensuring flexible integration into existing systems.

Functions and Equipment in Detail

The adapter is 3-pole, making it suitable for three-phase AC applications. The integrated AWG 12 connection leads provide sufficient cross-sectional area for the intended current flow and are designed for a secure electrical connection. The use of polyamide as material ensures high mechanical stability and resistance to environmental influences such as humidity or temperature fluctuations. The UL 94-V0 flammability rating is a quality feature that enhances operational safety, especially in environments with increased fire risk.

Technology Explained Simply

The electrical values for UL applications (SCCR) are specified to ensure safety under short-circuit conditions. The values cover various scenarios, such as 30 kA at 600 V with Fuse Class K5 up to max. 60 A, or 65 kA at 600 V with Fuse Class J up to max. 30 A. These specifications are relevant for planning protective circuits and selecting appropriate fuses. The note “The specified technical data may vary for UL applications” means that values may differ depending on specific application and certification, which must be considered during system planning. The support rail types TS 45D and TS 45D-V are standard profiles widely used in many industrial enclosure systems.

Compatibility and Accessories

The adapter is compatible with support frames and the support rails TS 45D and TS 45D-V. Suitable accessories include, among others, connecting pins for OM-adapters/carriers and terminal strips, support rails in various versions (e.g. TS45C, TS45M, TS45D-V), and terminal strips for OM-adapters. These components enable modular expansion and adaptation of the system to specific requirements. The use of standard profiles ensures high interoperability with other products from the manufacturer and the industry.

Mounting and Installation

Mounting is done by securing the adapter to a support frame mounted on the support rails TS 45D or TS 45D-V. The integrated connection leads simplify electrical connection, with a length of 165 mm providing sufficient flexibility for placement within the enclosure. The dimensions of 45 mm width and 208 mm height, along with support frame dimensions of 45 mm x 170 mm, match common enclosure sizes. Mounting requires no additional tools, as the support rails are standardly provided in enclosures.

Advantages in Operation

The use of the Rittal SV 9340780 provides a reliable and safe connection in industrial power distribution systems. The use of polyamide and the UL 94-V0 flammability rating increases safety. The integrated AWG 12 connection leads reduce installation time and enhance the reliability of the electrical connection. Compatibility with standard support rails (TS 45D, TS 45D-V) and modular design enable flexible and scalable system design. UL approvals guarantee compliance with international safety standards, which is relevant for use in various markets. The copper content of 0.038 kg per piece indicates the material composition, which may be relevant for recycling and environmental aspects.

The technical data are detailed in the product overview in the shop. The features described here correspond to manufacturer specifications and are relevant for planning and installing enclosure systems.

General
Model	with connection cable
Colour	Chassis: RAL 7035
Connection wires (AWG)	AWG 12
Rated current max.	16 A
Rated operating voltage	690 V, 3~
Note	The specified technical data may vary for UL applications
Electrical values UL (SCCR)	30 kA - 600 V, Fuse Class K5 max. 60 A, JDDZ/7, 50 kA - 600 V, Fuse Class K5 max. 35 A, JDDZ/7, 65 kA - 600 V, Fuse Class J max. 30 A, JDDZ/7, 65 kA - 600 V, Fuse Class K5 max. 30 A, JDDZ/7, 50 kA - 480 V, Combination Motor Controller max. 27 A, NKJH/7, 65 kA - 480 V, Combination Motor Controller max. 32 A, NKJH/7
For rail systems with centre spacing	60 mm
Connection cable length	165 mm
DIN rail type	Support frame, 1 x TS 45D, 1 x TS 45D-V
Number of poles	3-pole
Width	45 mm
Height	208 mm
DIN rail quantity/height	2 / 10 mm
Suitable for busbars	Height: 5, 10 mm
Frame (W x H)	45 mm x 170 mm
Approvals	UL
Copper content (kg/piece)	0,038

---
