Rittal 9340730 SV OM adaptor, 40 A, 690 V, 3-pole, connection cable AWG 8, WH: 55x272 mm, support frame, support rail TS 55D, TS 55-V

Name: Rittal 9340730 SV OM adaptor, 40 A, 690 V, 3-pole, connection cable AWG 8, WH: 55x272 mm, support frame, support rail TS 55D, TS 55-V
Brand: Rittal
SKU: 672707
Price: 843.85 EUR
Availability: InStock
Rating: 4.3 (78 reviews)

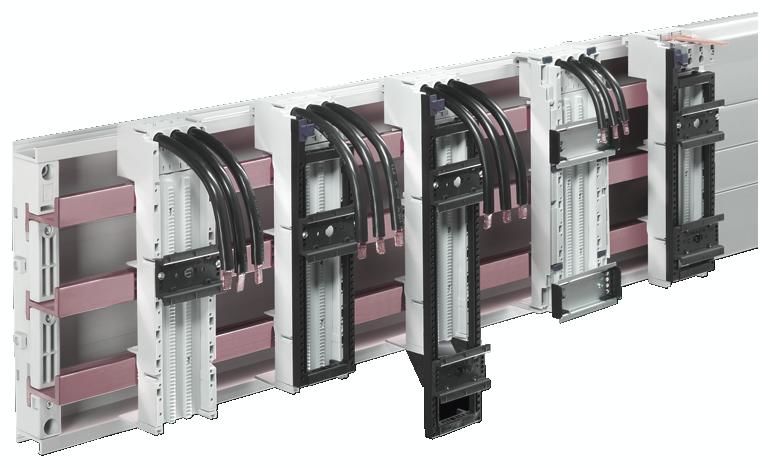

This image may differ from the desired article.

843,85 EUR
incl. 823,72 EUR copper surcharge ( 1.004,18 EUR incl. VAT ) ≈ £724.02 \| ≈ $978.02 plus delivery charges: 53,00 €

Delivery time from supplier's stock (ca.) 9 workdays
1x Rittal 9340730 SV OM adaptor, 40 A, 690 V, 3-pole, connection cable AWG 8, WH: 55x272 mm, support frame, support rail TS 55D, TS 55-V 1.004,18 €
Printing view Bookmark Wholesale Inquiry
Lieske Part No.:	672707
Mfg Part No:	9340730
UPC/EAN:	4028177664258
Weight:	0.123 kg

Further Power distribution components from Rittal Further products in category Power distribution components All products of Rittal

Product information for Rittal 9340730:

Material: Polyamide (PA 6.6)
Fire protection corresponding to UL 94-V0
Colour: Chassis: RAL 7035
Note: The technical data may vary for UL applications
Packs of: 1 pc(s).
EAN: 4028177664258
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27370304
ETIM 6.0: EC001531

To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 55 mm
Height: 272 mm
Rated operating voltage: 690 V, 3~
Connection cable: Cross-section: AWG 8
Length: 130 mm
Support frame: Width: 55 mm
Height: 237 mm
Rated current (max.): 40 A
Number of support rails: 2
Height of support rails: 10 mm
Support rail type: TS 55D
TS 55D-V
Support frame support: yes
Weight/pack: 0.38 kg
Type: SV 9340730

Please note...

This article contains a copper surcharge of 823,72 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
