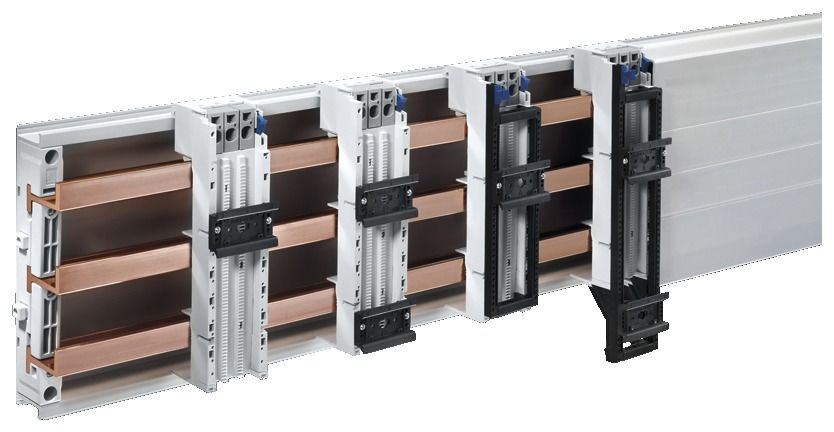

Rittal 9340630 SV OM adaptor, 65 A, 690 V, 3-pole, tension spring clamp 2,5-16 mm², WH: 55x208 mm, support frame, support rail TS 55E
|
569,57 EUR |
|
|
incl. 552,26 EUR copper surcharge ( 677,79 EUR incl. VAT ) ≈ £488.69 | ≈ $660.13 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Lieske Part No.: | 306428 |
|---|---|
| Mfg Part No: | 9340630 |
| UPC/EAN: | 4028177502666 |
| Weight: | 0.321 kg |
Further Power distribution components from RittalFurther products in category Power distribution components
All products of Rittal
Product information for Rittal 9340630:
Material: Polyamide (PA 6.6)
Fire protection corresponding to UL 94-V0
Colour: Chassis: RAL 7035
Note on Model No.: According to a heat dissipation test to IEC 60 439-1, a current carrying capacity of up to 80 A is supported.
Packs of: 1 pc(s).
EAN: 4028177502666
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27370304
ETIM 6.0: EC001531
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 55 mm
Height: 208 mm
Rated operating voltage: 690 V, 3~
Connection for round conductor cross-sections: 2.5 mm² - 16 mm²
Support frame: Width: 55 mm
Height: 170 mm
Rated current (max.): 65 A
Number of support rails: 1
Height of support rails: 10 mm
Support rail type: TS 55E
Weight/pack: 0.32 kg
Type: SV 9340630
Fire protection corresponding to UL 94-V0
Colour: Chassis: RAL 7035
Note on Model No.: According to a heat dissipation test to IEC 60 439-1, a current carrying capacity of up to 80 A is supported.
Packs of: 1 pc(s).
EAN: 4028177502666
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27370304
ETIM 6.0: EC001531
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 55 mm
Height: 208 mm
Rated operating voltage: 690 V, 3~
Connection for round conductor cross-sections: 2.5 mm² - 16 mm²
Support frame: Width: 55 mm
Height: 170 mm
Rated current (max.): 65 A
Number of support rails: 1
Height of support rails: 10 mm
Support rail type: TS 55E
Weight/pack: 0.32 kg
Type: SV 9340630
Please note...
This article contains a copper surcharge of 552,26 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Questions & answers
What is the delivery time of Rittal 9340630 SV OM adaptor, 65 A, 690 V, 3-pole, tension spring clamp 2,5-16 mm², WH: 55x208 mm, support frame, support rail TS 55E?
The article Rittal 9340630 SV OM adaptor, 65 A, 690 V, 3-pole, tension spring clamp 2,5-16 mm², WH: 55x208 mm, support frame, support rail TS 55E is currently in stock
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9340630 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9340630 SV OM adaptor, 65 A, 690 V, 3-pole, tension spring clamp 2,5-16 mm², WH: 55x208 mm, support frame, support rail TS 55E always at the best possible price. We can give you a discount of 2% on Rittal 9340630 SV OM adaptor, 65 A, 690 V, 3-pole, tension spring clamp 2,5-16 mm², WH: 55x208 mm, support frame, support rail TS 55E if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
