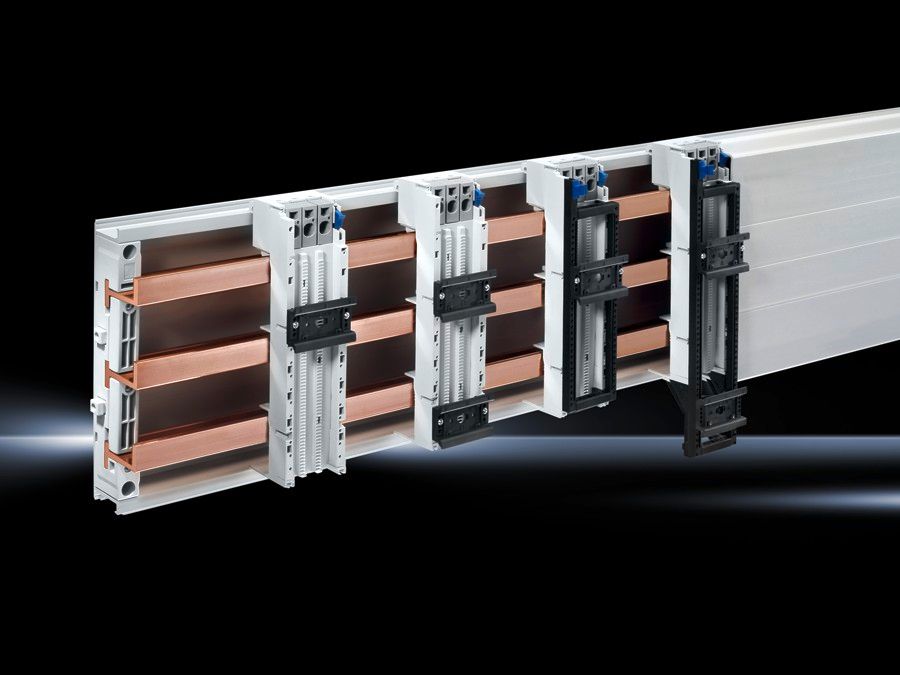

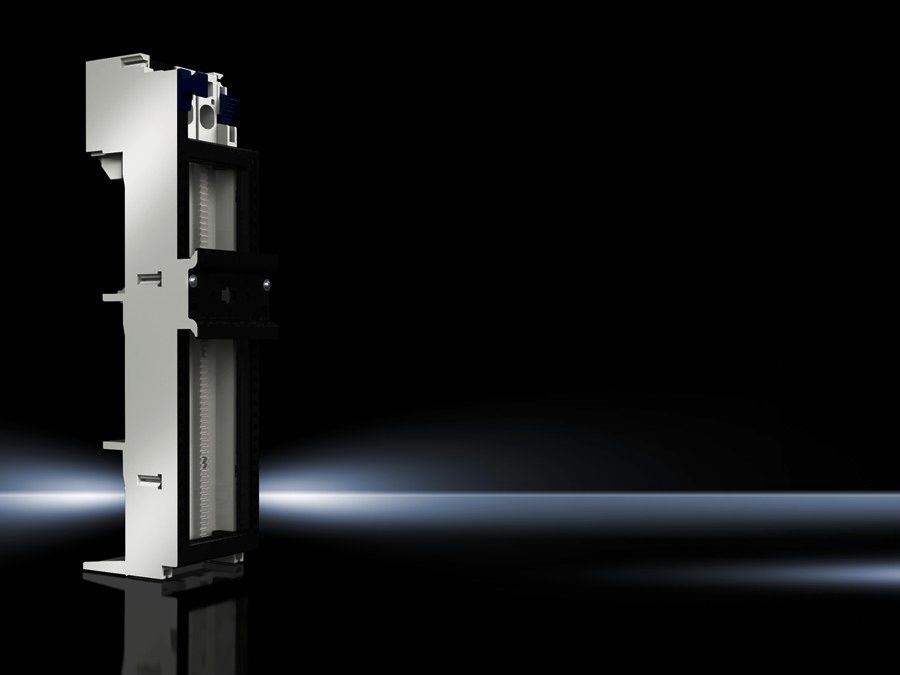

Rittal 9340630 OM-adapter 65 A, 3-pole, 55x208 mm, TS55E, carrier
|
17,14 EUR |
|
|
incl. 0,59 EUR copper surcharge ( 20,40 EUR incl. VAT ) ≈ £14.43 | ≈ $19.25 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 306428 |
| Mfg Part No: | 9340630 |
| UPC/EAN: | 4028177502666 |
| Weight: | 0.33 kg |
| Type: | SV 9340630 |
Further Power distribution components from RittalFurther products in category Power distribution components
All products of Rittal
Product information for Rittal 9340630:
Material: Polyamide (PA 6.6)
Fire protection corresponding to UL 94-V0
Colour: Chassis: RAL 7035
Note on Model No.: According to a heat dissipation test to IEC 60 439-1, a current carrying capacity of up to 80 A is supported.
Packs of: 1 pc(s).
EAN: 4028177502666
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27370304
ETIM 6.0: EC001531
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 55 mm
Height: 208 mm
Rated operating voltage: 690 V, 3~
Connection for round conductor cross-sections: 2.5 mm² - 16 mm²
Support frame: Width: 55 mm
Height: 170 mm
Rated current (max.): 65 A
Number of support rails: 1
Height of support rails: 10 mm
Support rail type: TS 55E
Weight/pack: 0.32 kg
Fire protection corresponding to UL 94-V0
Colour: Chassis: RAL 7035
Note on Model No.: According to a heat dissipation test to IEC 60 439-1, a current carrying capacity of up to 80 A is supported.
Packs of: 1 pc(s).
EAN: 4028177502666
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27370304
ETIM 6.0: EC001531
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 55 mm
Height: 208 mm
Rated operating voltage: 690 V, 3~
Connection for round conductor cross-sections: 2.5 mm² - 16 mm²
Support frame: Width: 55 mm
Height: 170 mm
Rated current (max.): 65 A
Number of support rails: 1
Height of support rails: 10 mm
Support rail type: TS 55E
Weight/pack: 0.32 kg
Please note...
This article contains a copper surcharge of 0,59 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
