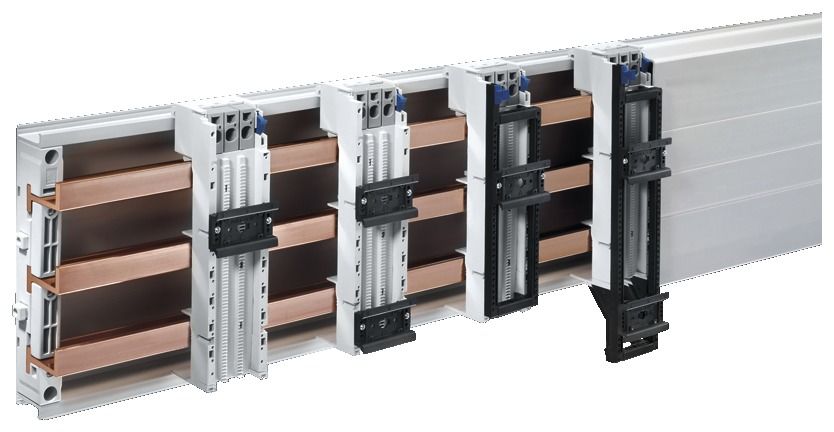

Rittal 9340560 SV OM adaptor, 32 A, 690 V, 3-pole, tension spring clamp 1,5-6 mm², WH: 45x272 mm, support frame, support rail TS 45D, TS 45D-V
|
271,26 EUR |
|
|
incl. 252,73 EUR copper surcharge ( 322,80 EUR incl. VAT ) ≈ £232.74 | ≈ $314.39 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Lieske Part No.: | 257332 |
|---|---|
| Mfg Part No: | 9340560 |
| UPC/EAN: | 4028177664234 |
| Weight: | 0.123 kg |
Further Power distribution components from RittalFurther products in category Power distribution components
All products of Rittal
Product information for Rittal 9340560:
Material: Polyamide (PA 6.6)
Fire protection corresponding to UL 94-V0
Colour: Chassis: RAL 7035
Packs of: 1 pc(s).
EAN: 4028177664234
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27370304
ETIM 6.0: EC001531
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 45 mm
Height: 272 mm
Rated operating voltage: 690 V, 3~
Connection for round conductor cross-sections: 1.5 mm² - 6 mm²
Support frame: Width: 45 mm
Height: 237 mm
Rated current (max.): 32 A
Number of support rails: 2
Height of support rails: 10 mm
Support rail type: TS 45D
TS 45D-V
Support frame support: yes
Weight/pack: 0.3 kg
Type: SV 9340560
Fire protection corresponding to UL 94-V0
Colour: Chassis: RAL 7035
Packs of: 1 pc(s).
EAN: 4028177664234
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27370304
ETIM 6.0: EC001531
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 45 mm
Height: 272 mm
Rated operating voltage: 690 V, 3~
Connection for round conductor cross-sections: 1.5 mm² - 6 mm²
Support frame: Width: 45 mm
Height: 237 mm
Rated current (max.): 32 A
Number of support rails: 2
Height of support rails: 10 mm
Support rail type: TS 45D
TS 45D-V
Support frame support: yes
Weight/pack: 0.3 kg
Type: SV 9340560
Please note...
This article contains a copper surcharge of 252,73 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
