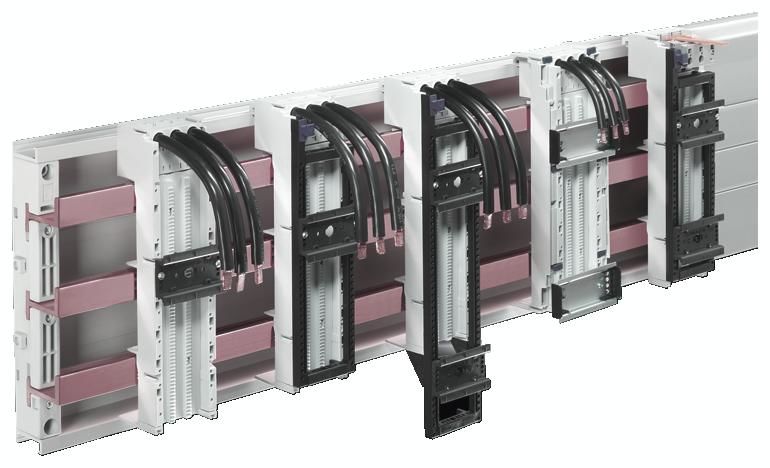

Rittal 9340450 SV OM adaptor, 65 A, 690 V, 3-pole, connection cable AWG 6, WH: 55x272 mm, support frame, support rail TS 55E, TS 55D-V
|
20,45 EUR |
|
|
incl. 1,13 EUR copper surcharge ( 24,34 EUR incl. VAT ) ≈ £17.53 | ≈ $23.23 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 187336 |
| Mfg Part No: | 9340450 |
| UPC/EAN: | 4028177502550 |
| Weight: | 0.405 kg |
| Type: | SV 9340450 |
Product information for Rittal 9340450:
Fire protection corresponding to UL 94-V0
Colour: Chassis: RAL 7035
Note: The technical data may vary for UL applications
Packs of: 1 pc(s).
EAN: 4028177502550
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27370304
ETIM 6.0: EC001531
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 55 mm
Height: 272 mm
Rated operating voltage: 690 V, 3~
Connection cable: Cross-section: AWG 6
Length: 130 mm
Support frame: Width: 55 mm
Height: 237 mm
Rated current (max.): 65 A
Number of support rails: 2
Height of support rails: 10 mm
Support rail type: TS 55E
TS 55D-V
Support frame support: yes
Weight/pack: 0.4 kg
