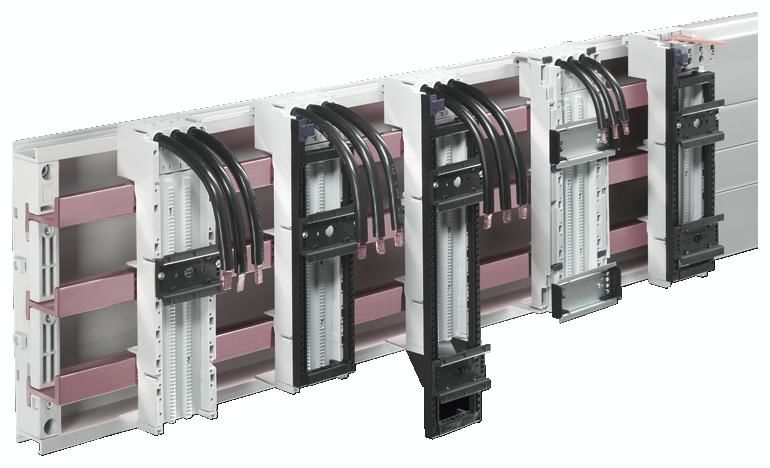

Rittal 9340400 SV OM adaptor, 25 A, 690 V, 3-pole, connection cable AWG 12, WH: 90x208 mm, support frame, support rail TS 45D, 2xTS 45D-V
|
366,41 EUR |
|
|
incl. 336,97 EUR copper surcharge ( 436,03 EUR incl. VAT ) ≈ £314.38 | ≈ $424.67 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 719425 |
|---|---|
| Mfg Part No: | 9340400 |
| UPC/EAN: | 4028177673830 |
| Weight: | 0.123 kg |
Further Power distribution components from RittalFurther products in category Power distribution components
All products of Rittal
Product information for Rittal 9340400:
Material: Polyamide (PA 6.6)
Fire protection corresponding to UL 94-V0
Colour: Chassis: RAL 7035
Note: The technical data may vary for UL applications
Packs of: 1 pc(s).
EAN: 4028177673830
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27370304
ETIM 6.0: EC001531
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 90 mm
Height: 208 mm
Rated operating voltage: 690 V, 3~
Connection cable: Cross-section: AWG 12
Length: 130 mm
Support frame: Width: 45 mm
Height: 170 mm
Rated current (max.): 25 A
Number of support rails: 3
Height of support rails: 10 mm
Support rail type: TS 45D
TS 45D-V
Weight/pack: 0.5 kg
Type: SV 9340400
Fire protection corresponding to UL 94-V0
Colour: Chassis: RAL 7035
Note: The technical data may vary for UL applications
Packs of: 1 pc(s).
EAN: 4028177673830
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27370304
ETIM 6.0: EC001531
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 90 mm
Height: 208 mm
Rated operating voltage: 690 V, 3~
Connection cable: Cross-section: AWG 12
Length: 130 mm
Support frame: Width: 45 mm
Height: 170 mm
Rated current (max.): 25 A
Number of support rails: 3
Height of support rails: 10 mm
Support rail type: TS 45D
TS 45D-V
Weight/pack: 0.5 kg
Type: SV 9340400
Please note...
This article contains a copper surcharge of 336,97 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Questions & answers
What is the delivery time of Rittal 9340400 SV OM adaptor, 25 A, 690 V, 3-pole, connection cable AWG 12, WH: 90x208 mm, support frame, support rail TS 45D, 2xTS 45D-V?
The article Rittal 9340400 SV OM adaptor, 25 A, 690 V, 3-pole, connection cable AWG 12, WH: 90x208 mm, support frame, support rail TS 45D, 2xTS 45D-V is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9340400 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9340400 SV OM adaptor, 25 A, 690 V, 3-pole, connection cable AWG 12, WH: 90x208 mm, support frame, support rail TS 45D, 2xTS 45D-V always at the best possible price. We can give you a discount of 2% on Rittal 9340400 SV OM adaptor, 25 A, 690 V, 3-pole, connection cable AWG 12, WH: 90x208 mm, support frame, support rail TS 45D, 2xTS 45D-V if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
Fitting accessory for Rittal 9340400 SV OM adaptor, 25 A, 690 V, 3-pole, connection cable AWG 12, WH: 90x208 mm, support frame, support rail TS 45D, 2xTS 45D-V
 |
Rittal 9342820 SV PinBlock Plus, for starters with increased contactor attachment, for OM adaptor
Mounted by simply clipping onto the PinBlock 9342.800/.810. Material: Polyamide (PA 6.6) Colour: RAL 9005 Note: UL approval in conjunction with OM adaptor/support. Packs of: 5 pc(s). EAN: ... Lieske Part No.: 277708 Mfg Part No: 9342820 Type: SV 9342820 |
-12% 3,15 EUR 3,56 EUR
 ≈ £2.70 | ≈ $3.65
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Rittal 9342850 SV Support rail 35x10 mm, W: 45 mm, version TS 45C
For attaching to the adaptor section and support frame. Material: Polyamide (PA 6.6) Colour: RAL 9005 Supply includes: Assembly screws Note: UL approval in conjunction with OM adaptor/support. Support ... Lieske Part No.: 328435 Mfg Part No: 9342850 Type: SV 9342850 |
-11% 3,24 EUR 3,65 EUR
≈ £2.78 | ≈ $3.76
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Rittal 9342800 SV PinBlock, for OM adaptor, for support frame W: 45 mm
For reliable attachment and positioning of the contactor on motor starter combinations, Simple clip-on mounting onto the support frame. Individual vertical positioning is achieved by relocating the ... Lieske Part No.: 358102 Mfg Part No: 9342800 Type: SV 9342800 |
-12% 3,55 EUR 4,02 EUR
≈ £3.05 | ≈ $4.11
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Rittal 9342870 SV Support rail 35x10 mm, W: 45 mm, version TS 45D-V
For attaching to the adaptor section and support frame. Material: Polyamide (PA 6.6) Colour: RAL 9005 Supply includes: Assembly screws Note: UL approval in conjunction with OM adaptor/support. Support ... Lieske Part No.: 358620 Mfg Part No: 9342870 Type: SV 9342870 |
-5% 7,25 EUR 7,64 EUR
≈ £6.22 | ≈ $8.40
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Rittal 9342880 SV Support rail 35x15 mm, W: 45 mm, sheet steel
For attaching to the adaptor section. Material: Sheet steel Surface finish: Zinc-plated Supply includes: Assembly screws and side anti-slip guard. Packs of: 5 pc(s). EAN: 4028177503939 Customs tariff ... Lieske Part No.: 416021 Mfg Part No: 9342880 Type: SV 9342880 |
-12% 16,91 EUR 19,25 EUR
≈ £14.51 | ≈ $19.60
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Rittal 9342860 SV Support rail 35x10 mm, W: 45 mm, version TS 45D
For attaching to the adaptor section and support frame. Material: Polyamide (PA 6.6) Colour: RAL 9005 Supply includes: Assembly screws Note: UL approval in conjunction with OM adaptor/support. Support ... Lieske Part No.: 535518 Mfg Part No: 9342860 Type: SV 9342860 |
3,93 EUR 4,10 EUR
≈ £3.37 | ≈ $4.55
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
|
