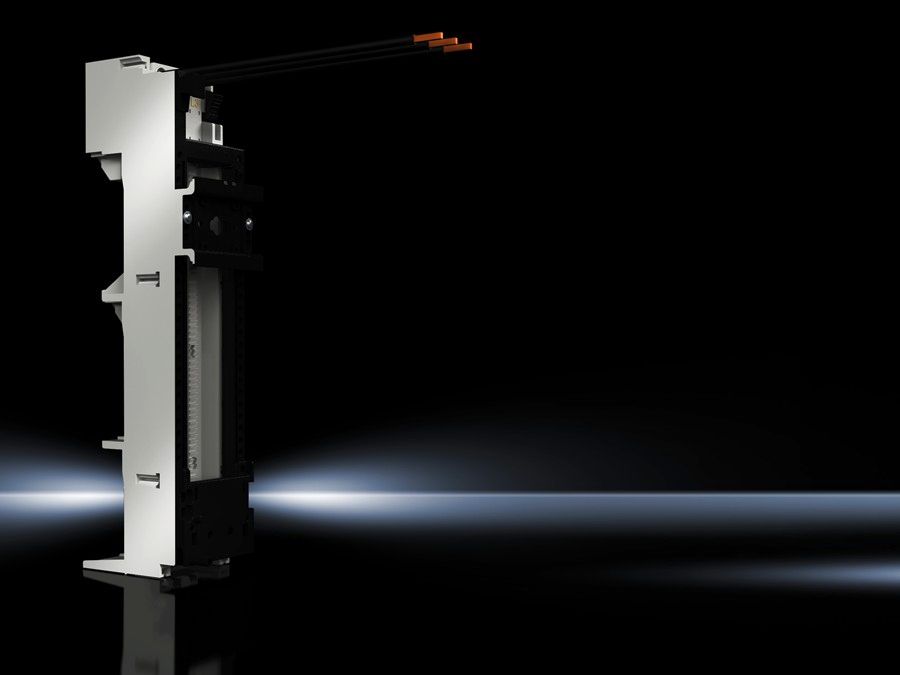

Rittal 9340370 OM-adapter 25A, AWG12, 3-pole, 45x208 mm, TS45C
|
16,68 EUR |
|
|
incl. 0,36 EUR copper surcharge ( 19,85 EUR incl. VAT ) ≈ £14.04 | ≈ $18.73 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 872039 |
| Mfg Part No: | 9340370 |
| UPC/EAN: | 4028177502529 |
| Weight: | 0.28 kg |
| Type: | SV 9340370 |
Product information for Rittal 9340370:
Material: Polyamide (PA 6.6)
Fire protection corresponding to UL 94-V0
Colour: Chassis: RAL 7035
Note: The technical data may vary for UL applications
Packs of: 1 pc(s).
EAN: 4028177502529
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27370304
ETIM 6.0: EC001531
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 45 mm
Height: 208 mm
Rated operating voltage: 690 V, 3~
Connection cable: Cross-section: AWG 12
Length: 130 mm
Support frame: Width: 45 mm
Height: 170 mm
Rated current (max.): 25 A
Number of support rails: 1
Height of support rails: 10 mm
Support rail type: TS 45C
PinBlock: yes
Weight/pack: 0.28 kg
Fire protection corresponding to UL 94-V0
Colour: Chassis: RAL 7035
Note: The technical data may vary for UL applications
Packs of: 1 pc(s).
EAN: 4028177502529
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27370304
ETIM 6.0: EC001531
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 45 mm
Height: 208 mm
Rated operating voltage: 690 V, 3~
Connection cable: Cross-section: AWG 12
Length: 130 mm
Support frame: Width: 45 mm
Height: 170 mm
Rated current (max.): 25 A
Number of support rails: 1
Height of support rails: 10 mm
Support rail type: TS 45C
PinBlock: yes
Weight/pack: 0.28 kg
Please note...
This article contains a copper surcharge of 0,36 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Questions & answers
What is the delivery time of Rittal 9340370 OM-adapter 25A, AWG12, 3-pole, 45x208 mm, TS45C?
The article Rittal 9340370 OM-adapter 25A, AWG12, 3-pole, 45x208 mm, TS45C is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9340370 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9340370 OM-adapter 25A, AWG12, 3-pole, 45x208 mm, TS45C always at the best possible price. We can give you a discount of 2% on Rittal 9340370 OM-adapter 25A, AWG12, 3-pole, 45x208 mm, TS45C if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
