Rittal 9340340 OM-adapter with connection cables content_copy

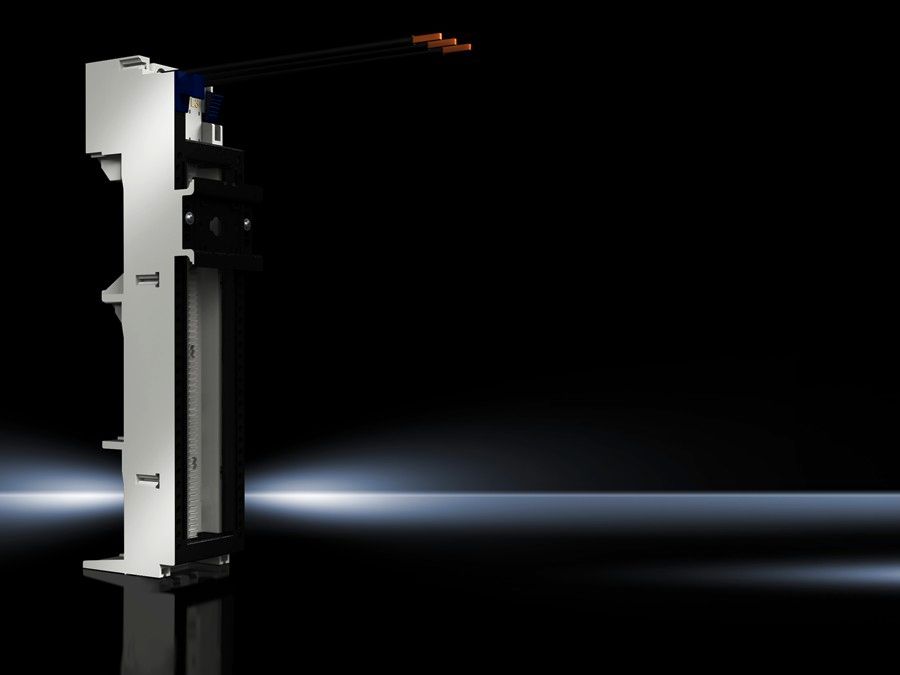

The Rittal SV 9340340 is an OM-adapter with connection cable, specifically designed for use in industrial power distribution systems. It serves as a transition component between busbars and electrical modules, particularly in enclosures using the Rittal RiLine60 system. The device is rated for a maximum nominal current of 25 A and has a nominal operating voltage of 690 V, 3~, making it suitable for applications in the medium voltage range. The version with connection cable enables direct electrical connection, with cables having a cross-section of AWG 12 (approximately 4 mm²) and a length of 130 mm. The enclosure is made of polyamide (PA 6.6), which is flame-retardant according to UL 94-V0, ensuring high safety under thermal stress. The chassis color is RAL 7035, a standard gray-beige tone in industrial applications.

Applications

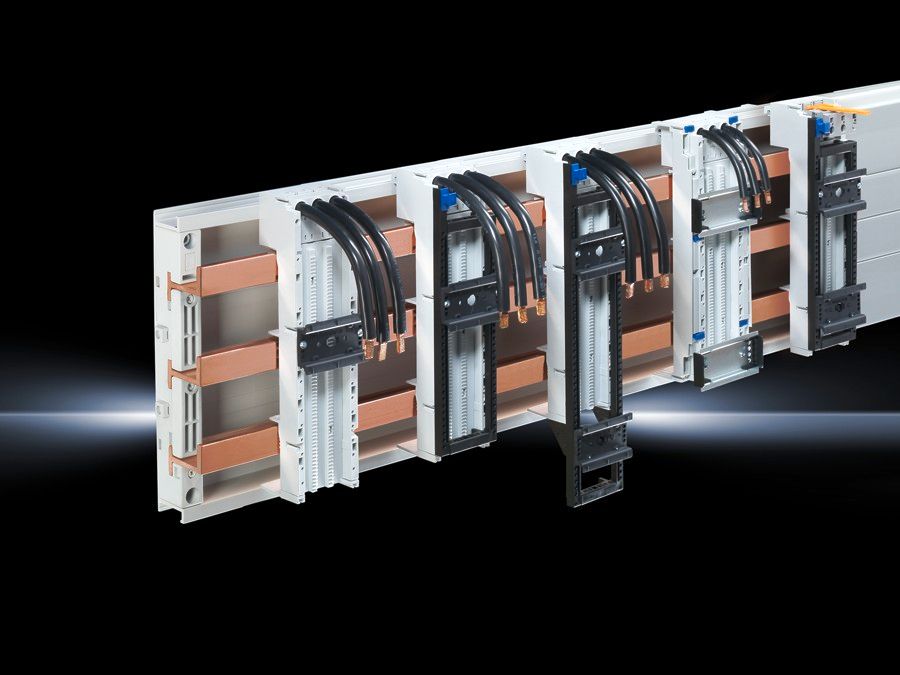

The OM-adapter is used in industrial electrical installations, particularly in enclosures where secure and reliable power distribution is required. It is designed for rail systems with a center distance of 60 mm and is compatible with busbars having a cross-sectional height of 5 mm or 10 mm. Its use in systems such as PLS 800 or PLS 1600 is also intended, making it suitable for standard installations in manufacturing and automation technology.

Functions and Features in Detail
The adapter features a carrier frame with dimensions 45 mm x 170 mm, enabling secure mounting on a TS 45C mounting rail. The rail includes a sliding protection feature to prevent unintended movement during operation. The number of poles is 3-pole, typical for use in three-phase AC systems. The connection cables are pre-integrated, eliminating the need for additional cable connections. The maximum current rating of 25 A and voltage withstand of 690 V make the adapter suitable for a wide range of industrial applications.

Technology Explained Simply
The combination of polyamide material and flame-retardant properties according to UL 94-V0 ensures high thermal and mechanical stability. The connection cables with AWG 12 provide sufficient conductivity for the maximum rated current of 25 A. The length of 130 mm allows flexible positioning within the enclosure without requiring additional cable extensions. Mounting is done via the carrier frame onto a TS 45C rail, which is standard in many industrial enclosure systems.

Compatibility and Accessories
The adapter is compatible with busbars in heights of 5 mm and 10 mm. Available accessories include various mounting rails such as TS45D, TS45D-V, TS45C, and TS45M, all with a width of 45 mm. Additionally, a Pinblock45 is available, designed for carrier frames with 45 mm width. These components allow flexible adaptation to different enclosure configurations.

Installation and Mounting
Mounting is done by securing the carrier frame to a TS 45C mounting rail. The rail is inserted into the rail system, ensuring a center distance of 60 mm. The adapter is then positioned on the rail and secured. The connection cables are pre-installed, so no additional cable connections are required. Installation is tool-free, as the mounting rail includes sliding protection.

Operational Advantages
The Rittal OM-adapter provides reliable and safe power distribution in industrial facilities. The integrated connection cables reduce installation time and minimize error sources. The use of polyamide with flame-retardant properties increases operational safety. Compatibility with various busbar heights and rail systems enhances flexibility in planning and installing enclosures. The UL certification (including C-UL) ensures compliance with international safety standards, especially in applications requiring UL compliance. The note that technical data may vary for UL applications means that exact values must be verified in the respective certification document for specific UL approvals.

Delivery Note
The delivery includes only the OM-adapter with integrated connection cables. No additional components such as extra mounting rails, pin blocks, or tools are included. The weight specifications (net weight 0.27 kg, gross weight 0.28 kg) and packaging unit (1 piece) are separately noted in the product master data and are not part of the product description.

Additional Technical Specifications
The electrical values according to UL (SCCR) cover various scenarios, including 30 kA to 65 kA at 600 V and 480 V, depending on the fuse class used (e.g., Fuse Class K5, J, Combination Motor Controller). These values are relevant for fuse selection and switchgear dimensioning. The references JDDZ/17,8 cm ( 7 inch ) and "NKJH/17,8 cm ( 7 inch ) relate to specific UL test conditions and categories considered during certification. The specification "Copper content 0.036 kg/unit is a material specification and not part of the functional description.

Summary of Key Terms

• OM-adapter: Transition component between busbars and modules
• 25 A: Maximum rated current
• 690 V, 3~: Rated operating voltage
• AWG 12: Cross-section of connection cables
• UL 94-V0: Flame-retardant property of the material
• TS 45C: Type of mounting rail

Technical data are listed separately in the product table of the shop. The values mentioned here serve to explain the benefits and functionality of the product.
