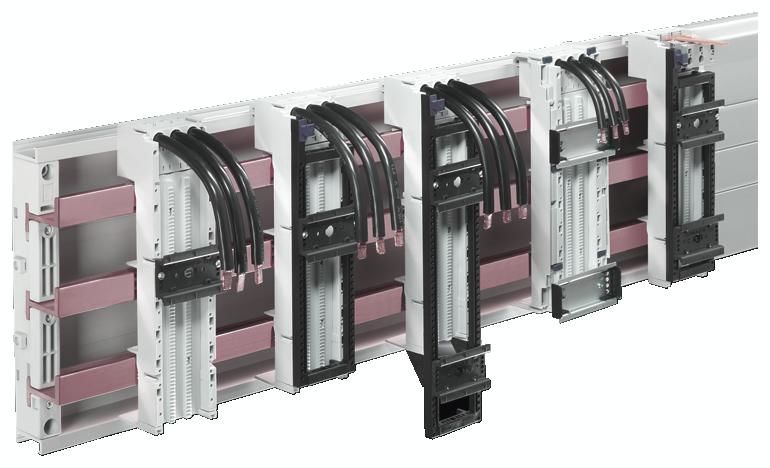

Rittal 9340320 SV OM adaptor, 25 A, 690 V, 3-pole, connection cable AWG 12, WH: 45x208 mm, support rail 2xTS 45D
|
354,04 EUR |
|
|
incl. 336,97 EUR copper surcharge ( 421,31 EUR incl. VAT ) ≈ £303.77 | ≈ $410.33 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: 3 pieces | |
| Lieske Part No.: | 737231 |
|---|---|
| Mfg Part No: | 9340320 |
| UPC/EAN: | 4028177673823 |
| Weight: | 0.123 kg |
Product information for Rittal 9340320:
Fire protection corresponding to UL 94-V0
Colour: Chassis: RAL 7035
Note: The technical data may vary for UL applications
Packs of: 1 pc(s).
EAN: 4028177673823
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27370304
ETIM 6.0: EC001531
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 45 mm
Height: 208 mm
Rated operating voltage: 690 V, 3~
Connection cable: Cross-section: AWG 12
Length: 130 mm
Rated current (max.): 25 A
Number of support rails: 2
Height of support rails: 10 mm
Support rail type: TS 45D
Weight/pack: 0.26 kg
Type: SV 9340320
