Rittal 9320060 PLS expansion connector (PLS800)
|
139,15 EUR 140,65 EUR |
|
|
( 165,59 EUR incl. VAT ) ≈ £117.16 | ≈ $156.27 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 737272 |
| Mfg Part No: | 9320060 |
| UPC/EAN: | 4028177162365 |
| Weight: | 0.6 kg |
| Type: | SV 9320060 |
Further System Accessories from RittalFurther products in category System Accessories
All products of Rittal
Product information for Rittal 9320060:

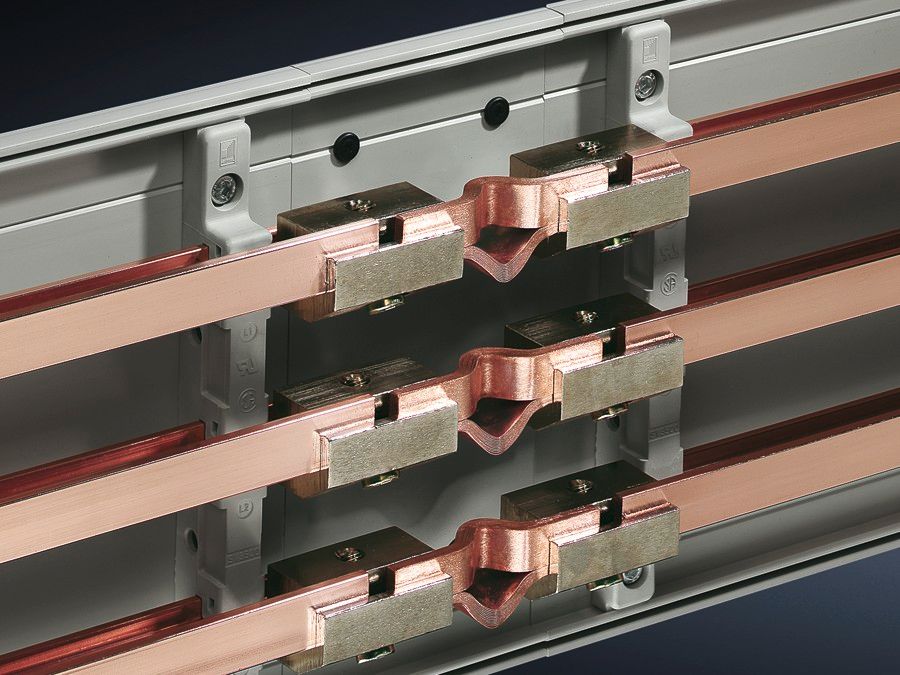

For thermal and mechanical compensation during connection of PLS special busbars from enclosure to enclosure (TS 8).
Material: E-Cu
Note: At a temperature increase of 30 K, there is an expansion in the length of the busbars by approximately 0.5 mm/m. For this reason, it is advisable to use an expanding connection for thermal compensation in busbar systems with busbar sections
Packs of: 3 pc(s).
EAN: 4028177162365
Customs tariff number: 85369010
eCl@ss 5.1: 27370301
eCl@ss 7.0: 27400606
ETIM 6.0: EC000713
To fit busbars: Type: PLS 800
Weight/pack: 0.59 kg
Material: E-Cu
Note: At a temperature increase of 30 K, there is an expansion in the length of the busbars by approximately 0.5 mm/m. For this reason, it is advisable to use an expanding connection for thermal compensation in busbar systems with busbar sections
3600 mm.
Two busbar connectors are needed to fit one expansion connector.Packs of: 3 pc(s).
EAN: 4028177162365
Customs tariff number: 85369010
eCl@ss 5.1: 27370301
eCl@ss 7.0: 27400606
ETIM 6.0: EC000713
To fit busbars: Type: PLS 800
Weight/pack: 0.59 kg
