Rittal 9320030 SV Busbar connector, for E-Cu 20x5-30x10 mm, bayed connection
|
65,41 EUR |
|
|
incl. 10,44 EUR copper surcharge ( 77,84 EUR incl. VAT ) ≈ £56.25 | ≈ $74.57 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Lieske Part No.: | 767979 |
|---|---|
| Mfg Part No: | 9320030 |
| UPC/EAN: | 4028177149830 |
| Weight: | 2.02 kg |
Further System Accessories from RittalFurther products in category System Accessories
All products of Rittal
Product information for Rittal 9320030:

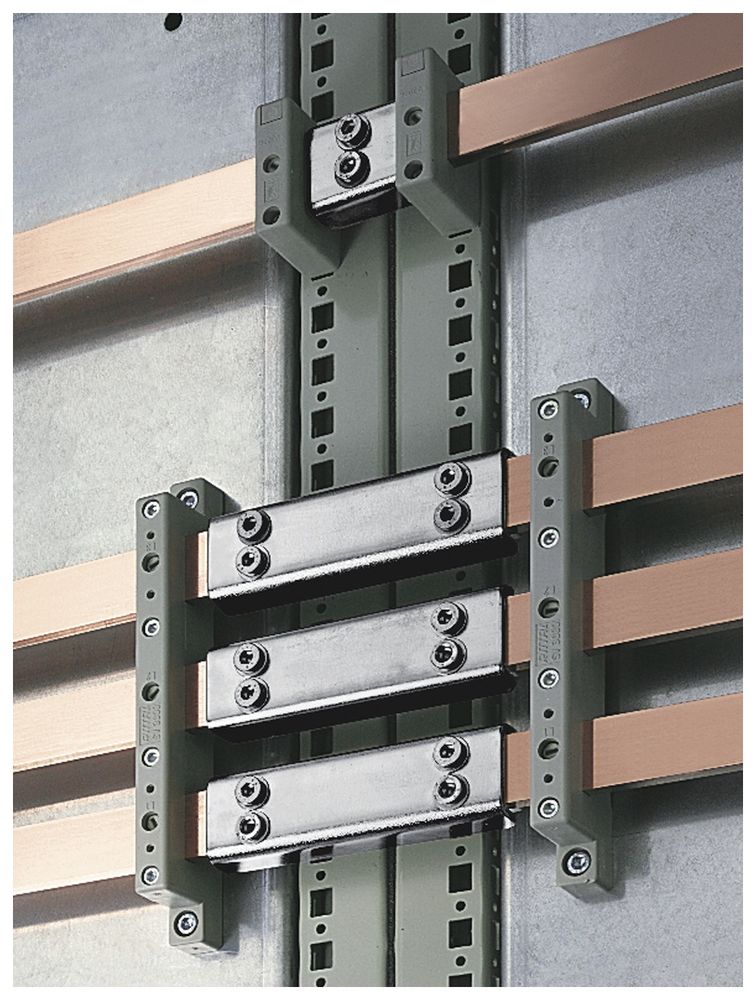

For connecting square busbars, no drilling required.
Material: Top piece: Sheet steel, zinc-plated, passivated
Contact plate: E-Cu, silver-plated
Packs of: 3 pc(s).
EAN: 4028177149830
Customs tariff number: 85369010
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27400606
ETIM 6.0: EC000713
To fit busbars: 20 x 5 - 30 x 10
Connection type: Baying connection from enclosure to enclosure (TS 8)
Weight/pack: 2.08 kg
Type: SV 9320030
Material: Top piece: Sheet steel, zinc-plated, passivated
Contact plate: E-Cu, silver-plated
Packs of: 3 pc(s).
EAN: 4028177149830
Customs tariff number: 85369010
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27400606
ETIM 6.0: EC000713
To fit busbars: 20 x 5 - 30 x 10
Connection type: Baying connection from enclosure to enclosure (TS 8)
Weight/pack: 2.08 kg
Type: SV 9320030
Please note...
This article contains a copper surcharge of 10,44 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Questions & answers
What is the delivery time of Rittal 9320030 SV Busbar connector, for E-Cu 20x5-30x10 mm, bayed connection?
The article Rittal 9320030 SV Busbar connector, for E-Cu 20x5-30x10 mm, bayed connection is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9320030 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9320030 SV Busbar connector, for E-Cu 20x5-30x10 mm, bayed connection always at the best possible price. We can give you a discount of 2% on Rittal 9320030 SV Busbar connector, for E-Cu 20x5-30x10 mm, bayed connection if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
