Rittal 9207100 AX plastic Ex enclosure, 500x500x300 mm, empty enclosure

Your rating:
Average rating
product review for Rittal 9207100 AX plastic Ex enclosure, 500x500x300 mm, empty enclosure
( 5 / 5 ) 1 ratings
Rittal 9207100
This image may differ from the desired article.
Rittal 9207100Rittal 9207100Rittal 9207100Rittal 9207100Rittal 9207100Rittal 9207100Rittal 9207100Rittal 9207100
448,62 EUR
( 533,86 EUR incl. VAT )
≈ £375.49  |  ≈ $493.03
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 9207100 AX plastic Ex enclosure, 500x500x300 mm, empty enclosure
Datasheet:file_download Download
Lieske Part No.:1989434
Mfg Part No: 9207100
UPC/EAN: 4028177952119
Weight:14.84 kg
Type:KE 9207100

Product information for Rittal 9207100:

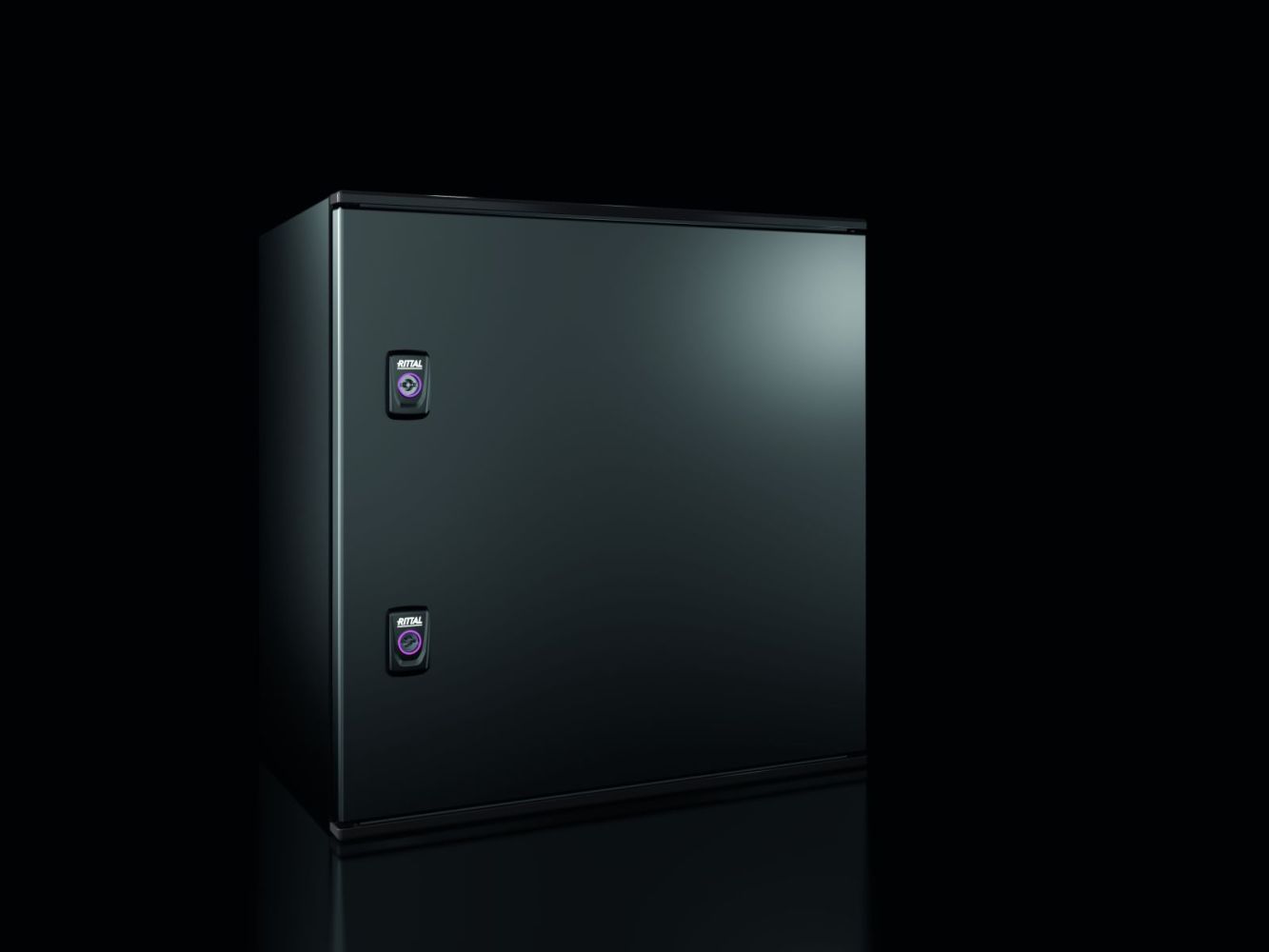

The Rittal KE 9207100 is an Ex enclosure made of glass-fibre-reinforced, unsaturated polyester, designed for use in explosive atmospheres. It is approved for Zone 1 and 2 as well as Zone 21 and 22 according to Directive 2014/34/EU and provides protection through increased safety (Ex e) and through the enclosure (Ex tb) in accordance with EN 60 079. The enclosure is designed as an empty enclosure with a hinged door and features a mounting plate made of galvanised steel sheet. Dimensions are 500 mm width, 500 mm height, and 300 mm depth. The colour is RAL 9011, a grey, neutral tone that integrates well in industrial environments.

Applications
This enclosure is intended for use in explosive atmospheres, particularly in Zone 1 and 2 (gaseous explosive atmosphere) and Zone 21 and 22 (dust explosive atmosphere). Approval is granted in accordance with EU Directive 2014/34/EU, which sets requirements for equipment and protective measures in explosive atmospheres. The operating temperature range is from -40 °C to +70 °C, although actual operating conditions may be limited by installed components.

Functions and Equipment in Detail
The enclosure consists of a single-piece, impact-resistant body made of glass-fibre-reinforced, unsaturated polyester, which is self-extinguishing according to UL 94 V-0. The door is fitted with a continuous silicone seal, ensuring a tight seal. The door features a 130° stainless steel hinge, which can be mounted either left-to-right or right-to-left as required. The door opening is supported by integrated bumpers at the top and bottom. The mounting plate, made of galvanised steel sheet (3 mm thickness), includes grounding slots. A QR code is printed on the enclosure, door, mounting plate, and type plate, enabling unique identification and traceability of individual parts.

Technology Explained Simply
The protection type Ex e (increased safety) means the enclosure is designed to prevent sparks or hot surfaces that could ignite an explosive atmosphere. The protection type Ex tb (enclosure protection) ensures the enclosure isolates internal components from the external environment, preventing any internal explosion from propagating outside. The IP 65 rating according to IEC 60 529 indicates the enclosure is dust-tight and protected against splashing water. The NEMA Type 1, 3R, 3RX, 4, 4X, and 12 ratings cover various environmental conditions, from indoor to outdoor use, including protection against splashing water and dust. The IK code IK09 indicates the enclosure is protected against mechanical impacts such as shocks and vibrations up to a specified energy level.

Compatibility and Accessories
Various accessories are available for this enclosure to facilitate installation and use. These include wall mounting brackets for AX plastic in RAL 9011, door latches, universal brackets, and plastic screws for internal assembly. These components allow for flexible mounting and adaptation to different requirements in industrial applications.

Mounting and Installation
The enclosure is supplied with a mounting plate that enables secure fastening. The mounting plate includes grounding slots, ensuring electrical safety. The door can be mounted either left-to-right or right-to-left, allowing flexible installation at various locations. Integrated mounting bosses on the enclosure and door facilitate internal assembly and device mounting.

Operational Advantages
The enclosure offers high mechanical stability and resistance to environmental influences. The materials are temperature-resistant and self-extinguishing, enhancing safety. The IP 65 and NEMA protection ratings ensure reliable protection against dust and water, even in outdoor environments. Approval for Zone 1/2 and 21/22 enables use in critical industrial areas. The integrated QR codes simplify documentation and traceability of individual parts.

Scope of Delivery
The product is delivered with the enclosure, door, and mounting plate. The mounting plate measures 405 mm (W) x 425 mm (H) with a material thickness of 3 mm. The closures are double-barrel type, with two closures provided. The surface resistances of the enclosure and door are below 10⁹ Ω, ensuring safe electrical insulation. The certificates IEC EX PTB 10.0011U and PTB 03 ATEX 1011U confirm compliance with applicable standards.

General
ModelEx enclosure
ApplicationsZone 1 and 2 or 21 and 22 according to 2014/34/EU, ambient temperature range: -40 °C...+70 °C, the specified temperatures may be limited by installed devices, protection type according to EN 60 079: device protection by increased safety (Ex e), device protection by enclosure (Ex tb)
MaterialHousing: glass-fibre-reinforced unsaturated polyester, surface resistance: < 10⁹ Ω, door: glass-fibre-reinforced unsaturated polyester, surface resistance: < 10⁹ Ω, continuously bonded silicone seal, mounting plate: sheet steel, zinc-coated
ColourRAL 9011
Scope of deliveryhousing, door, mounting plate
Width500 mm
Height500 mm
Depth300 mm
Mounting plate dimensions (W x H)405 mm x 425 mm
Mounting plate material thickness3 mm
LockNumber of locks: 2
Degree of protection IP according to IEC 60 529IP 65
NEMA degree of protectionType 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12
IK codeIK09
Operating temperature range-40 °C...70 °C
Operation temperatureThe specified temperatures may be limited by the installed devices
Certificate IEC EX PTB 10.0011UJa
Certificate PTB 03 ATEX 1011UJa


Product data sheet
Datasheet for Rittal 9207100, EAN: 4028177952119

Questions & answers

What is the delivery time of Rittal 9207100 AX plastic Ex enclosure, 500x500x300 mm, empty enclosure?

The article Rittal 9207100 AX plastic Ex enclosure, 500x500x300 mm, empty enclosure is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9207100 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9207100 AX plastic Ex enclosure, 500x500x300 mm, empty enclosure always at the best possible price. We can give you a discount of 2% on Rittal 9207100 AX plastic Ex enclosure, 500x500x300 mm, empty enclosure if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
