Rittal 9206100 AX plastic Ex enclosure, 600x600x200 mm, empty enclosure

Your rating:
Average rating
product review for Rittal 9206100 AX plastic Ex enclosure, 600x600x200 mm, empty enclosure
( 4 / 5 ) 1 ratings
Rittal 9206100
This image may differ from the desired article.
Rittal 9206100Rittal 9206100Rittal 9206100Rittal 9206100Rittal 9206100Rittal 9206100Rittal 9206100Rittal 9206100
-9% 405,84 EUR 443,63 EUR
( 482,95 EUR incl. VAT )
≈ £339.69  |  ≈ $446.02
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 9206100 AX plastic Ex enclosure, 600x600x200 mm, empty enclosure
Datasheet:file_download Download
Lieske Part No.:1989433
Mfg Part No: 9206100
UPC/EAN: 4028177952102
Weight:17.74 kg
Type:KE 9206100

Product information for Rittal 9206100:

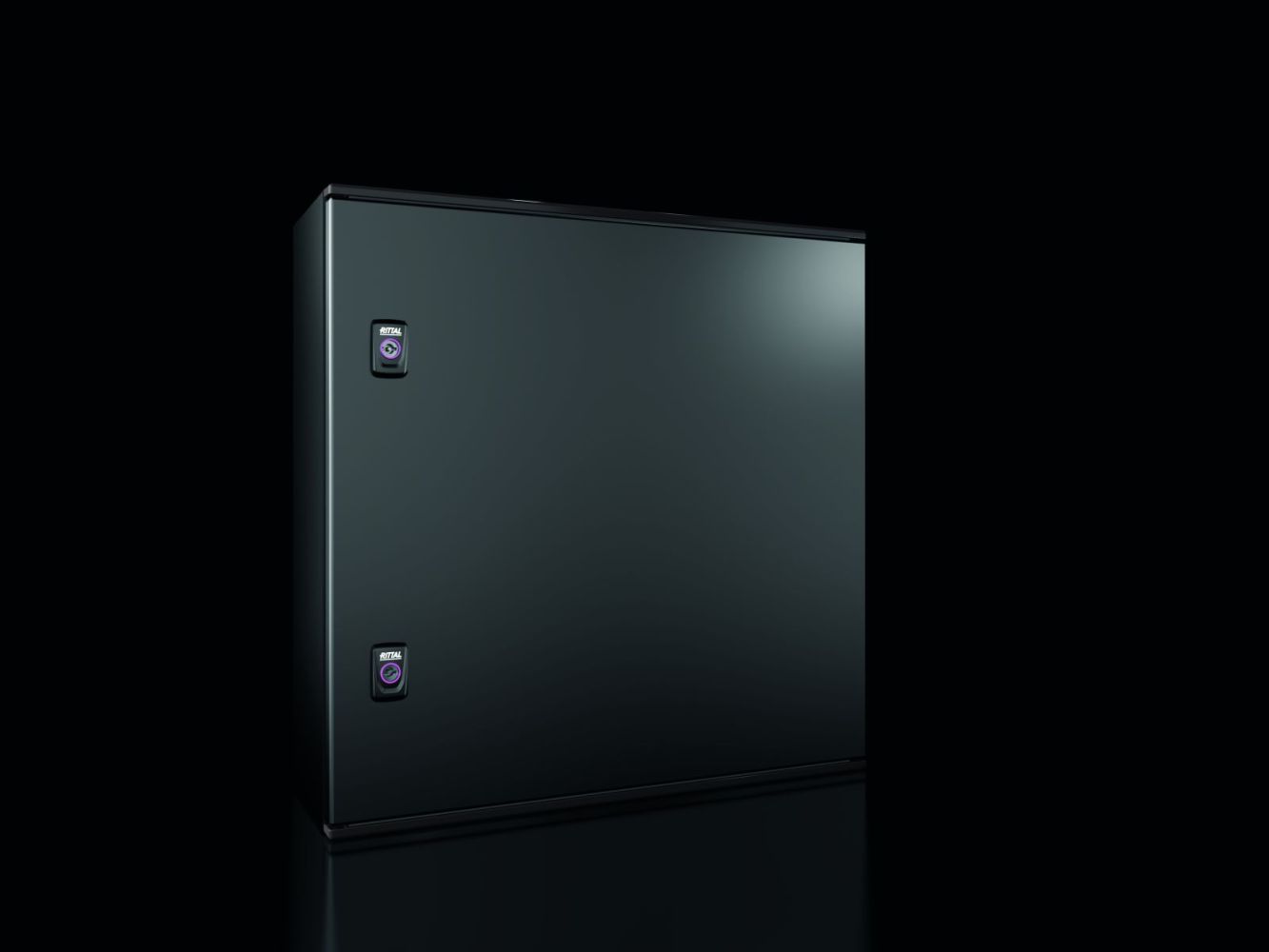

The Rittal KE 9206100 is an Ex-enclosure made of glass-fibre-reinforced, unsaturated polyester, designed for use in explosive atmospheres. It is approved for Zone 1 and 2 as well as Zone 21 and 22 according to Directive 2014/34/EU and provides protection through increased safety (Ex e) and enclosure protection (Ex tb) in accordance with EN 60 079. The enclosure has dimensions of 600 mm (width) × 600 mm (height) × 200 mm (depth) and is available in the colour RAL 9011. It features a hinged door with a continuous silicone seal, ensuring a tight seal. The door can be operated at an opening angle of 130°, with the hinge position being reversible from left to right. The mounting plate made of galvanised steel sheet (3 mm thickness) is equipped with keyhole slots for earthing and allows for the mounting of internal components. A QR code on the enclosure, door, and mounting plate serves for unique identification and traceability of individual parts.

Applications

The enclosure is designed for use in explosive environments, particularly in Zone 1 and 2 (gaseous explosive atmospheres) and Zone 21 and 22 (dust explosive atmospheres) according to 2014/34/EU. It is designed for ambient temperatures from -40 °C to +70 °C, although the actual operating temperature may be limited by installed devices. The approvals include certificates IEC EX PTB 10.0011U and PTB 03 ATEX 1011U, confirming compliance with relevant explosion protection standards.

Functions and Equipment in Detail

The enclosure consists of a single-piece, impact-resistant plastic body made of glass-fibre-reinforced, unsaturated polyester, which is self-extinguishing according to UL 94 V-0. The surface resistances of the enclosure and door are below 10⁹ Ω, enhancing electrical safety. The door is equipped with a continuous reinforcement frame providing mounting bosses for internal installation. Integrated sealing lips at the top and bottom of the door ensure a secure closure. The mounting plate (505 mm × 525 mm) is fitted with mounting elements and allows for secure installation of devices inside.

Technology Explained Simply

The protection rating IP 65 according to IEC 60 529 means the enclosure is dust-tight and protected against water jets from all directions. The NEMA protection ratings Type 1, 3R, 3RX, 4, 4X, and 12 cover various environmental conditions, including protection against weather influences and splashing water. The IK code IK09 indicates high mechanical resistance against impact and shock. The flameproof type Ex e (increased safety) and Ex tb (enclosure protection) ensure that in the event of a fault, no ignition source is created that could trigger an explosion.

Compatibility and Accessories

Various accessories are available for use with the enclosure, including wall mounting brackets for AX plastic in RAL 9011, door latches, universal brackets, and plastic screws for internal installation. These components enable flexible mounting and adaptation to specific requirements in industrial applications.

Mounting and Installation

Installation is carried out via the integrated mounting plate, which is equipped with keyhole slots for earthing. The mounting elements on the enclosure body and door allow for secure installation of devices. The hinged door with a 130° opening angle and reversible hinge facilitates access to the interior. The continuous silicone seal ensures a tight seal, guaranteeing the IP 65 protection and meeting explosion protection requirements.

Operational Advantages

The enclosure offers high mechanical stability and resistance to environmental influences. The materials are temperature-resistant and self-extinguishing, enhancing operational safety. The integrated mounting plate and mounting elements simplify device installation. The approvals for Zone 1/2 and 21/22, along with protection ratings IP 65 and IK09, make the enclosure suitable for demanding industrial applications, particularly in process industries, power generation, and machine building.

The delivery includes the enclosure, door, and mounting plate.

General
ModelEx enclosure
ApplicationsZone 1 and 2 or 21 and 22 according to 2014/34/EU, ambient temperature range: -40 °C...+70 °C, the specified temperatures may be limited by installed devices, protection type according to EN 60 079: device protection by increased safety (Ex e), device protection by enclosure (Ex tb)
MaterialHousing: glass-fibre-reinforced unsaturated polyester, surface resistance: < 10⁹ Ω, door: glass-fibre-reinforced unsaturated polyester, surface resistance: < 10⁹ Ω, continuously bonded silicone seal, mounting plate: sheet steel, zinc-coated
ColourRAL 9011
Scope of deliveryhousing, door, mounting plate
Width600 mm
Height600 mm
Depth200 mm
Mounting plate dimensions (W x H)505 mm x 525 mm
Mounting plate material thickness3 mm
LockNumber of locks: 2
Degree of protection IP according to IEC 60 529IP 65
NEMA degree of protectionType 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12
IK codeIK09
Operating temperature range-40 °C...70 °C
Operation temperatureThe specified temperatures may be limited by the installed devices
Certificate IEC EX PTB 10.0011UJa
Certificate PTB 03 ATEX 1011UJa


Product data sheet
Datasheet for Rittal 9206100, EAN: 4028177952102
