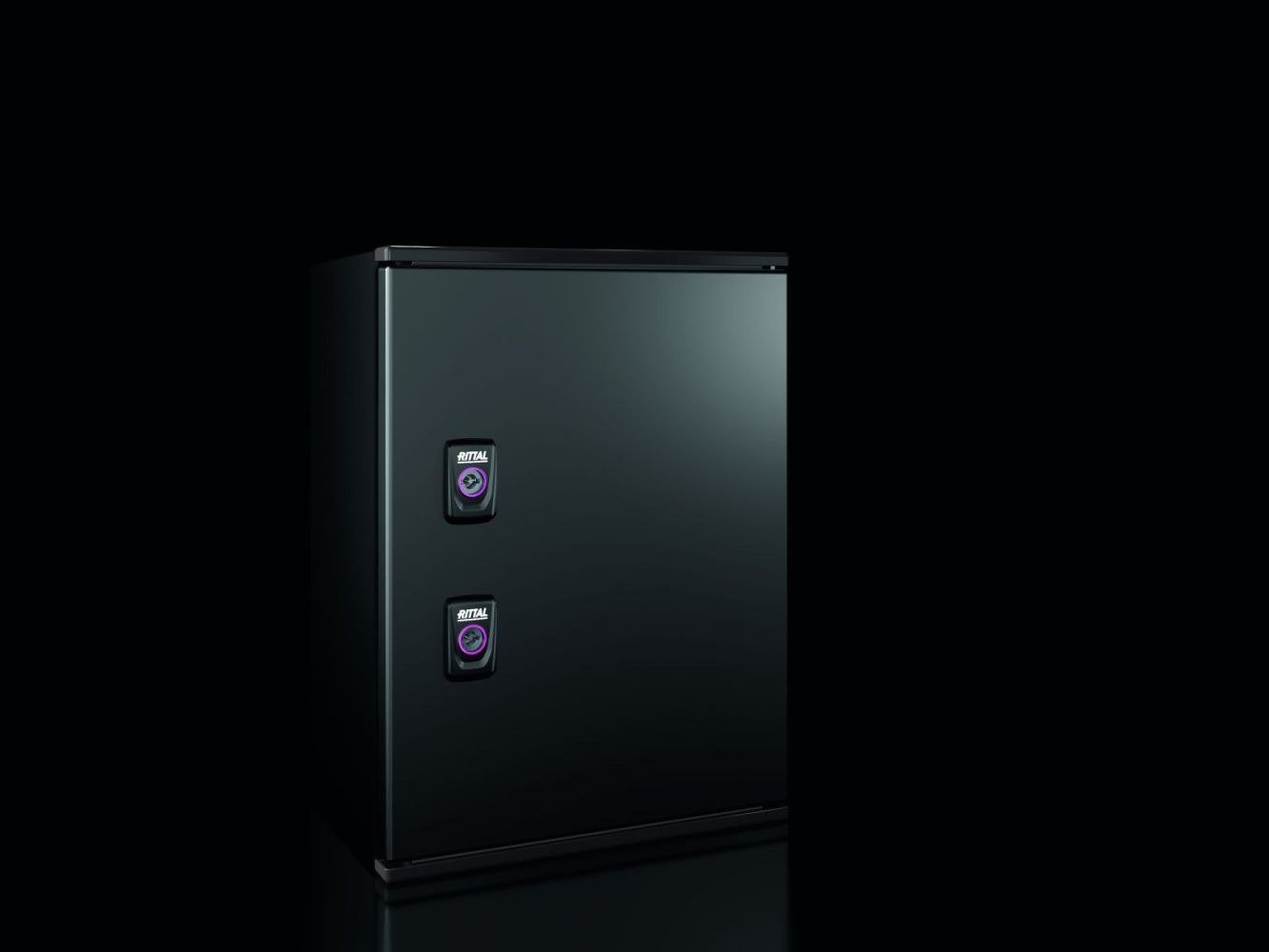

Rittal 9203100 AX plastic Ex enclosure, 300x400x200 mm, empty enclosure

Your rating:
Average rating
product review for Rittal 9203100 AX plastic Ex enclosure, 300x400x200 mm, empty enclosure
( 4.7 / 5 ) 3 ratings
Rittal 9203100
This image may differ from the desired article.
Rittal 9203100Rittal 9203100Rittal 9203100Rittal 9203100Rittal 9203100Rittal 9203100Rittal 9203100Rittal 9203100
211,83 EUR
( 252,08 EUR incl. VAT )
≈ £177.30  |  ≈ $232.80
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: 1 pieces
1x Rittal 9203100 AX plastic Ex enclosure, 300x400x200 mm, empty enclosure
Datasheet:file_download Download
Lieske Part No.:1910680
Mfg Part No: 9203100
UPC/EAN: 4028177952072
Weight:7.26 kg
Type:KE 9203100

Product information for Rittal 9203100:

The Rittal AX Ex-enclosure, type KE 9203100, is an empty, impact-resistant plastic enclosure made of glass-fibre-reinforced, unsaturated polyester, designed for use in explosive atmospheres. It features a hinged door and is approved for use in Zone 1 and 2 as well as Zone 21 and 22 according to Directive 2014/34/EU. The protection type according to EN 60 079 includes device protection by increased safety (Ex e) and protection by enclosure (Ex tb). The enclosure is designed for ambient temperatures from -40 °C to +70 °C, although the actual operating temperature may be limited by installed devices.

Applications
This enclosure is designed for use in explosive atmospheres, particularly in industrial plants, petrochemical, gas and energy supply, as well as in process industries. The approval for Zone 1 and 2 (gas) and Zone 21 and 22 (dust) enables use in areas where explosive atmospheres may occur. Certification according to ATEX and IECEx (certificates PTB 03 ATEX 1011U and IEC EX PTB 10.0011U) ensures compliance with European and international safety standards.

Functions and Equipment in Detail
The enclosure consists of a one-piece, impact-resistant plastic body with a material thickness of 3 mm. The door is fitted with a continuous silicone seal, ensuring a tight seal. The doors are equipped with a 130° stainless steel hinge, with the hinge side being reversible from left to right. The top and bottom edges of the door are fitted with a double seal acting as a rain protection strip. The mounting plate made of galvanised steel sheet (2.5 mm thick) features keyhole slots for earthing and allows for the attachment of internal components. A printed QR code on the enclosure, door, and mounting plate enables unique identification and easy access to product information.

Technology Explained Simply
The enclosure is made of glass-fibre-reinforced, unsaturated polyester, which is self-extinguishing according to UL 94 V-0 and thus offers high fire resistance. The surface resistances of the enclosure and door are below 10⁹ Ω, enhancing electrical safety. The protection rating IP 65 according to IEC 60 529 ensures dust and splash water protection, while the IK code IK09 provides high protection against mechanical impacts. The protection ratings according to NEMA (Type 1, 3R, 3RX, 4, 4X, 12) cover various environmental conditions, including protection against weather influences and splash water. The mounting plate is fitted with mounting domes to securely fasten internal components.

Compatibility and Accessories
Various accessories are available for this enclosure, extending its functionality. These include wall mounting brackets for AX plastic in RAL 9011, door latches, universal brackets, and plastic screws for internal installation. These components allow for flexible mounting and adaptation to specific application requirements.

Installation and Mounting
The enclosure is supplied with a mounting plate, enabling secure attachment to walls or other surfaces. Installation is carried out via the designated mounting points on the mounting plate. The doors are fitted with a double-barrel lock, ensuring secure latching. Integrated mounting rails on the top and bottom edges of the door facilitate installation and ensure secure guidance.

Operational Advantages
The enclosure offers high mechanical stability and weather resistance. The materials are temperature resistant between -40 °C and +70 °C and resist chemical influences. The integrated earthing via the keyhole slots on the mounting plate ensures electrical safety. The uniform colour in RAL 9011 ensures visual harmonisation in industrial environments. The ATEX and IECEx approvals, along with protection ratings IP 65 and IK09, make the enclosure suitable for demanding operating conditions.

General
ModelEx enclosure
ApplicationsZone 1 and 2 or 21 and 22 according to 2014/34/EU, ambient temperature range: -40 °C...+70 °C, the specified temperatures may be limited by installed devices, protection type according to EN 60 079: device protection by increased safety (Ex e), device protection by enclosure (Ex tb)
MaterialHousing: glass-fibre-reinforced unsaturated polyester, surface resistance: < 10⁹ Ω, door: glass-fibre-reinforced unsaturated polyester, surface resistance: < 10⁹ Ω, continuously bonded silicone seal, mounting plate: sheet steel, zinc-coated
ColourRAL 9011
Scope of deliveryhousing, door, mounting plate
Width300 mm
Height400 mm
Depth200 mm
Mounting plate dimensions (W x H)205 mm x 325 mm
Mounting plate material thickness2,5 mm
LockNumber of locks: 2
Degree of protection IP according to IEC 60 529IP 65
NEMA degree of protectionType 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12
IK codeIK09
Operating temperature range-40 °C...70 °C
Operation temperatureThe specified temperatures may be limited by the installed devices
Certificate IEC EX PTB 10.0011UJa
Certificate PTB 03 ATEX 1011UJa


Product data sheet
Datasheet for Rittal 9203100, EAN: 4028177952072

Questions & answers

What is the delivery time of Rittal 9203100 AX plastic Ex enclosure, 300x400x200 mm, empty enclosure?

The article Rittal 9203100 AX plastic Ex enclosure, 300x400x200 mm, empty enclosure is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9203100 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9203100 AX plastic Ex enclosure, 300x400x200 mm, empty enclosure always at the best possible price. We can give you a discount of 2% on Rittal 9203100 AX plastic Ex enclosure, 300x400x200 mm, empty enclosure if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
