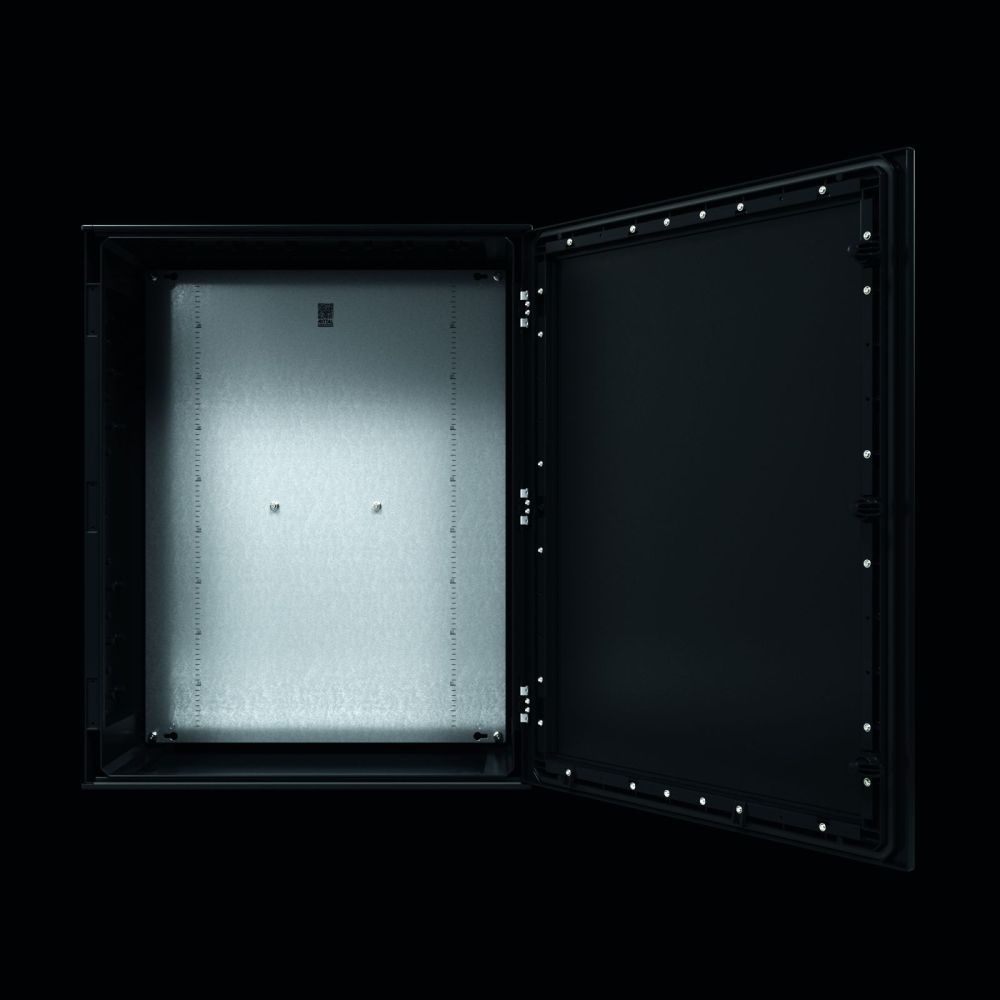

Rittal 9202100 AX plastic Ex enclosure, 250x350x150 mm, empty enclosure
|
167,67 EUR |
|
|
( 199,53 EUR incl. VAT ) ≈ £140.34 | ≈ $184.27 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1910679 |
| Mfg Part No: | 9202100 |
| UPC/EAN: | 4028177952065 |
| Weight: | 4.94 kg |
| Type: | KE 9202100 |
Product information for Rittal 9202100:
Applications
This housing is intended for use in explosive environments, particularly in areas classified as Zone 1, 2, 21 or 22 according to ATEX Directive 2014/34/EU. It is suitable for applications in the chemical industry, petrochemicals, power generation, and other sectors where explosion hazards exist. The approvals PTB 03 ATEX 1011U and IEC EX PTB 10.0011U confirm compliance with applicable safety standards.
Functions and Equipment in Detail
The housing consists of a single-piece, impact-resistant body made of glass-fibre-reinforced, unsaturated polyester, which is self-extinguishing according to UL 94 V-0. The door is fitted with a continuously bonded silicone seal, ensuring a tight seal. The door features a 130° stainless steel hinge, which can be reversed from left to right as an option. Integrated door stops at the top and bottom of the door ensure secure guidance. The mounting plate made of galvanized steel sheet (2.5 mm thickness) includes grounding holes and enables secure fastening in the enclosure.
Technology Explained Simply
The surface resistances of the housing and door are below 10⁹ Ω, ensuring sufficient electrical conductivity for dissipation of static charges. The protection class IP 65 according to IEC 60 529 protects against dust and splashing water, while the IK code IK09 guarantees high mechanical strength against impact and shock. The NEMA protection types Type 1, 3R, 3RX, 4, 4X and 12 cover a wide range of environmental conditions, including moisture, dust and mechanical stress. The double sealing at the top and bottom edges of the door functions as a rain shield.
Compatibility and Accessories
Various accessories are available for this housing, facilitating installation and use. These include wall mounting brackets for AX plastic in RAL 9011, door latches, universal brackets, and plastic screws for internal assembly. These components enable flexible and secure installation in various enclosure configurations.
Mounting and Installation
The housing is supplied with a mounting plate, enabling secure fastening in the enclosure. Mounting is carried out via the designated mounting bosses on the housing and door. The integrated grounding holes on the mounting plate allow for secure earthing. The doors are fitted with a 3 mm thick double-barrel lock, ensuring secure closure.
Advantages in Operation
The housing offers high mechanical and electrical stability, is temperature resistant between -40 °C and +70 °C, and protects against dust, water and mechanical impacts. The integrated mounting bosses enable easy internal assembly. The QR code on the housing, door and mounting plate allows for unique identification and easy access to relevant product information. The approvals for Zone 1/2 and 21/22, as well as protection classes IP 65 and IK09, make this housing a reliable solution for demanding industrial applications.
| General | |
| Model | Ex enclosure |
| Applications | Zone 1 and 2 or 21 and 22 according to 2014/34/EU, ambient temperature range: -40 °C...+70 °C, the specified temperatures may be limited by installed devices, protection type according to EN 60 079: device protection by increased safety (Ex e), device protection by enclosure (Ex tb) |
| Material | Housing: glass-fibre-reinforced unsaturated polyester, surface resistance: < 10⁹ Ω, door: glass-fibre-reinforced unsaturated polyester, surface resistance: < 10⁹ Ω, continuously bonded silicone seal, mounting plate: sheet steel, zinc-coated |
| Colour | RAL 9011 |
| Scope of delivery | housing, door, mounting plate |
| Width | 250 mm |
| Height | 350 mm |
| Depth | 150 mm |
| Mounting plate dimensions (W x H) | 155 mm x 275 mm |
| Mounting plate material thickness | 2,5 mm |
| Lock | Number of locks: 1 |
| Degree of protection IP according to IEC 60 529 | IP 65 |
| NEMA degree of protection | Type 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12 |
| IK code | IK09 |
| Operating temperature range | -40 °C...70 °C |
| Operation temperature | The specified temperatures may be limited by the installed devices |
| Certificate IEC EX PTB 10.0011U | |
| Certificate PTB 03 ATEX 1011U | |
Questions & answers
What is the delivery time of Rittal 9202100 AX plastic Ex enclosure, 250x350x150 mm, empty enclosure?
The article Rittal 9202100 AX plastic Ex enclosure, 250x350x150 mm, empty enclosure is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9202100 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9202100 AX plastic Ex enclosure, 250x350x150 mm, empty enclosure always at the best possible price. We can give you a discount of 2% on Rittal 9202100 AX plastic Ex enclosure, 250x350x150 mm, empty enclosure if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
