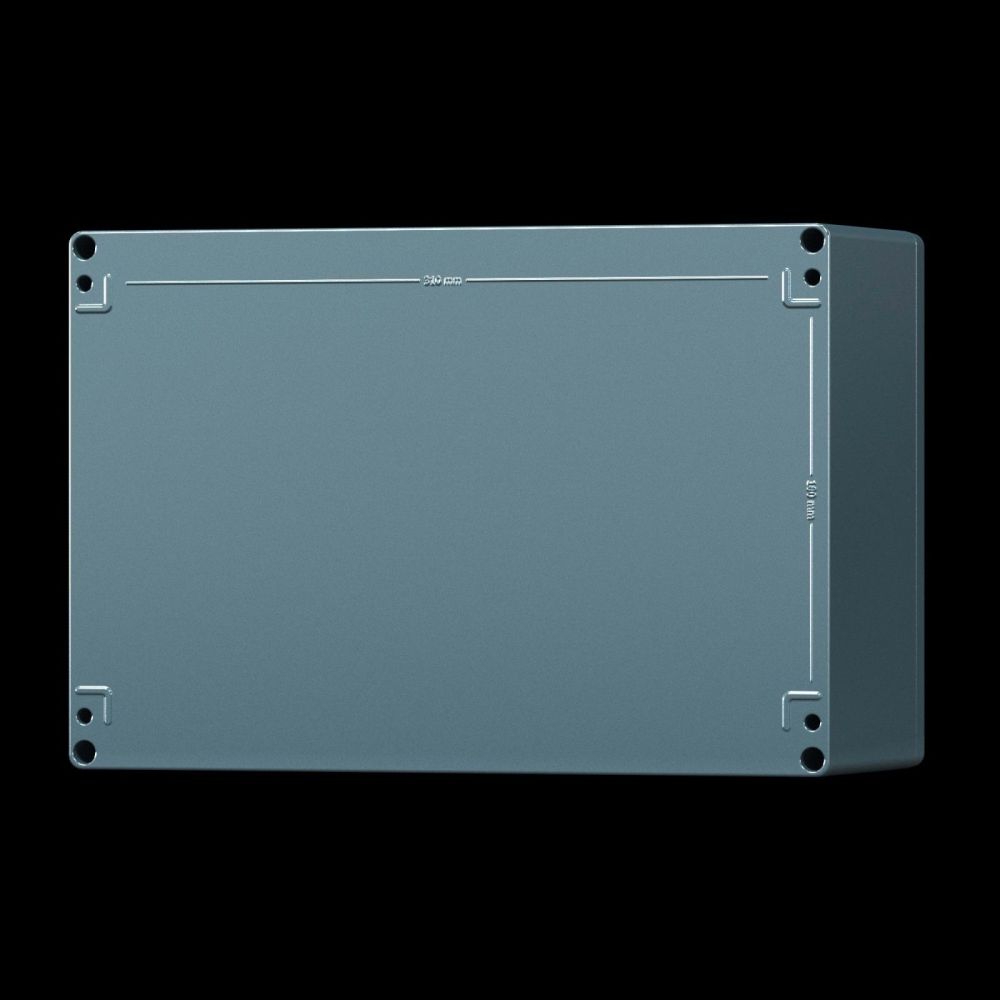

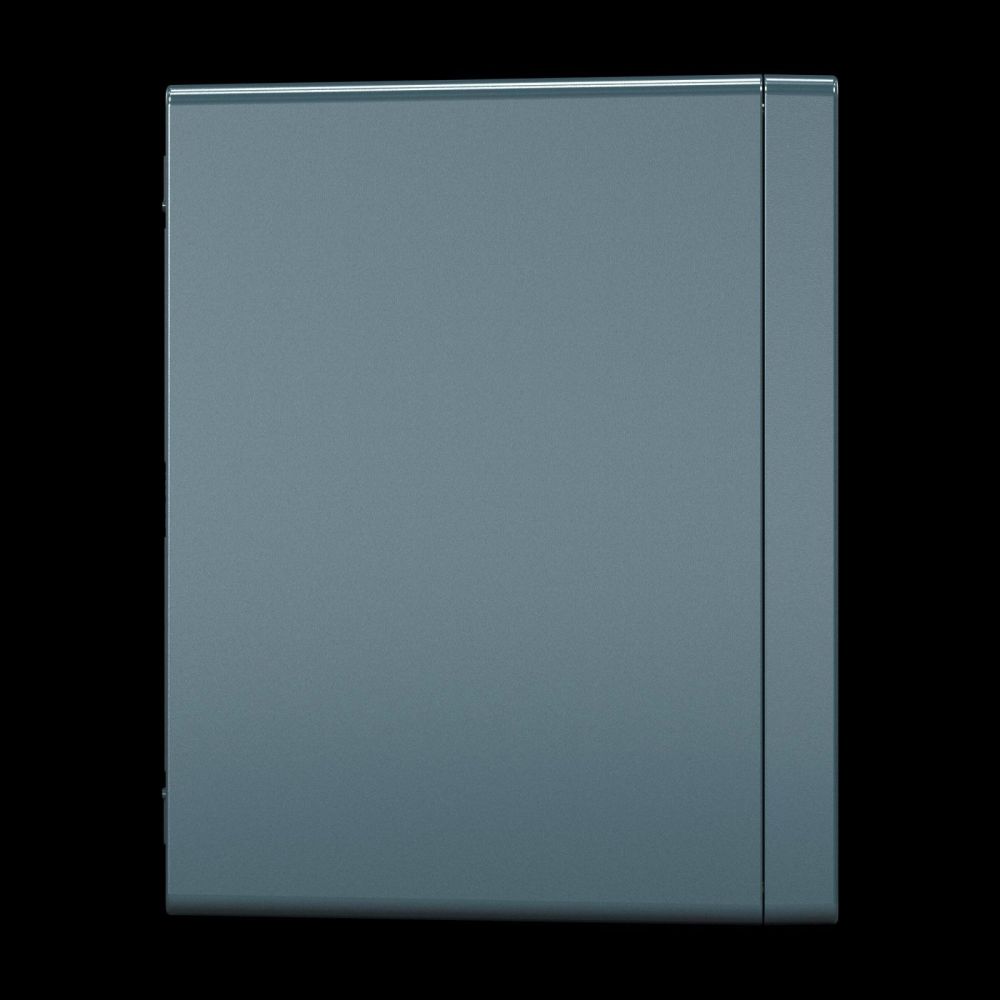

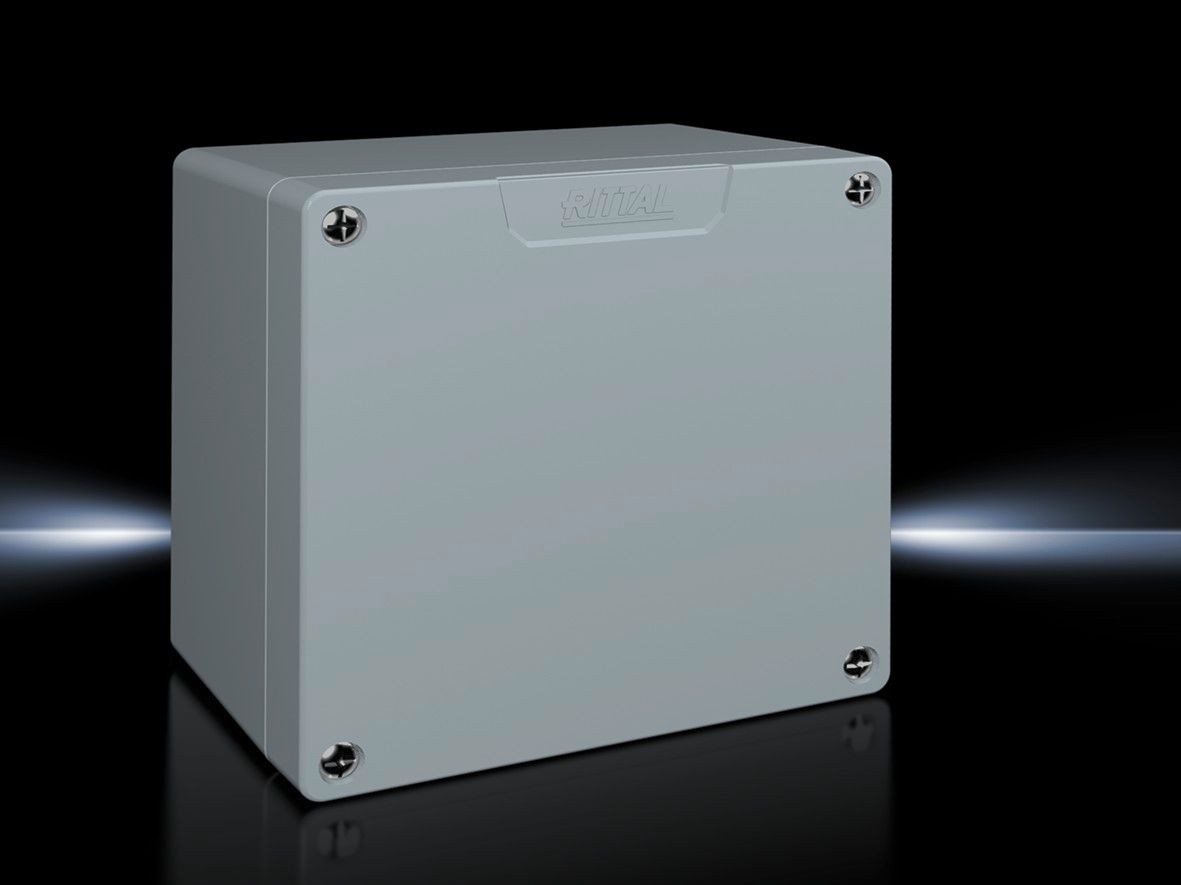

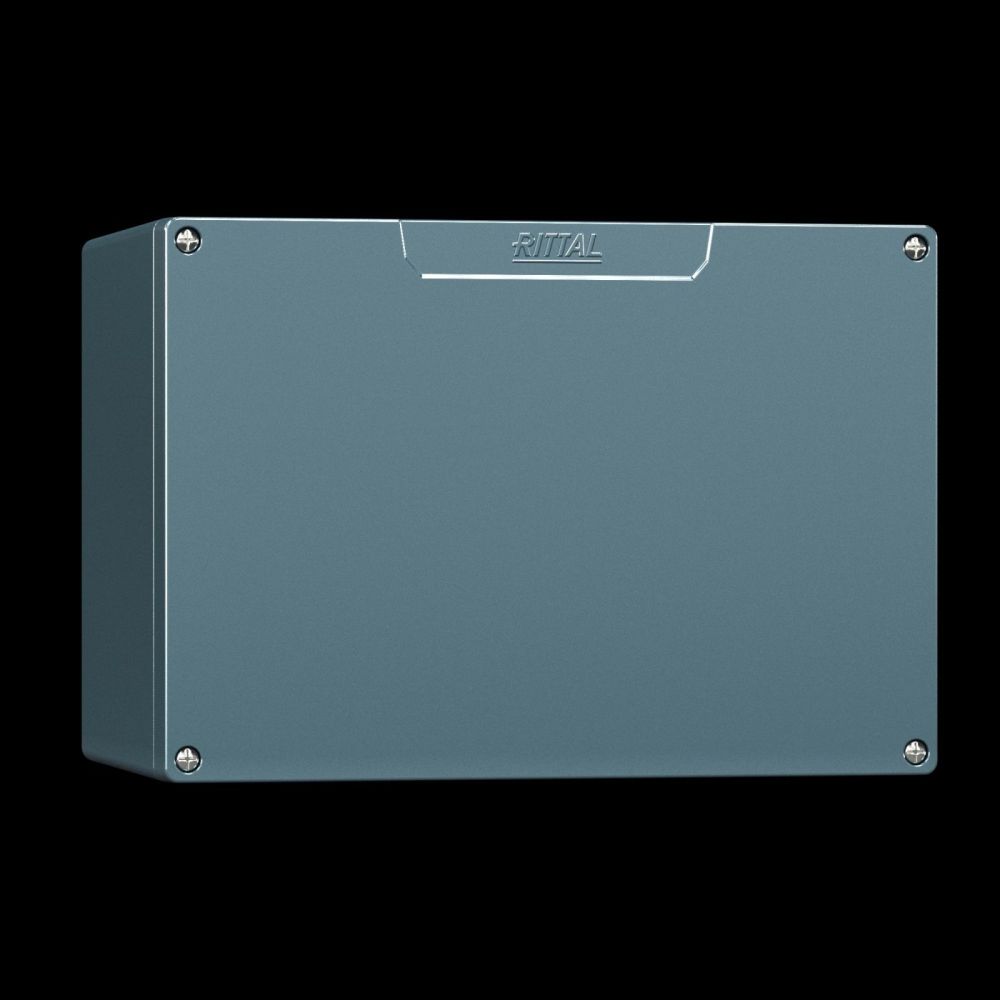

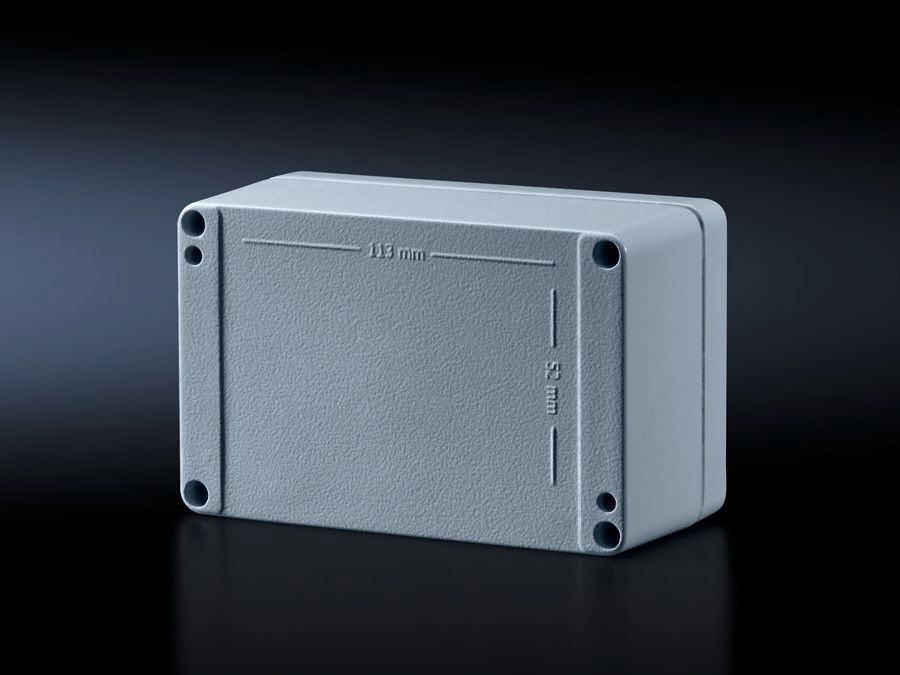

Rittal 9112210 Aluminium casting enclosure GA, W x H x D: 160x160x93 mm
|
58,19 EUR 60,51 EUR |
|
|
( 69,25 EUR incl. VAT ) ≈ £48.71 | ≈ $63.95 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 706289 |
| Mfg Part No: | 9112210 |
| UPC/EAN: | 4028177145436 |
| Weight: | 1.79 kg |
| Type: | GA 9112210 |
Product information for Rittal 9112210:

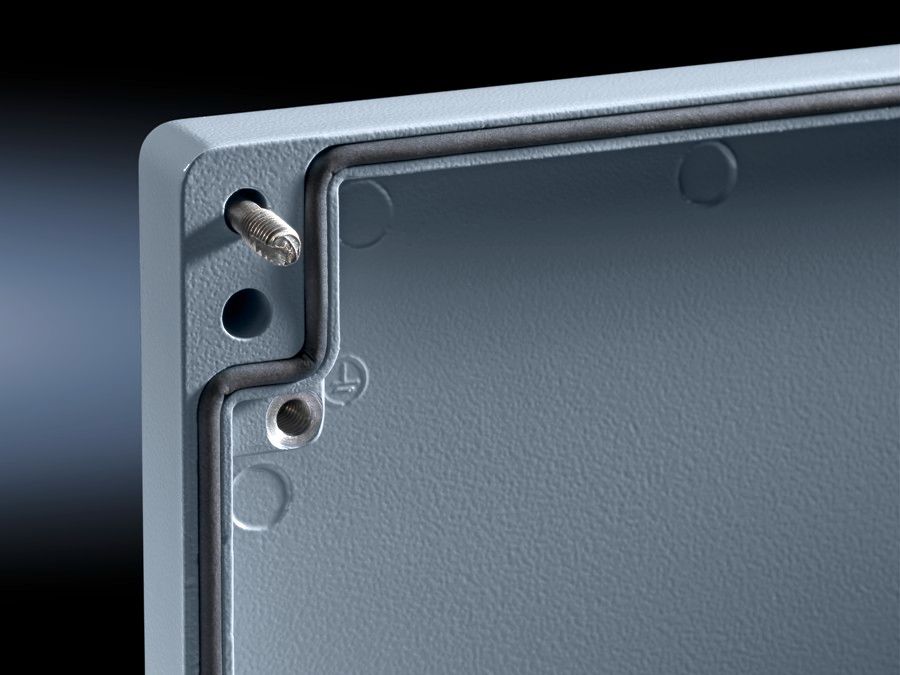

Cover: Cast aluminium, all-round foamed-in PU seal

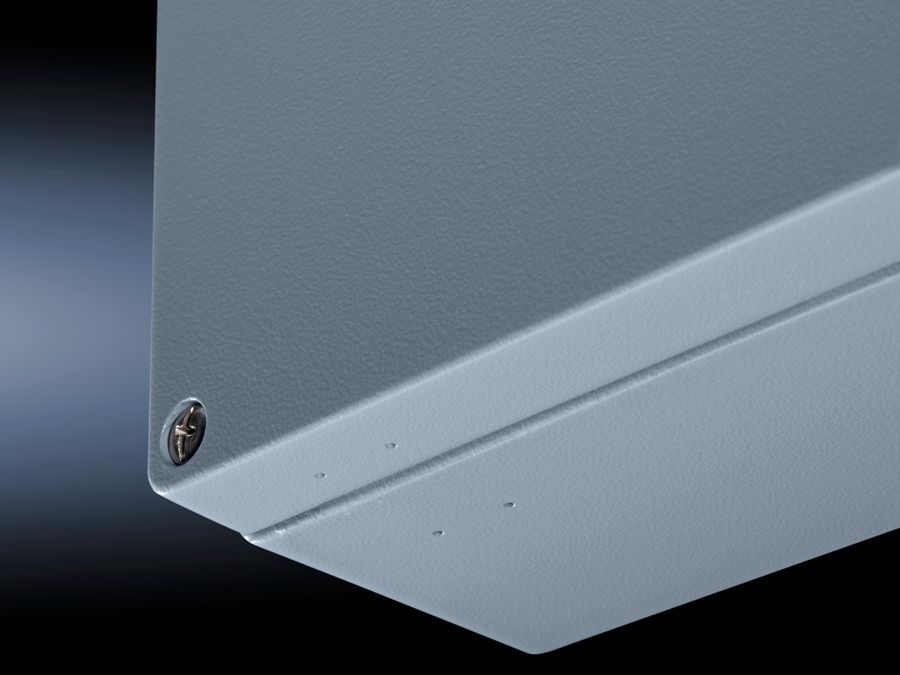

Surface finish: Textured paint
Colour: RAL 7001
Protection category IP to IEC 60 529: IP 66
Protection category NEMA: NEMA 4
IK Code: IK08

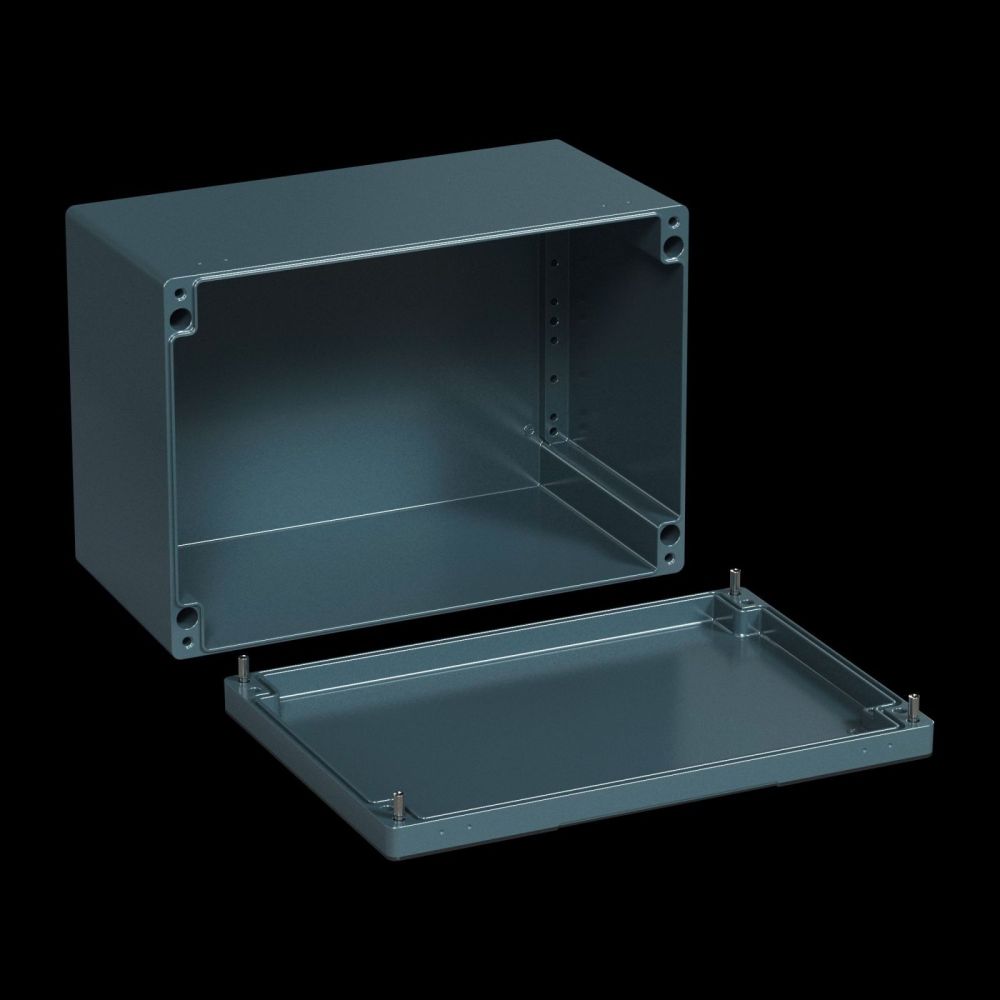

Supply includes: Enclosure with cover
Cover screws, captive
Screws for attaching support rails

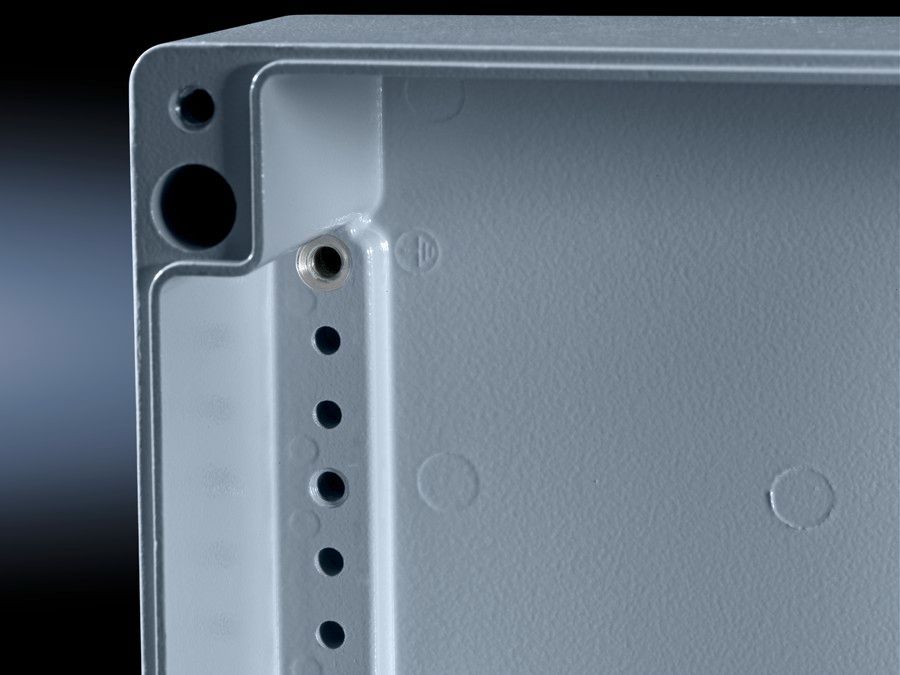

Screw for connection of the PE conductor
Packs of: 1 pc(s).
EAN: 4028177145436
Customs tariff number: 94032080
eCl@ss 5.1: 27180102
eCl@ss 7.0: 27180101
ETIM 6.0: EC000261
Dimensions: Width: 160 mm
Height: 160 mm
Depth: 91 mm
Weight/pack: 1.68 kg
| General | |
| Material | Housing: aluminium casting, cover: aluminium casting, continuous CR-foam rubber round gasket |
| Surface protection | Structured lacquer |
| Colour | RAL 7001 |
| Scope of delivery | Housing with cover, cover screws, permanently mounted, screws for mounting on DIN rails, screw for earth connection |
| Width | 160 mm |
| Height | 160 mm |
| Depth | 93 mm |
| Degree of protection IP according to EN 60 529 | IP 66 |
| NEMA degree of protection | NEMA 4 |
| IK code | IK08 |
| Base material | Aluminium casting |
Questions & answers
What is the delivery time of Rittal 9112210 Aluminium casting enclosure GA, W x H x D: 160x160x93 mm?
The article Rittal 9112210 Aluminium casting enclosure GA, W x H x D: 160x160x93 mm is currently in stock
According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9112210 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9112210 Aluminium casting enclosure GA, W x H x D: 160x160x93 mm always at the best possible price. We can give you a discount of 2% on Rittal 9112210 Aluminium casting enclosure GA, W x H x D: 160x160x93 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
