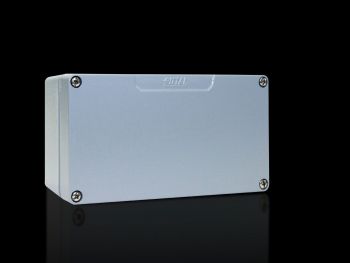

Rittal 9110210 Aluminium casting enclosure GA, W x H x D: 220x120x93 mm
|
55,20 EUR |
|
|
( 65,69 EUR incl. VAT ) ≈ £46.15 | ≈ $61.00 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 926486 |
| Mfg Part No: | 9110210 |
| UPC/EAN: | 4028177145412 |
| Weight: | 1.752 kg |
| Type: | GA 9110210 |
Product information for Rittal 9110210:
Deckel: Aluminiumguss, umlaufend eingeschäumte PU-Dichtung
Oberfläche: Strukturlack
Farbe: RAL 7001
Schutzart IP nach IEC 60 529: IP 66
Schutzart NEMA: NEMA 4
IK-Code: IK08
Lieferumfang: Gehäuse mit Deckel
Deckelschrauben, unverlierbar montiert
Schrauben zum Befestigen von Tragschienen
Schraube für Schutzleiteranschluss
Verpackungseinheit: 1 St.
EAN: 4028177145412
Zolltarifnummer: 94032080
eCl@ss 5.1: 27180102
eCl@ss 7.0: 27180101
ETIM 6.0: EC000261
Abmessungen: Breite: 220 mm
Höhe: 120 mm
Tiefe: 91 mm
Gewicht/VE: 1,56 kg
| General | |
| Material | Housing: aluminium casting, cover: aluminium casting, continuous CR-foam rubber round gasket |
| Surface protection | Structured lacquer |
| Colour | RAL 7001 |
| Scope of delivery | Housing with cover, cover screws, permanently mounted, screws for mounting on DIN rails, screw for earth connection |
| Width | 220 mm |
| Height | 120 mm |
| Depth | 93 mm |
| Degree of protection IP according to EN 60 529 | IP 66 |
| NEMA degree of protection | NEMA 4 |
| IK code | IK08 |
| Base material | Aluminium casting |
Questions & answers
What is the delivery time of Rittal 9110210 Aluminium casting enclosure GA, W x H x D: 220x120x93 mm?
The article Rittal 9110210 Aluminium casting enclosure GA, W x H x D: 220x120x93 mm is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9110210 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9110210 Aluminium casting enclosure GA, W x H x D: 220x120x93 mm always at the best possible price. We can give you a discount of 2% on Rittal 9110210 Aluminium casting enclosure GA, W x H x D: 220x120x93 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
