Rittal 8808455 VX VX protective roof for W x D: 800x800 mm

Your rating:
Average rating
product review for Rittal 8808455 VX VX protective roof for W x D: 800x800 mm
( 0 / 5 ) 0 ratings
Rittal 8808455

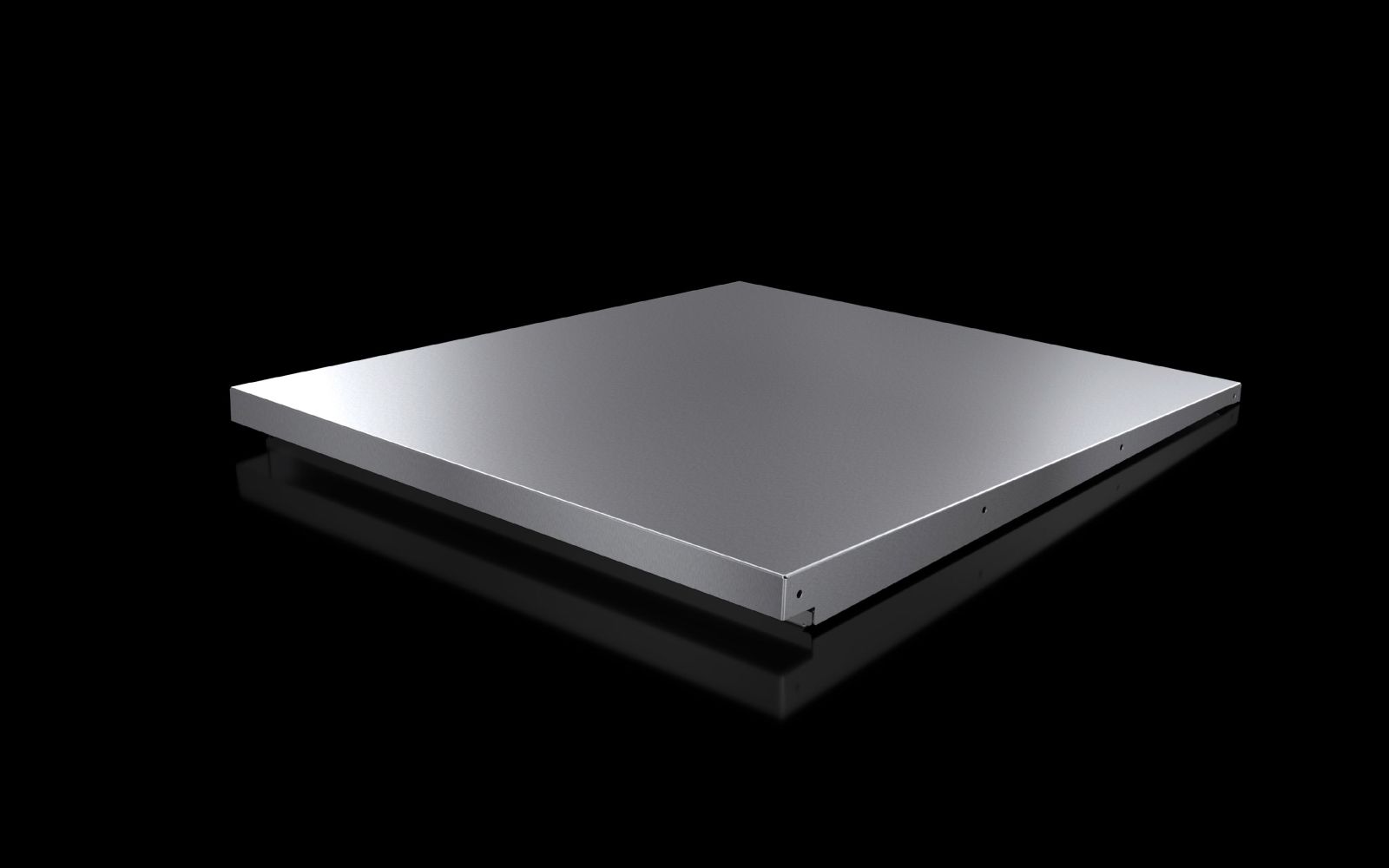

This image may differ from the desired article.
258,68 EUR 269,91 EUR
( 307,83 EUR incl. VAT )
≈ £216.26  |  ≈ $285.84
plus delivery charges: 148,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 8808455 VX VX protective roof for W x D: 800x800 mm
Datasheet:file_download Download
Lieske Part No.:895279
Mfg Part No: 8808455
UPC/EAN: 4069196006025
Weight:13.75 kg
Type:VX 8808455

Product information for Rittal 8808455:

The Rittal VX protective roof, type VX 8808455, is an accessory for enclosures of the VX system, specifically designed for enclosures with a width and depth of 800 mm each. It serves as a protective element for the upper enclosure component and prevents the accumulation of standing water and contamination from above due to its sloped shape. The product is manufactured from stainless steel 1.4301 (AISI 304), a material known for its high corrosion resistance and mechanical strength in industrial environments. The surface is finished with a brushed finish, grain 400, providing a uniform, easy-to-clean, and aesthetically pleasing surface texture.

Applications
This protective roof is suitable for use in industrial facilities where enclosures are exposed to increased contamination or moisture. It protects particularly against rain, splashing water, and other external influences that could enter through the top of the enclosure. Typical applications include outdoor environments or production areas with high cleanliness requirements.

Functions and Features in Detail
The protective roof features a sloped design that enables effective drainage of precipitation and liquids. This prevents the formation of standing water on the surface, thereby increasing the service life of the enclosure and the functionality of installed components. The product is specifically designed for VX enclosures with dimensions of 800 mm width and 800 mm depth, ensuring an exact fit to the intended enclosure models.

Technology Explained Simply
The use of stainless steel 1.4301 (AISI 304) ensures high resistance to atmospheric influences such as humidity, salt spray, or weak acids, commonly found in many industrial environments. The brushed finish with grain 400 offers a good balance between visual quality and functionality, as it is easy to clean and provides a slight texture that prevents tools or mounting aids from slipping.

Compatibility and Accessories
The protective roof is specifically designed for VX enclosures with dimensions of 800 mm width and 800 mm depth. It is compatible with the VX system and can be combined with additional accessories such as side panels VX 8108460 to create a complete protective structure for the enclosure. Combining it with side panels enables comprehensive coverage of the enclosure flanks, thereby increasing protection against external influences.

Installation and Mounting
Mounting is carried out at the designated attachment points of the VX enclosure. The included fastening material enables a secure and durable connection. Installation requires no special tools or additional components, as the protective roof is directly attached to the enclosure. The sloped shape of the roof facilitates installation, as it can be easily aligned with the top edge of the enclosure.

Operational Advantages
The protective roof enhances the operational safety of the enclosure by reducing exposure to moisture and contamination. This extends the service life of the electrical and electronic components installed inside. The use of stainless steel ensures high long-term stability, even under harsh environmental conditions. Compliance with UL 50E Type Ratings (Type 1, Type 3R, Type 4, Type 4X, Type 12) confirms suitability for various environments, including damp or dusty areas.

The product is available in a packaging unit of one piece and has a net weight of 12 kg. The customs tariff number is 94039910.

General
MaterialStainless steel 1.4301 (AISI 304)
Surface protectionLinear grind, grit 400
Scope of deliveryIncluding mounting hardware
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 4X, Type 12
Suitable forCabinet type: VX, width: 800 mm, depth: 800 mm


Product data sheet
Datasheet for Rittal 8808455, EAN: 4069196006025

Questions & answers

What is the delivery time of Rittal 8808455 VX VX protective roof for W x D: 800x800 mm?

The article Rittal 8808455 VX VX protective roof for W x D: 800x800 mm is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8808455 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8808455 VX VX protective roof for W x D: 800x800 mm always at the best possible price. We can give you a discount of 2% on Rittal 8808455 VX VX protective roof for W x D: 800x800 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Rittal 8808455 VX VX protective roof for W x D: 800x800 mm

Rittal 8108460 VX side panels for VX protective roof D:800 mm Rittal LogoRittal 8108460 VX side panels for VX protective roof D:800 mm The product VX 8108460 from Rittal are side parts for the protective roof of the VX enclosure with a depth of 800 mm. These components are used for lateral sealing of add-on modules or bayed ...

Lieske Part No.: 895166
Mfg Part No: 8108460
Type: VX 8108460
74,64 EUR 77,87 EUR
Rittal 8108460 plus VAT
≈ £62.40  |  ≈ $82.48
Made to order · Delivery time approx. 5 workdaysinfo_outline
