Rittal 8800755 VX cable duct, W: 50 mm, D: 80 mm, L: 2000 mm,

Your rating:
Average rating
product review for Rittal 8800755 VX cable duct, W: 50 mm, D: 80 mm, L: 2000 mm,
( 4.4 / 5 ) 23 ratings
Rittal 8800755
This image may differ from the desired article.
Rittal 8800755Rittal 8800755Rittal 8800755Rittal 8800755Rittal 8800755
225,86 EUR 234,90 EUR
( 268,77 EUR incl. VAT )
≈ £189.04  |  ≈ $248.22
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8800755 VX cable duct, W: 50 mm, D: 80 mm, L: 2000 mm,
Datasheet:file_download Download
Lieske Part No.:1441673
Mfg Part No: 8800755
UPC/EAN: 4028177919648
Weight:18.9 kg
Type:VX 8800.755

Product information for Rittal 8800755:

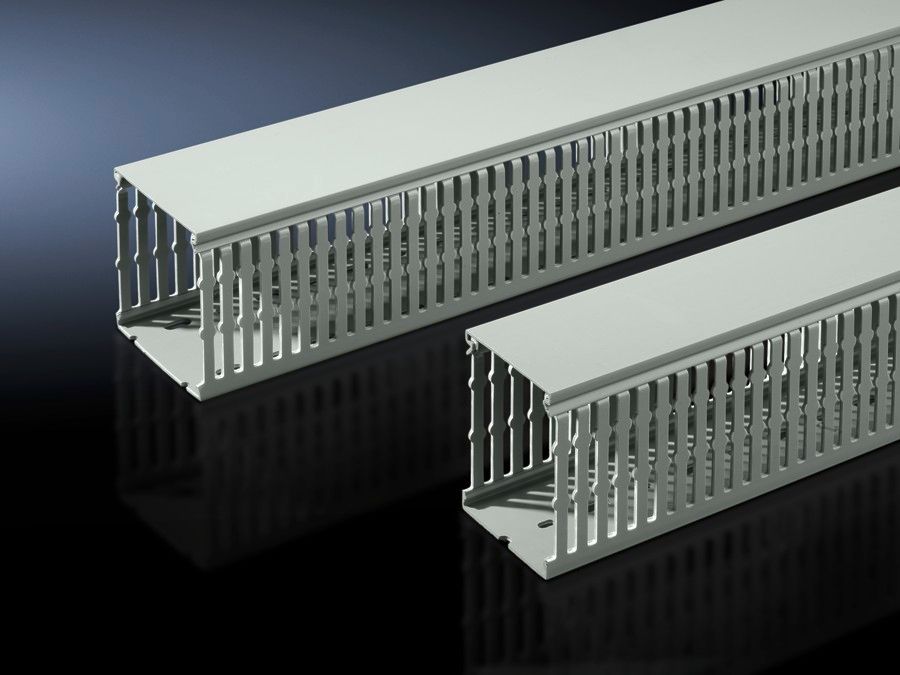

The Rittal VX 8800.755 is a cable duct made of rigid PVC, specifically developed for use in industrial switchgear and enclosures of the VX system. It serves for the structured and secure routing of cables and wiring within enclosures, particularly on mounting plates or on the enclosure profile. The design allows for direct mounting on VX system punching, enabling quick and tool-free installation at predefined mounting points. The duct is available in a length of 2,000 mm and features a width of 50 mm and a depth of 80 mm, making it suitable for use in standard switchgear.

Applications

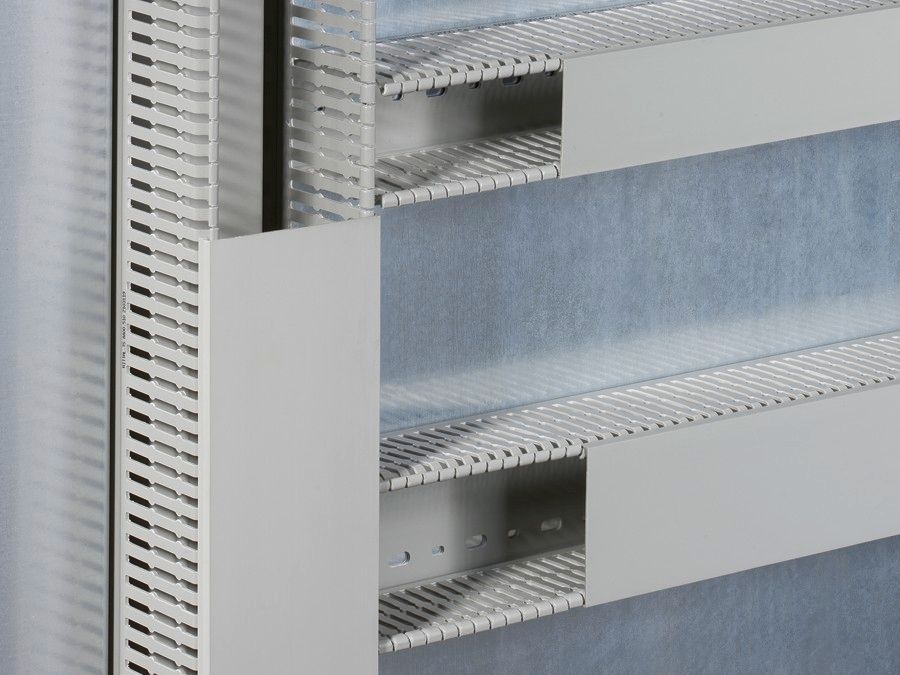

The cable duct is designed for use in industrial electrical installations, particularly in enclosures of the VX series. It is frequently mounted on mounting plates or directly on the enclosure profile to protect cables and wiring from mechanical stress, contamination, and entanglement. The design with DIN and special punching allows for flexible mounting on various surfaces, for example on vertical profiles or horizontal mounting plates. When installing a mounting plate flush with the enclosure frame (installation position ±0 mm), horizontally mounted cable ducts align flush with vertically mounted ducts on the enclosure profile, enabling a clean and visually uniform cabling. For individually installed VX25 enclosures with side panels, the duct can be mounted on the vertical profile to the left and right of the mounting plate.

Functions and Equipment in Detail
The cable duct is made of rigid PVC, which is flame retardant and self-extinguishing. The material properties ensure temperature resistance up to +60 °C, making it suitable for use in environments with moderate thermal loads. The color corresponds approximately to RAL 7030, a gray tone that integrates well visually in industrial enclosures. The delivery includes the cable duct with cover, ensuring that cables are fully enclosed and protected. The rib width is 5.5 mm, and the slot width is 4.5 mm, enabling mounting on the designated punching. The score lines on the ribs and the duct base allow for precise cutting of the duct to individual dimensions without compromising the material structure.

Technology Explained Simply
The use of rigid PVC as material offers a good combination of mechanical strength, chemical resistance, and electrical insulation. The properties of being flame retardant and self-extinguishing meet safety requirements in electrical installations. The temperature resistance up to +60 °C covers typical operating temperatures in enclosures, especially in environments without direct sunlight or high heat generation. The DIN and special punching allow for tool-free mounting at predefined mounting points, enabling quick installation without additional drilling. The score lines are designed so that the duct can be cleanly cut without cracking, increasing flexibility when adapting to different enclosure sizes.

Compatibility and Accessories
The cable duct is specifically designed for mounting on VX systems and matches the standard punching of enclosure profiles. It is compatible with mounting plates and can be mounted on various surfaces within the enclosure. Suitable accessories include hex socket sheet metal screws type 5.5 L13 mm (300 pieces) and the VX insulation cap 8800770. These components support secure fastening and electrical protection of the cabling. The combination with the insulation cap can be useful when mounting on conductive surfaces to avoid short circuits.

Mounting and Installation

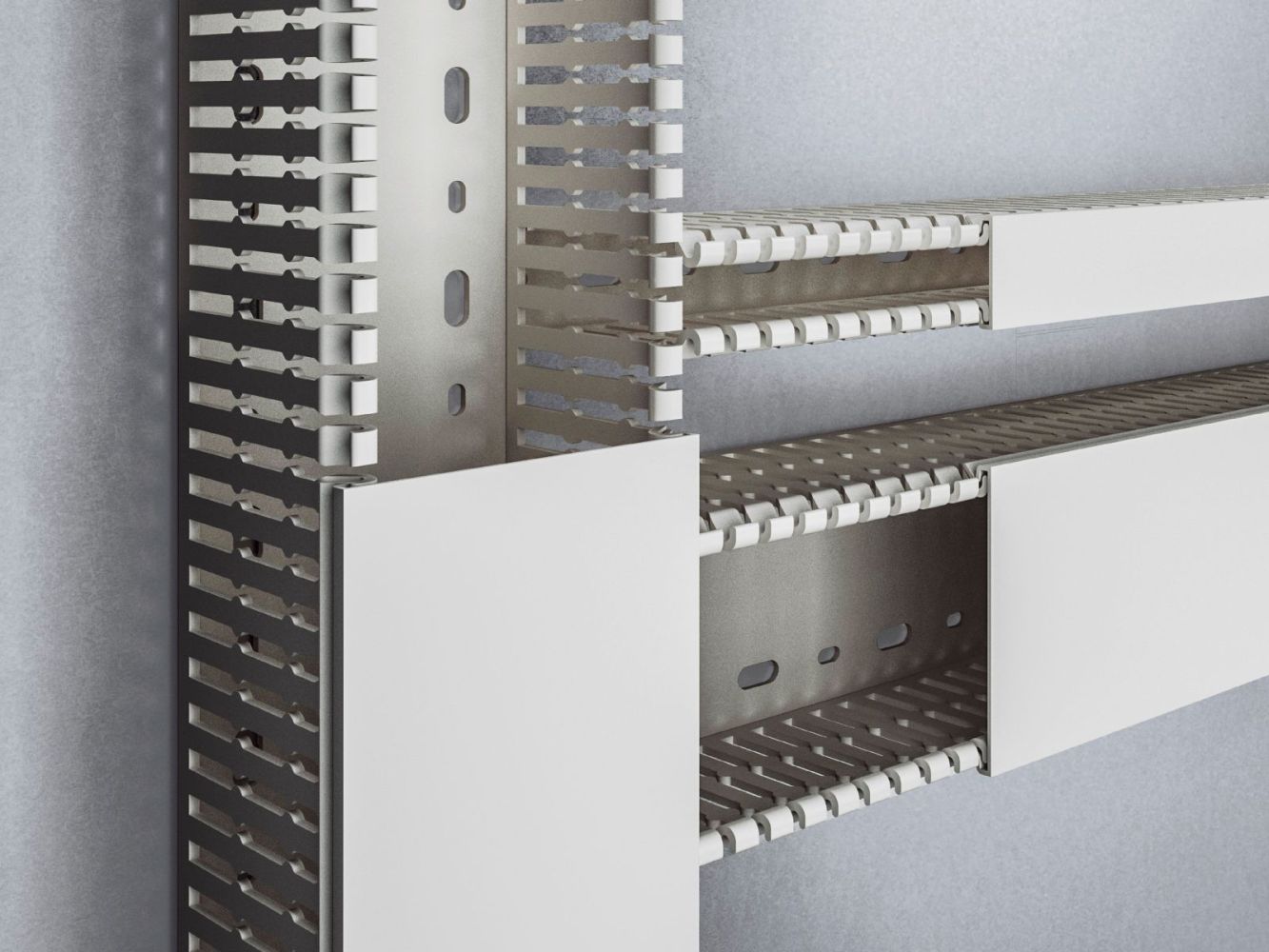

Mounting is done via the predefined punching on mounting plates or on the enclosure profile. The DIN and special punching allow for direct fastening without additional drilling. The score lines on the ribs and the duct base enable precise cutting of the duct to adapt it to individual dimensions. Mounting can be done without tools, although the use of appropriate screws (e.g., hex socket sheet metal screws) is recommended to ensure secure fastening. Horizontal mounting on mounting plates and vertical mounting on the enclosure profile can be flush-ended when the mounting plate is installed flush with the enclosure frame.

Advantages in Operation
The cable duct provides structured and clear cabling, which facilitates maintenance and inspection of switchgear. The material properties ensure high mechanical stability and electrical insulation. The ability to cut allows flexible adaptation to different enclosure sizes and layouts. The flush-end capability at mounting plates and enclosure profiles ensures a clean appearance and prevents gaps where dust or moisture could enter. The use of rigid PVC with the mentioned safety properties contributes to the overall safety of the installation.

General
Modelfor mounting plates, for mounting on VX system perforation
Materialrigid PVC, flame retardant, self-extinguishing, temperature resistant up to +60 °C
ColourSimilar to RAL 7030
Scope of deliveryCable channel with cover
Tab width5,5 mm
Slit width4,5 mm
Mounting optionsWith DIN/special mounting holes for direct mounting on cabinet profile or surfaces, e.g. mounting plates. When the mounting plate is installed flush at the rear of the cabinet frame (installation position ±0 mm), the horizontally mounted cable channels align flush with the cable channels mounted on the cabinet profile. Cable channel 50 mm wide for standalone VX25 cabinets with side walls on the vertical profile left and right of the mounting plate.
NoteCan be shortened for other dimensions.
Width50 mm
Depth80 mm
Length2.000 mm


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8800755, EAN: 4028177919648

Questions & answers

What is the delivery time of Rittal 8800755 VX cable duct, W: 50 mm, D: 80 mm, L: 2000 mm, ?

The article Rittal 8800755 VX cable duct, W: 50 mm, D: 80 mm, L: 2000 mm, is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8800755 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8800755 VX cable duct, W: 50 mm, D: 80 mm, L: 2000 mm, always at the best possible price. We can give you a discount of 2% on Rittal 8800755 VX cable duct, W: 50 mm, D: 80 mm, L: 2000 mm, if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
