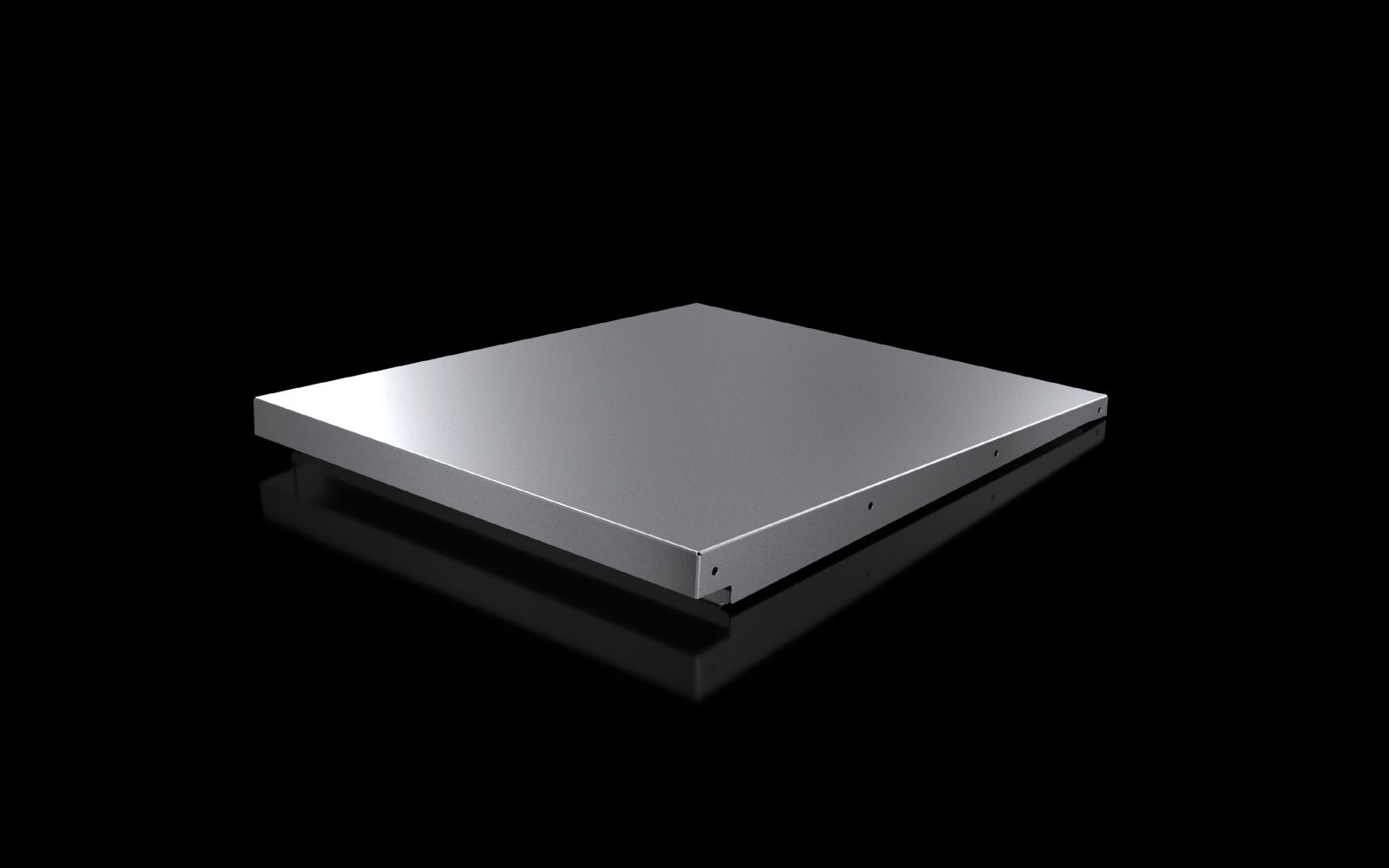

Rittal 8686455 VX VX protective roof for W x D: 600x600 mm

Your rating:
Average rating
product review for Rittal 8686455 VX VX protective roof for W x D: 600x600 mm
( 0 / 5 ) 0 ratings
Rittal 8686455
This image may differ from the desired article.
208,52 EUR 217,57 EUR
( 248,14 EUR incl. VAT )
≈ £174.32  |  ≈ $230.41
plus delivery charges: 100,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 8686455 VX VX protective roof for W x D: 600x600 mm
Datasheet:file_download Download
Lieske Part No.:895273
Mfg Part No: 8686455
UPC/EAN: 4069196006001
Weight:9 kg
Type:VX 8686455

Product information for Rittal 8686455:

The Rittal VX protective roof, type 8686455, is a protective roof for enclosures of the VX housing type with a width and depth of 600 mm each. It is designed to cover the upper housing opening and protects the interior from standing moisture and contamination from above. The construction with a slope enables effective drainage of precipitation and prevents water accumulation on the surface. The product is made of stainless steel 1.4301 (AISI 304), a material known for its corrosion resistance and mechanical strength in industrial environments. The surface features a linear finish, grit 400, providing a uniform, easy-to-clean, and aesthetically pleasing appearance.

Applications
This protective roof is designed for use in industrial facilities, particularly in environments where enclosures must be protected from precipitation, splashing water, or dust. It is suitable for both outdoor and indoor applications where long-term protection against environmental influences is required. Typical use cases include production plants, power supply systems, or machine building, as it complements the integrated protection function of the VX housing.

Functions and Equipment in Detail
The protective roof is specifically designed for VX housings with dimensions of 600 mm width and 600 mm depth. It is mounted directly onto the housing and secures the upper surface against external influences. The delivery includes fastening material required for installation. The fastening is done via designated mounting points on the housing, ensuring a stable and durable connection.

Technology Explained Simply
The stainless steel 1.4301 (AISI 304) material offers high resistance to corrosion, especially in humid or slightly aggressive environments. The linear finish with grit 400 provides a uniform, easy-to-clean surface structure that also offers a professional appearance. The slope of the roof is dimensioned to allow precipitation to drain quickly and prevent water accumulation. The construction is robust and designed for industrial use.

Compatibility and Accessories
The protective roof is exclusively intended for VX housings with the specified dimensions (600 mm width, 600 mm depth). As a suitable accessory, the VX 8106460 side parts for VX protective roof D:600 mm are offered, which complement the side coverage and provide additional protection. The combination of protective roof and side parts enables comprehensive coverage of the housing.

Installation and Mounting
Mounting is done by securing the protective roof to the designated mounting points on the VX housing. The included fastening material allows for easy and secure installation. Installation typically requires no additional tools.

Operational Advantages
The protective roof increases the service life of the enclosure by protecting it from moisture and contamination. The use of stainless steel 1.4301 ensures high long-term stability, even under difficult environmental conditions. The slope of the roof prevents water from adhering, reducing the risk of corrosion or short circuits. The surface finish facilitates cleaning and maintenance. Compliance with UL 50E Type Ratings (Type 1, Type 3R, Type 4, Type 4X, Type 12) ensures conformity with international protection requirements.

Type Rating according to UL 50E
The product meets the requirements of the UL 50E standard in the categories Type 1, Type 3R, Type 4, Type 4X, and Type 12. These certifications refer to protection against dust, splashing water, dirt, and other environmental influences. Type 4X refers to protection against splashing water and dust, Type 3R to protection against splashing water and sunlight, and Type 12 to protection against dust and splashing water. These certifications are relevant for use in various industrial environments.

Material and Surface
The use of stainless steel 1.4301 (AISI 304) ensures high corrosion resistance and mechanical strength. The linear finish, grit 400 provides a uniform, easy-to-clean, and aesthetically pleasing surface. This combination is particularly suitable for use in industrial facilities, where high requirements are placed on material quality and ease of maintenance.

Suitable For
The protective roof is specifically designed for VX housings with a width of 600 mm and a depth of 600 mm. It is not suitable for other housing types or dimensions. The precise fit ensures a secure and tight coverage of the housing.

Delivery Contents
The product is delivered inclusive of fastening material required for mounting on the VX housing.

General
MaterialStainless steel 1.4301 (AISI 304)
Surface protectionLinear grind, grit 400
Scope of deliveryIncluding mounting hardware
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 4X, Type 12
Suitable forEnclosure type: VX, Width: 600 mm, Depth: 600 mm


Product data sheet
Datasheet for Rittal 8686455, EAN: 4069196006001

Questions & answers

What is the delivery time of Rittal 8686455 VX VX protective roof for W x D: 600x600 mm?

The article Rittal 8686455 VX VX protective roof for W x D: 600x600 mm is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8686455 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8686455 VX VX protective roof for W x D: 600x600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8686455 VX VX protective roof for W x D: 600x600 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Rittal 8686455 VX VX protective roof for W x D: 600x600 mm

Rittal 8106460 VX side panels for VX protective roof D:600 mm Rittal LogoRittal 8106460 VX side panels for VX protective roof D:600 mm The product VX 8106460 from Rittal are side parts for a protective roof in the VX system, specifically designed for enclosures with a depth of 600 mm. These components serve to seal the side openings ...

Lieske Part No.: 895161
Mfg Part No: 8106460
Type: VX 8106460
68,61 EUR 71,58 EUR
Rittal 8106460 plus VAT
≈ £57.36  |  ≈ $75.81
Made to order · Delivery time approx. 5 workdaysinfo_outline
