Rittal 8618050 VX viewing door, W x H: 800x2200 mm

Your rating:
Average rating
product review for Rittal 8618050 VX viewing door, W x H: 800x2200 mm
( 4.4 / 5 ) 15 ratings
Rittal 8618050
This image may differ from the desired article.
Rittal 8618050Rittal 8618050Rittal 8618050
-8% 520,95 EUR 564,20 EUR
( 619,93 EUR incl. VAT )
≈ £436.04  |  ≈ $572.52
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 8618050 VX viewing door, W x H: 800x2200 mm
Datasheet:file_download Download
Lieske Part No.:1440911
Mfg Part No: 8618050
UPC/EAN: 4028177921023
Weight:18 kg
Type:VX 8618.050

Product information for Rittal 8618050:

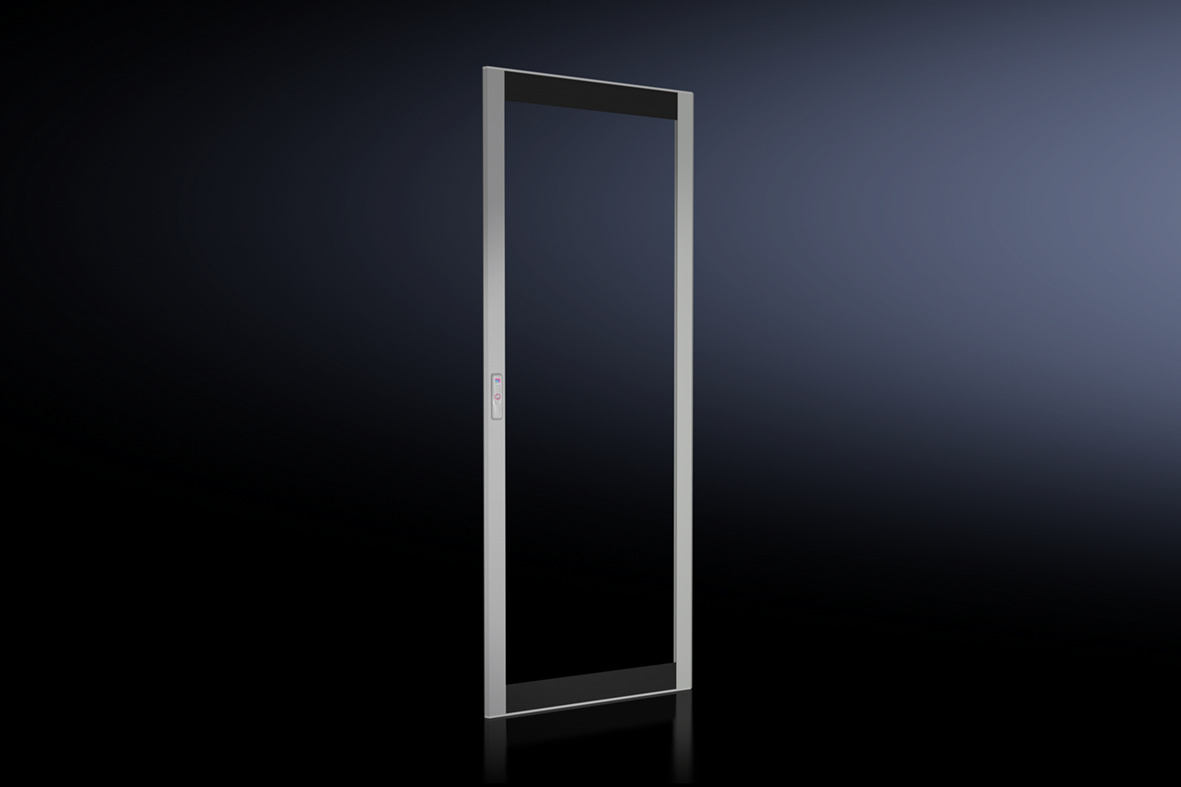

The Rittal VX 8618.050 is a viewing door for enclosures of the VX system, designed as a replacement for a sheet metal door or rear panel. It enables visual monitoring of the enclosure's interior without opening the door, and is specifically designed for enclosures with a width of 800 mm and a height of 2,200 mm. The door consists of a frame made of aluminium extruded profile and a viewing pane made of single-glazed safety glass with a thickness of 3 mm. The surface is powder-coated, providing a robust and durable coating. The frame is finished in RAL 7035, while the inner printed mask of the viewing pane is in RAL 9005.

Applications
The viewing door is intended for use in industrial environments where continuous monitoring of devices within the enclosure is required. It is particularly suitable for production plants, automation systems, or installations of control and regulation technology, where operational safety and rapid fault detection are of high priority. The protection rating IP 55 according to IEC 60 529 ensures protection against dust and splashing water, making the door suitable for outdoor use or humid indoor environments. The IK code IK08 indicates that the door can withstand mechanical impacts such as shocks or vibrations to a certain extent.

Functions and Equipment in Detail
The door is supplied with a bar lock equipped with a double-bar lock insert to ensure secure and reliable locking. Installation is carried out using four 180° hinges, which allow full opening of the door and thus ensure unobstructed access to the enclosure's interior. The single-glazed safety glass viewing pane provides clear visibility of the devices inside without compromising the mechanical stability of the door. The powder-coated surface ensures high corrosion resistance and a uniform, visually appealing appearance.

Technical Explanation
The aluminium extruded profile of the frame offers high strength at low weight, facilitating installation while ensuring the mechanical stability of the door. The single-glazed safety glass is designed to avoid sharp splinters in case of breakage, enhancing safety during operation. The IP 55 protection rating means the door is dust-tight and protected against splashing water, making it suitable for use in humid environments or outdoors. The IK code IK08 describes the mechanical resistance against impacts and vibrations, which is important for industrial applications.

Compatibility and Accessories
The viewing door is specifically designed for enclosures of the VX system with dimensions of 800 mm width and 2,200 mm height. When installed in place of a rear panel, additional locking components for frame 8618.110 are required. As compatible accessories, the VX locking component is offered, which can be used as needed to supplement the door.

Installation and Mounting
Installation is carried out in place of a sheet metal door or rear panel. The four 180° hinges allow full opening of the door, facilitating access to the enclosure's interior. The bar lock with double-bar lock insert ensures secure locking.

Operational Advantages
The viewing door enables continuous visual monitoring of devices within the enclosure without opening the door. This reduces the risk of operational disruptions and allows for faster fault detection. The high mechanical stability and IP 55 protection rating ensure reliable performance even in demanding environments. The powder-coated surface is easy to maintain and resistant to dirt and corrosion.

Type rating according to UL 50E
The viewing door meets the requirements of the type rating according to UL 50E in categories Type 1 and Type 12, indicating suitability for use in dry indoor environments as well as in environments with limited splashing water and dust protection. This certification is particularly relevant for markets in North America where these standards apply.

Scope of Delivery
The scope of delivery includes the viewing door, a bar lock with double-bar lock insert, and four 180° hinges. These components are intended for installation in place of a sheet metal door.

General
MaterialFrame: aluminium extruded profile, viewing panel: single-pane safety glass, 3 mm
Surface protectionPowder-coated
ColourFrame: RAL 7035, viewing window (internally printed mask): RAL 9005
Scope of deliveryVision door, bar lock with double-bar insert, 180° hinges (4 pieces)
IK codeIK08
NoteWhen mounted instead of rear panel, locking parts for frame 8618.110 are required
Type rating according to UL 50EType 1, Type 12
Degree of protection IP according to IEC 60 529IP 55
Suitable forCabinet type: VX, Width: = 800 mm, Height: = 2.200 mm


Product data sheet
Datasheet for Rittal 8618050, EAN: 4028177921023

Questions & answers

What is the delivery time of Rittal 8618050 VX viewing door, W x H: 800x2200 mm?

The article Rittal 8618050 VX viewing door, W x H: 800x2200 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8618050 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8618050 VX viewing door, W x H: 800x2200 mm always at the best possible price. We can give you a discount of 2% on Rittal 8618050 VX viewing door, W x H: 800x2200 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
