Rittal 8617655 VX partial mounting plate holder

Your rating:
Average rating
product review for Rittal 8617655 VX partial mounting plate holder
( 4.8 / 5 ) 4 ratings
Rittal 8617655
This image may differ from the desired article.
Rittal 8617655Rittal 8617655Rittal 8617655Rittal 8617655Rittal 8617655
18,86 EUR
( 22,44 EUR incl. VAT )
≈ £15.77  |  ≈ $20.84
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8617655 VX partial mounting plate holder
Datasheet:file_download Download
Lieske Part No.:1597963
Mfg Part No: 8617655
UPC/EAN: 4028177924444
Weight:0.209 kg
Type:VX 8617655

Product information for Rittal 8617655:

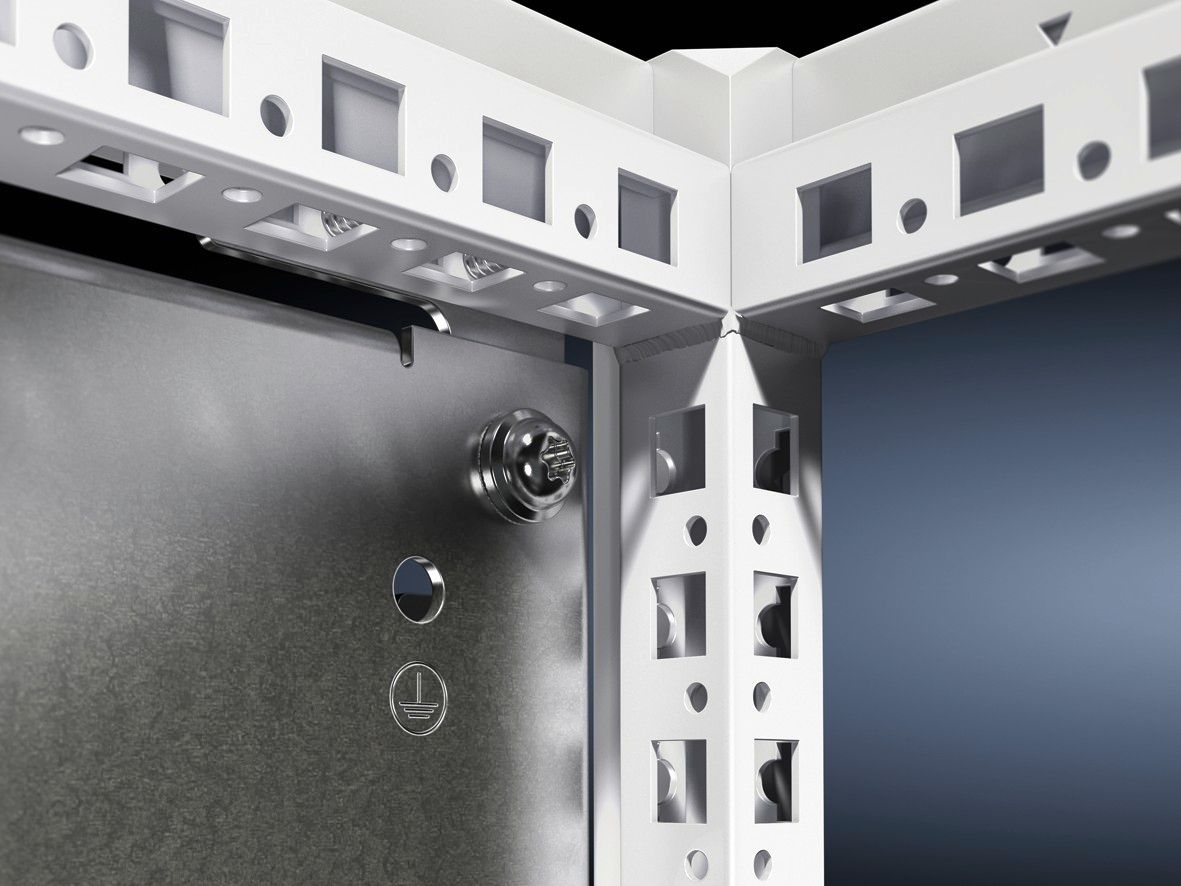

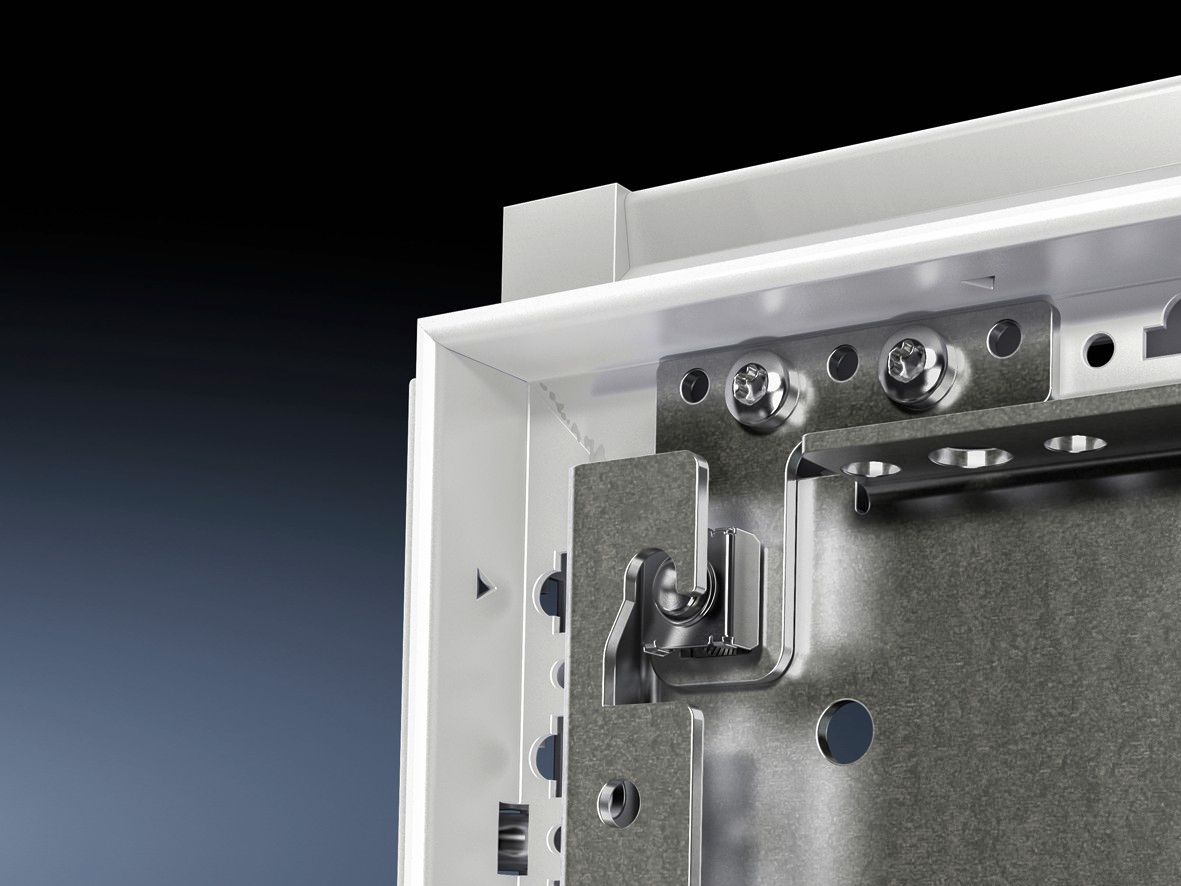

The partial mounting plate holder VX 8617655 from Rittal is a system accessory for enclosures, specifically designed for mounting partial mounting plates in the VX system. It enables secure and flexible fixation of the plate to the enclosure wall, allowing the mounting plate to be installed 20 mm behind the enclosure frame. This construction provides better access to the installed components and facilitates maintenance and servicing. The fixation is done from the outside of the enclosure frame, enabling installation without access to the interior of the enclosure. In service cases, the partial mounting plate can also be removed from the inside, making maintenance and replacement procedures more efficient.

Partial mounting plate holder is made of sheet steel with a zinc-coated, chromated surface. This coating provides high corrosion protection and ensures long-term use in industrial environments. The material selection guarantees sufficient strength and stability to securely hold the mounting plates without deformation or wear.

Applications include mounting partial mounting plates in enclosures of the VX system, particularly in installations requiring modular and flexible component mounting. The 20 mm setback is especially beneficial when space inside the enclosure is limited or when improved accessibility for maintenance is desired. The ability to remove the plate from the inside is particularly useful in installations where maintenance is performed from the inside without needing to open the entire enclosure front.

Functions and equipment in detail include the delivery of four partial mounting plate holders per packaging unit. The holders are supplied with the necessary mounting material to enable installation without additional tools or materials. Fixation is directly to the enclosure frame, with the holders designed to securely hold the partial mounting plate while enabling clean and orderly installation.

Technology explained simply shows that the 20 mm setback is achieved through the special shape of the holders, which positions the mounting plate behind the front edge of the enclosure frame. This expands the working space inside the enclosure and allows better placement of components. External fixation ensures installation is possible even with the enclosure front closed, which is advantageous for installations in operation.

Compatibility and accessories refers exclusively to use with partial mounting plates of the VX system. The holders are specifically developed for these components and ensure secure and stable mounting.

Mounting and installation are performed by fixing the holders to the enclosure wall from the outside. The pre-drilled holes and included mounting material allow for quick and secure installation. The partial mounting plate is then inserted into the holders and secured.

Operational advantages include improved accessibility for maintenance and servicing, modular mounting, and flexibility in component placement. The 20 mm setback allows better component placement within the enclosure, while the ability to remove the plate from the inside simplifies maintenance. The robust construction from zinc-coated, chromated sheet steel ensures long service life and high reliability in industrial applications.

General
Materialsteel sheet
Surface protectionZinc-plated, chromated

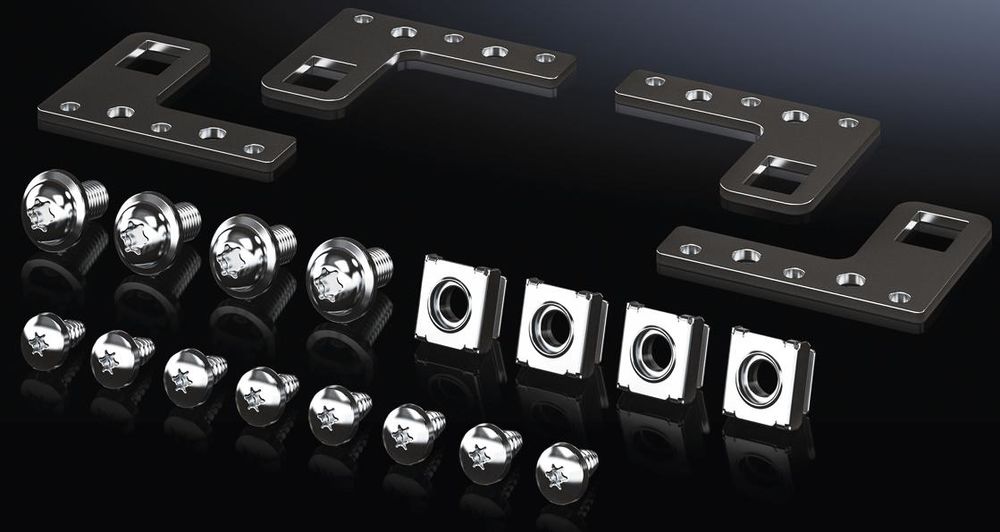

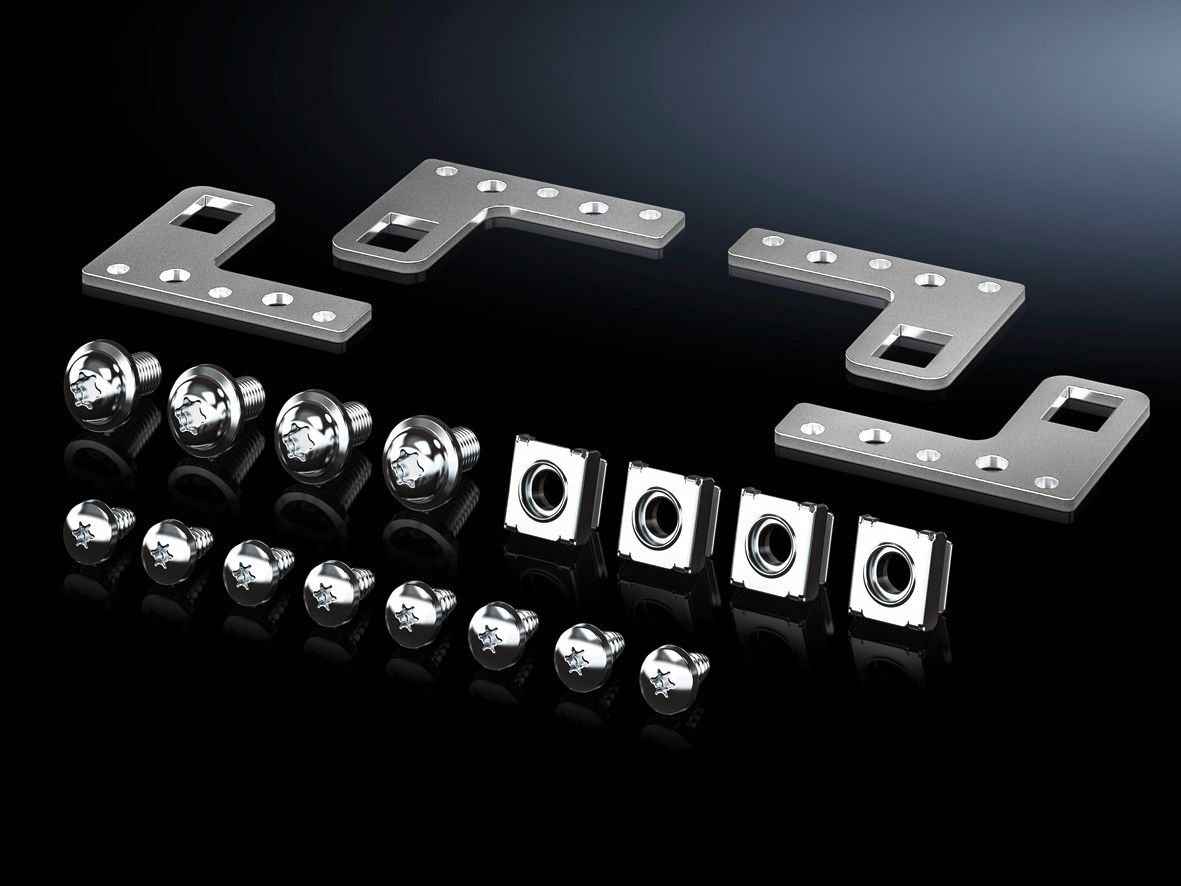

Scope of delivery4 partial mounting plate holders, including fastening material


Product data sheet
Datasheet for Rittal 8617655, EAN: 4028177924444

Questions & answers

What is the delivery time of Rittal 8617655 VX partial mounting plate holder?

The article Rittal 8617655 VX partial mounting plate holder is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617655 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8617655 VX partial mounting plate holder always at the best possible price. We can give you a discount of 2% on Rittal 8617655 VX partial mounting plate holder if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
