Rittal 8617505 VX baying kit for VX/TS

Your rating:
Average rating
product review for Rittal 8617505 VX baying kit for VX/TS
( 4.5 / 5 ) 4 ratings
Rittal 8617505
This image may differ from the desired article.
Rittal 8617505Rittal 8617505Rittal 8617505Rittal 8617505
48,30 EUR 50,23 EUR
( 57,48 EUR incl. VAT )
≈ £40.38  |  ≈ $53.37
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8617505 VX baying kit for VX/TS
Datasheet:file_download Download
Lieske Part No.:1598640
Mfg Part No: 8617505
UPC/EAN: 4028177930889
Weight:1.6 kg
Type:VX 8617505

Product information for Rittal 8617505:

The Rittal VX 8617505 is a baying kit for integrating VX25 enclosures into existing TS 8 enclosure rows. It enables the expansion of already installed TS 8 systems with VX25 enclosures, ensuring a consistent and modular arrangement in industrial environments. The kit consists of eight baying connectors made of sheet steel, a seal, and the required mounting materials. The enclosures are connected via the baying connectors, which ensure a stable mechanical anchoring between VX25 and TS 8 enclosures. The seal provides a closed connection, which, together with a baying cover on top, achieves protection rating IP 54. This protection rating safeguards against dust and splashing water, enabling use in outdoor environments or industrial settings with increased contamination risk.

Applications
This baying kit is specifically designed for expanding TS 8 enclosure rows with VX25 enclosures. It is used in industrial facilities such as production halls, power supply installations, or automation technology, where a flexible and scalable enclosure arrangement is required. Compatibility with VX and TS enclosure types allows seamless integration into existing systems without additional retrofitting. Using this kit is particularly advantageous when existing TS 8 installations are to be expanded with modern VX25 enclosures without redesigning the entire arrangement.

Functions and Equipment in Detail

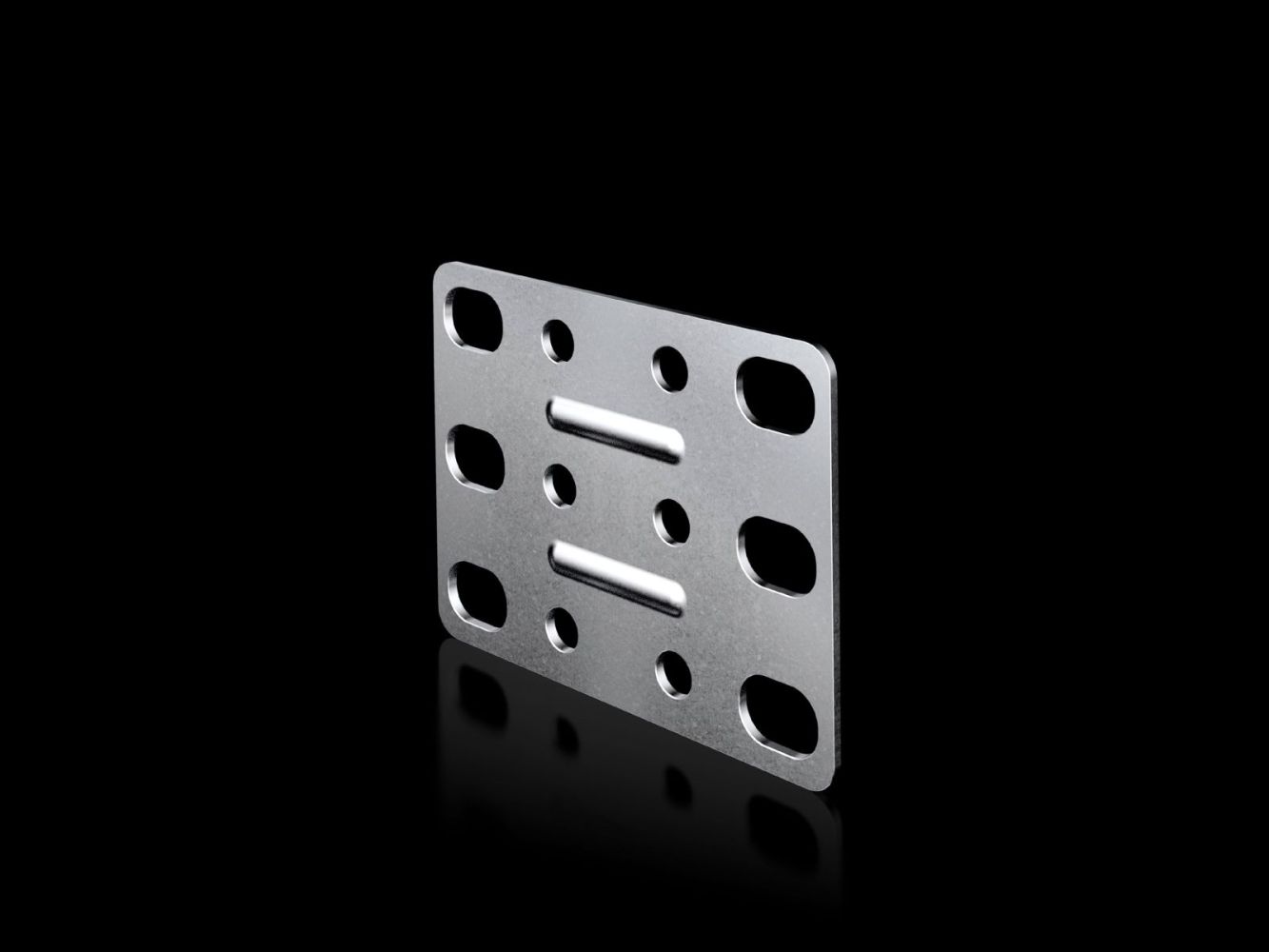

The kit includes eight baying connectors made of sheet steel, ensuring a robust mechanical connection between enclosures. The material selection guarantees high strength and durability under industrial conditions. The seal, included in the delivery, prevents dust and moisture ingress at the connection points. The connection is established via the baying connectors, which are mounted on the side panels of the enclosures.

Technology Explained Simply
The protection rating IP 54, achieved by combining the seal and the baying cover on top, protects the interior of the enclosures from dust and splashing water. This is especially important in environments with high contamination risk or outdoor use. The baying connectors made of sheet steel provide a stable mechanical connection, protecting the enclosures against vibrations and mechanical stress. The use of sheet steel ensures high strength and resistance to corrosion and mechanical stress.

Compatibility and Accessories
The baying kit is specifically developed for connecting VX25 enclosures with TS 8 enclosures. It is compatible with VX and TS enclosure types, as specified in the manufacturer’s data sheet. Using this kit requires no additional components or modifications to existing enclosures.

Mounting and Installation

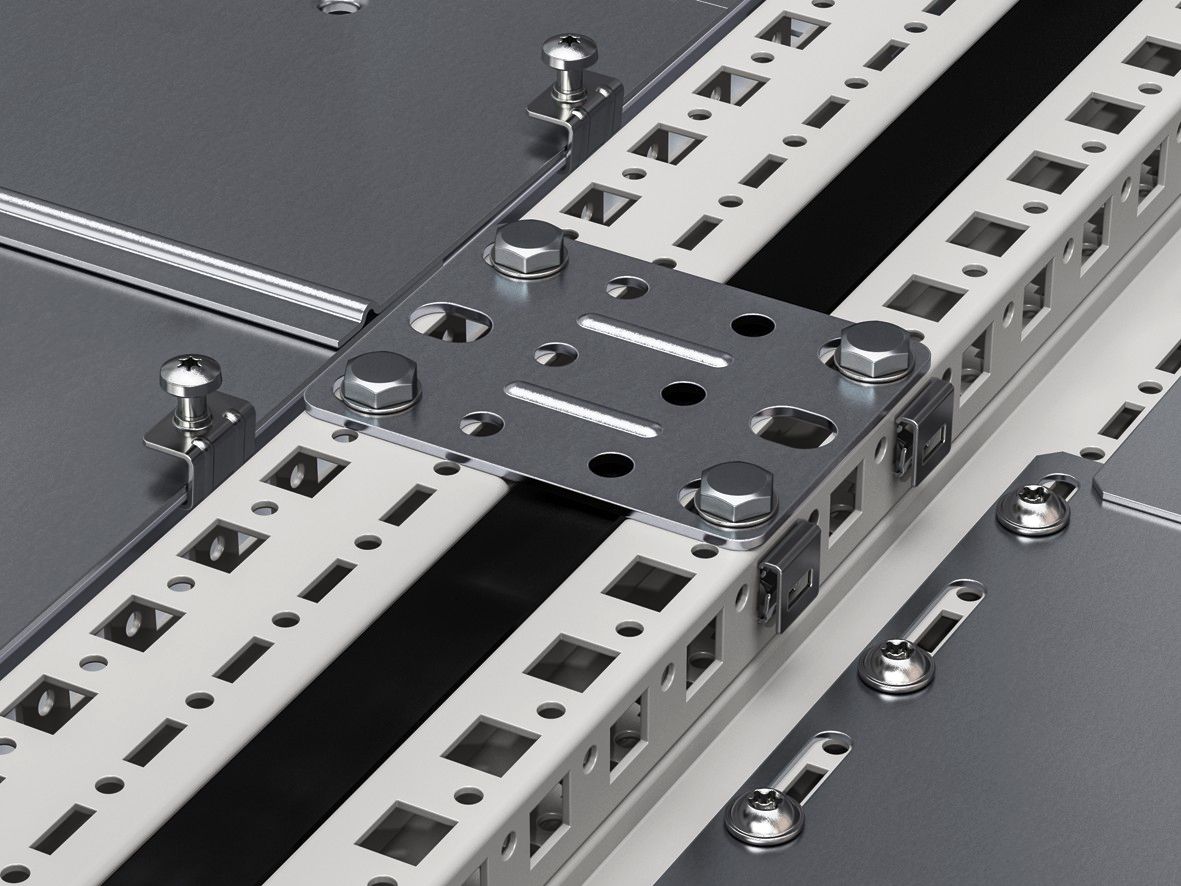

Installation is performed by mounting the eight baying connectors on the side panels of the VX25 and TS 8 enclosures. The included mounting materials allow for easy and secure installation. The seal is placed at the connection point to ensure a closed joint. The baying cover on top must be additionally installed to achieve protection rating IP 54.

Operational Advantages
Using the baying kit enables flexible expansion of existing enclosure rows without extensive retrofitting. The mechanical stability of the connection ensures a secure and long-lasting installation. Achieving protection rating IP 54 through the combination of seal and baying cover on top protects the electrical components inside the enclosures from environmental influences. Compatibility with VX25 and TS 8 enclosures allows seamless integration into existing systems, simplifying planning and installation. The use of sheet steel for the baying connectors ensures high strength and durability under industrial conditions.

General
MaterialStacking connector: sheet steel
Scope of delivery8 stacking connectors, 1 gasket, including mounting material
NoteIP 54 in conjunction with top mounting cover
Suitable forEnclosure type: VX, TS


Product data sheet
Datasheet for Rittal 8617505, EAN: 4028177930889

Questions & answers

What is the delivery time of Rittal 8617505 VX baying kit for VX/TS ?

The article Rittal 8617505 VX baying kit for VX/TS is currently in stock

According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617505 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8617505 VX baying kit for VX/TS always at the best possible price. We can give you a discount of 2% on Rittal 8617505 VX baying kit for VX/TS if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
