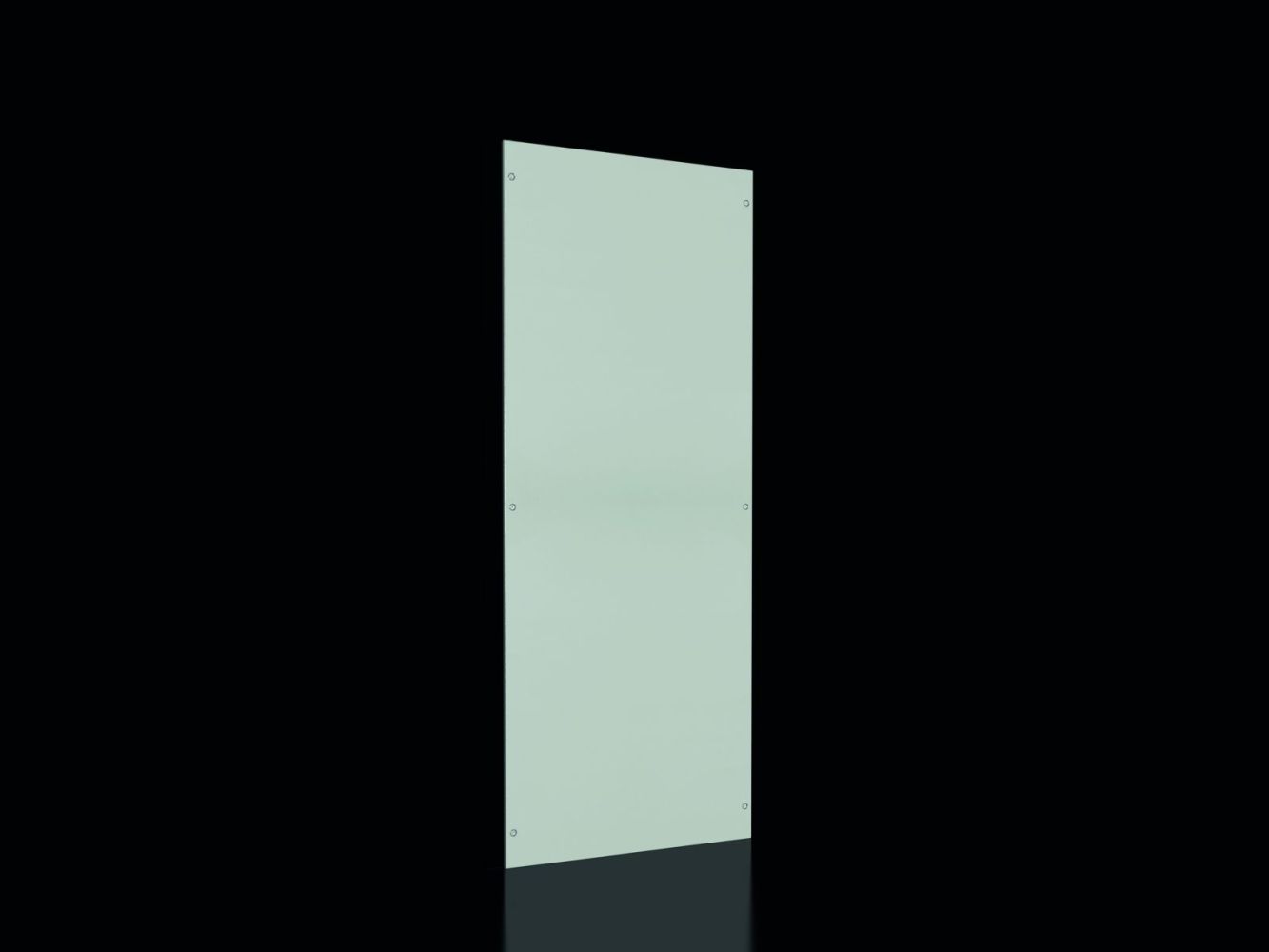

Rittal 8108760 EMV side panel for VX, H x D: 2000x800 mm, RAL 7035

Your rating:
Average rating
product review for Rittal 8108760 EMV side panel for VX, H x D: 2000x800 mm, RAL 7035
( 0 / 5 ) 0 ratings
Rittal 8108760
This image may differ from the desired article.
-8% 401,35 EUR 434,67 EUR
( 477,61 EUR incl. VAT )
≈ £335.93  |  ≈ $441.08
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 8108760 EMV side panel for VX, H x D: 2000x800 mm, RAL 7035
Datasheet:file_download Download
Lieske Part No.:592959
Mfg Part No: 8108760
UPC/EAN: 4028177947245
Weight:38.8 kg
Type:VX 8108760

Product information for Rittal 8108760:

The Rittal VX 8108760 is an EMV side panel for enclosures of type VX, specifically designed for a height of 2,000 mm and a depth of 800 mm. The product serves as side cladding for industrial enclosures and ensures a high level of protection against electromagnetic interference (EMV). The side panel is manufactured from steel sheet with a thickness of 1.5 mm, providing sufficient mechanical stability and durability in industrial environments. The surface is coated with a zinc-magnesium coating and externally powder-coated, achieving high corrosion resistance and a uniform, robust surface. The color corresponds to RAL 7035, a gray standard tone commonly used in industry.

Applications
The EMV side panel is designed for use in industrial plants where reliable protection against electromagnetic interference is required. It is used in enclosures of the VX system, particularly in installations with high electrical power or in environments with strong electromagnetic fields, such as in automation technology, manufacturing industry, or power supply. The side panel is intended for enclosures with an exact height of 2,000 mm and a depth of 800 mm, ensuring a precise fit.

Functions and Equipment in Detail
A central feature of the VX 8108760 is the automatic equipotential bonding via the mounting elements. This ensures that all metallic parts of the enclosure are maintained at the same electrical potential, minimizing the risk of sparking or electric shocks. Additionally, the side panel provides high EMV protection through a special EMV seal, which enhances the electromagnetic shielding of the enclosure. The seal prevents electromagnetic interference from entering the enclosure, protecting the functionality of sensitive electronic components.

Technology Explained Simply
The side panel is made of steel sheet with a thickness of 1.5 mm, providing sufficient strength for industrial use. The zinc-magnesium coating serves as corrosion protection and extends the product's lifespan. The external powder coating in RAL 7035 ensures a uniform, abrasion-resistant surface that remains durable even under mechanical stress. The protection class IP 55 according to EN 60 529 means that the side panel is dust-tight and protected against splashing water, making it suitable for use in humid or dusty environments. The type rating according to UL 50E in category Type 1 and Type 12 confirms suitability for indoor use and environments with light splashing water or dirt.

Compatibility and Accessories
The EMV side panel is specifically designed for enclosures of the VX system with a height of 2,000 mm and a depth of 800 mm. It is part of a modular enclosure system consisting of various components such as front doors, base plates, lids, and side panels. The side panel is supplied with mounting hardware required for installation on the enclosure. The packaging unit includes two pieces, sufficient for mounting both sides of an enclosure.

Mounting and Installation
Installation is carried out at the designated mounting points of the enclosure. The mounting elements included in the delivery enable secure and quick installation. The automatic equipotential bonding function is activated through the mounting elements as soon as the side panel is attached to the enclosure. The EMV seal ensures a tight connection between the side panel and the enclosure, guaranteeing electromagnetic shielding.

Operational Advantages
The VX 8108760 provides reliable protection against electromagnetic interference, increasing the functionality and lifespan of sensitive electronic components within the enclosure. The IP 55 protection class protects against dust and splashing water, expanding the range of applications in various industrial environments. The robust construction from steel sheet with zinc-magnesium coating and powder coating ensures a long service life and low maintenance requirements. The automatic equipotential bonding function reduces the risk of electrical hazards and improves operational safety. The delivery with mounting hardware simplifies installation and reduces effort for the user.

General
MaterialSheet steel, 1.5 mm
Surface protectionWith zinc-magnesium coating, exterior powder-coated
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Degree of protection IP according to EN 60 529IP 55
Type rating according to UL 50EType 1, Type 12
Suitable forCabinet type: VX, height: = 2,000 mm, depth: = 800 mm


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8108760, EAN: 4028177947245

Questions & answers

What is the delivery time of Rittal 8108760 EMV side panel for VX, H x D: 2000x800 mm, RAL 7035?

The article Rittal 8108760 EMV side panel for VX, H x D: 2000x800 mm, RAL 7035 is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8108760 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8108760 EMV side panel for VX, H x D: 2000x800 mm, RAL 7035 always at the best possible price. We can give you a discount of 2% on Rittal 8108760 EMV side panel for VX, H x D: 2000x800 mm, RAL 7035 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
