Rittal 7859090 PSM Zero-U-Space, length: 1695 mm, feeders: 1

Your rating:
Average rating
product review for Rittal 7859090 PSM Zero-U-Space, length: 1695 mm, feeders: 1
( 4.5 / 5 ) 4 ratings
Rittal 7859090
This image may differ from the desired article.
Rittal 7859090Rittal 7859090Rittal 7859090Rittal 7859090Rittal 7859090Rittal 7859090
-10% 363,40 EUR 401,69 EUR
( 432,45 EUR incl. VAT )
≈ £304.17  |  ≈ $399.38
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: 3 pieces
1x Rittal 7859090 PSM Zero-U-Space, length: 1695 mm, feeders: 1
Datasheet:file_download Download
Lieske Part No.:1910656
Mfg Part No: 7859090
UPC/EAN: 4028177956643
Weight:5.2 kg
Type:DK 7859090

Product information for Rittal 7859090:

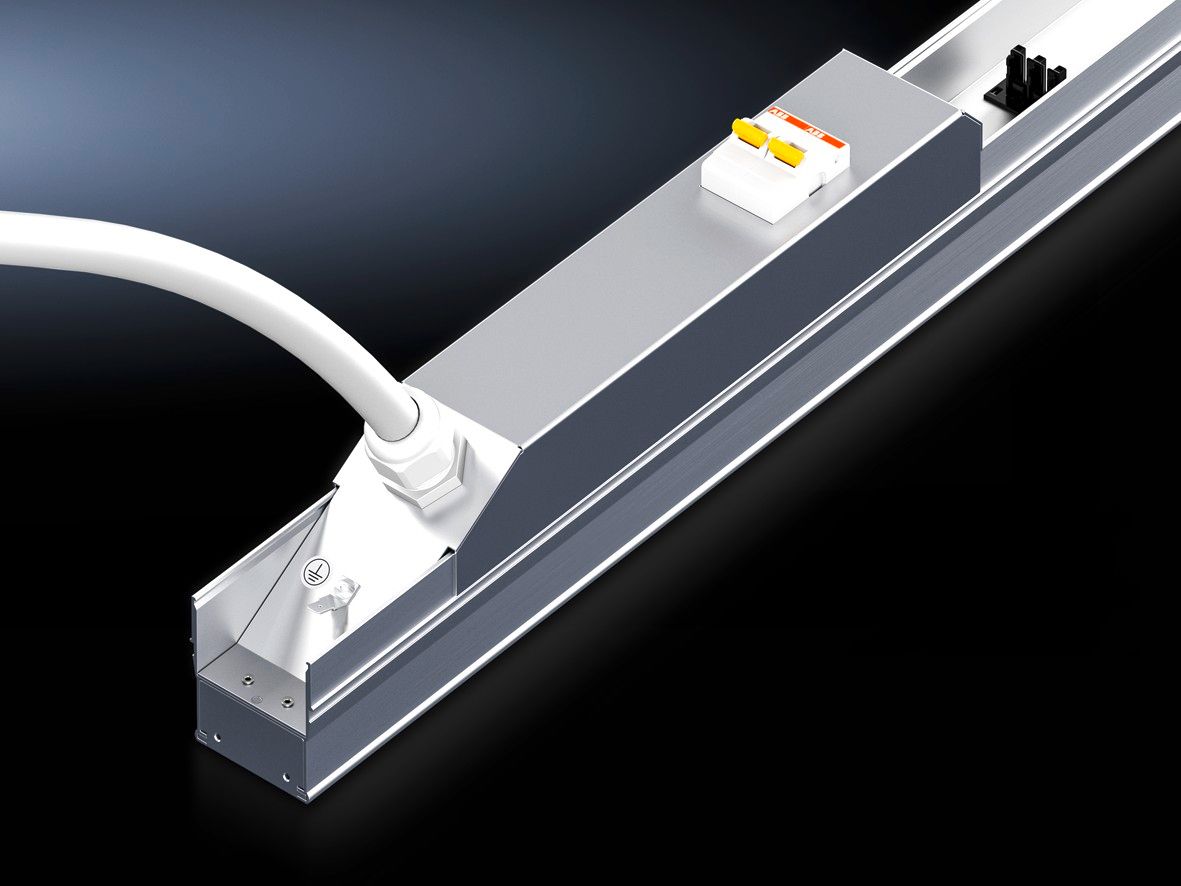

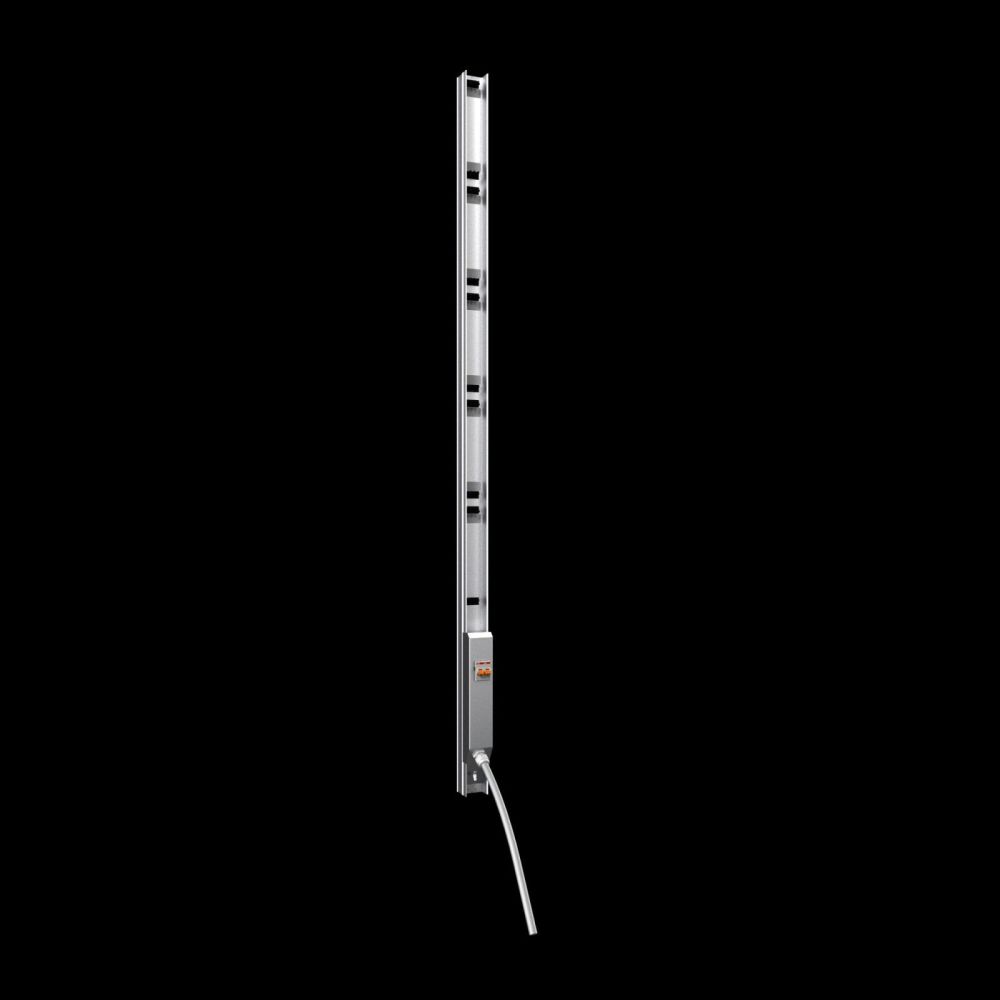

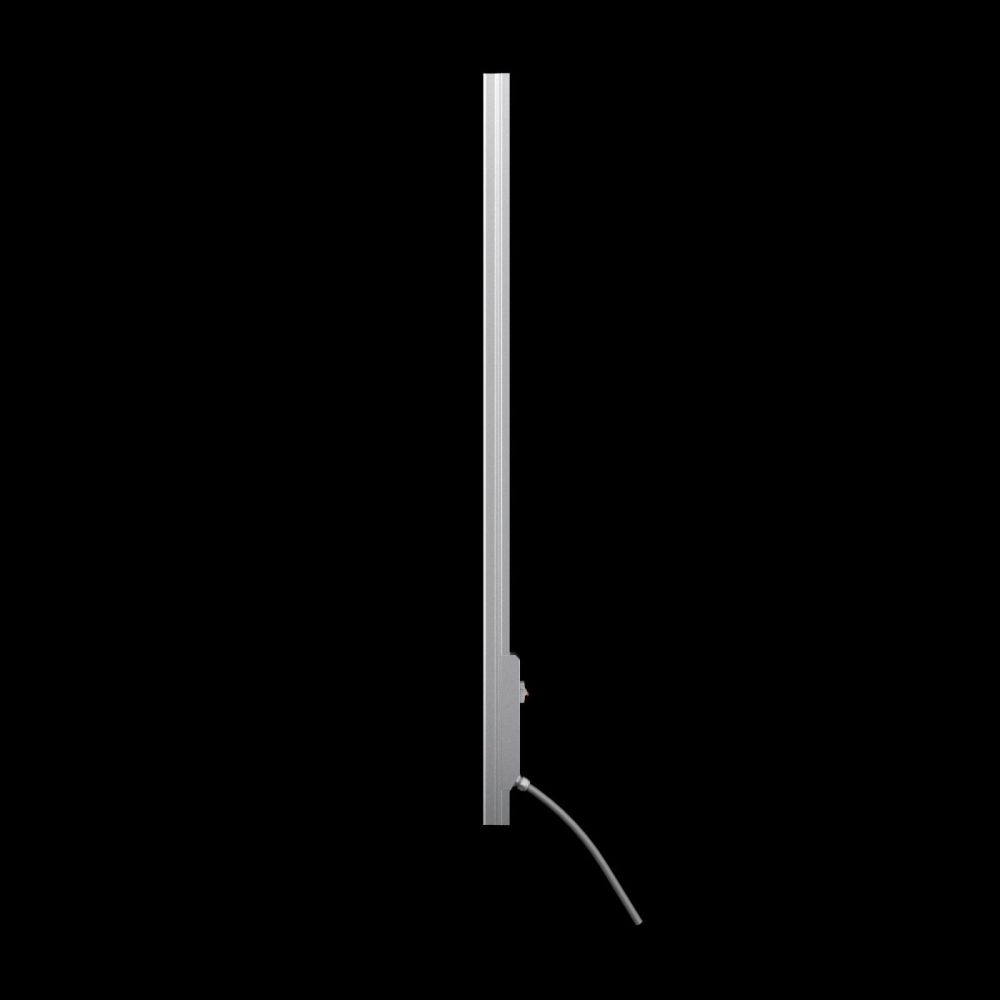

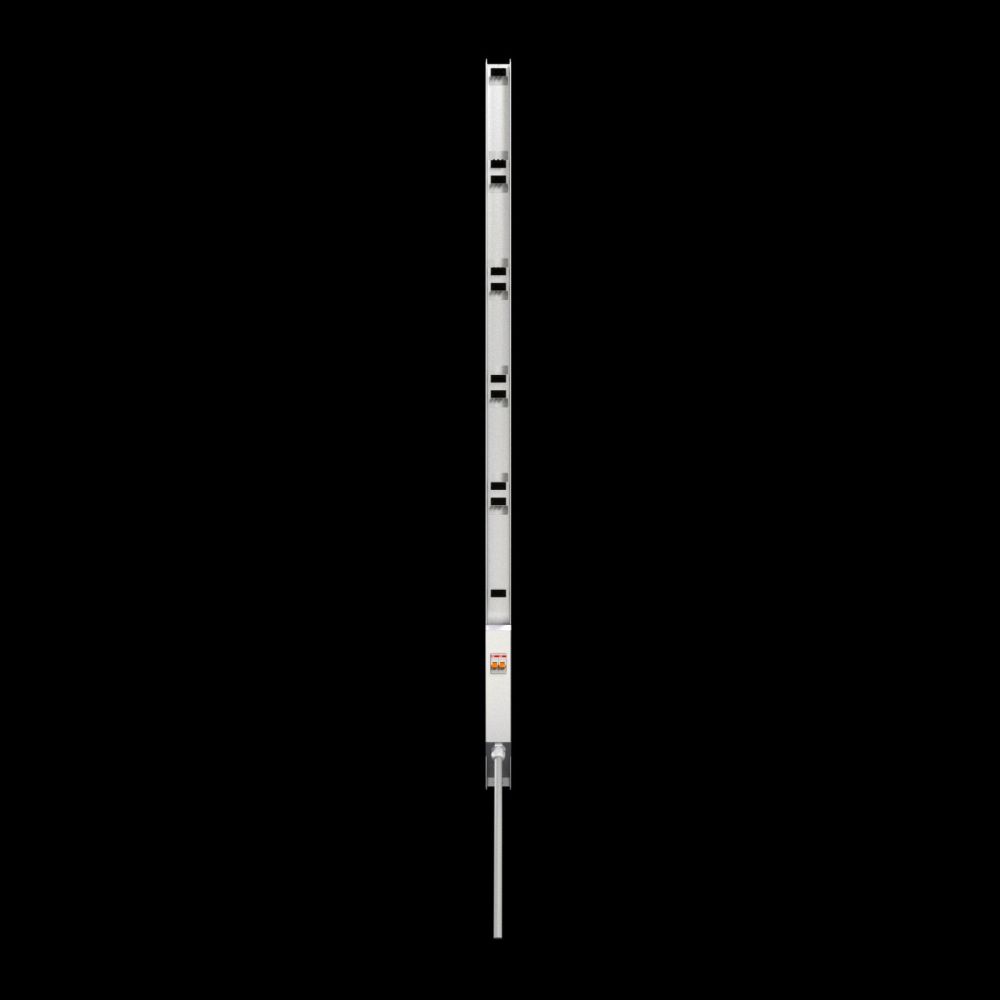

The Rittal DK 7859090 is a modular PDU (Power Distribution Unit) for vertical installation in the Zero-U-Space of 800 mm wide IT racks. It is designed for space-saving power distribution between the side panel and the 48,3 cm ( 19 inch ) mounting plane and is specifically designed for enclosures of type VX IT with a minimum height of 2000 mm. The unit consists of an aluminium profile, naturally anodized, and offers a length of 1695 mm, enabling efficient use of the available vertical space. Power distribution is carried out via a single input with a phase count of 1~, with a maximum rated current of 32 A. The PDU features five module sockets intended for mounting additional power distribution modules or sockets.

Applications

The DK 7859090 is designed for use in IT infrastructures, particularly in server and network enclosures, where compact and flexible power supply is required. Integration in the Zero-U-Space allows power distribution without loss of mounting height, which is especially advantageous in racks with limited space. Compatibility with VX IT enclosures from a height of 2000 mm makes it a suitable solution for standard IT enclosures in data centres and server rooms.

Functions and Equipment in Detail

Power distribution is carried out via a fixed electrical connection type with a CEE plug, where the supply cable has a length of 3 m. This allows flexible positioning of the input within the enclosure. The maximum number of module sockets is five, making the PDU adaptable to various configurations. The protection rating IP 20 according to IEC 60 529 protects against entry of solid foreign objects with a diameter of at least 12.5 mm and provides protection against finger contact, but not against water or dust. The operating temperature ranges from 5 °C to 45 °C, and the air humidity must not be condensing and lies between 10 % and 90 %.

Technology Explained Simply

The PDU uses an aluminium profile, naturally anodized, to prevent corrosion and ensure long service life. Vertical mounting in the Zero-U-Space enables efficient use of cabinet space without affecting the mounting plane for devices. Power supply is via a fixed cable with a CEE plug, ensuring a secure and reliable connection. The five module sockets allow integration of additional components, such as sockets or surge protection modules, to adapt power distribution to specific requirements.

Compatibility and Accessories

The DK 7859090 is specifically developed for enclosures of type VX IT with a minimum height of 2000 mm. Suitable accessories include surge protection modules for PSM interface connectors, cable locks for PSM modules C13 (20 pieces), and a mounting kit for VX IT. These components can be used to extend functionality and ensure secure installation of the PDU in the enclosure.

Mounting and Installation

Mounting is carried out vertically in the Zero-U-Space between the side panel and the 48,3 cm ( 19 inch ) mounting plane. Fixing is done via the designated mounting points in the enclosure, with the mounting kit for VX IT serving as a supporting component. The supply cable with a length of 3 m allows flexible positioning of the input, with the connection made via a CEE plug. Installation does not require special tools, but adherence to mounting instructions is important for safety and functionality.

Advantages in Operation

The DK 7859090 offers a space-saving solution for power distribution in IT racks, preserving valuable mounting space. The modular design allows flexible adaptation to different requirements, and the use of aluminium profiles ensures high mechanical stability and corrosion resistance. The IP 20 protection rating provides sufficient protection against mechanical damage and contact, provided operating conditions remain within the specified temperature and humidity limits. The combination of length, module sockets, and fixed connection type makes the PDU a reliable solution for power supply in IT infrastructures.

General
MaterialAluminium profile, natural anodized
Length1.695 mm
Connection cable length3 m
Electrical connection typeFixed/CEE
Number1
Phases per feed1~
Rated current (max.)32 A
Module slots (max.)5
Degree of protection IP according to IEC 60 529IP 20
Suitable forHousing type: VX IT, height: ≥ 2.000 mm
Operating temperature range5 °C...45 °C
Humidity (non-condensing)10...90 %


Product data sheet
Datasheet for Rittal 7859090, EAN: 4028177956643

Questions & answers

What is the delivery time of Rittal 7859090 PSM Zero-U-Space, length: 1695 mm, feeders: 1?

The article Rittal 7859090 PSM Zero-U-Space, length: 1695 mm, feeders: 1 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7859090 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 7859090 PSM Zero-U-Space, length: 1695 mm, feeders: 1 always at the best possible price. We can give you a discount of 2% on Rittal 7859090 PSM Zero-U-Space, length: 1695 mm, feeders: 1 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Rittal 7859090 PSM Zero-U-Space, length: 1695 mm, feeders: 1

Rittal 7856170 Surge protection PSM transfer plug Rittal LogoRittal 7856170 Surge protection PSM transfer plug Is connected upstream of the busbar.
Note: One adaptor is required for each infeed.
Packs of: 1 pc(s).
EAN: 4028177402621
Customs tariff number: 85369001
eCl@ss 5.1: 27143401
eCl@ss 7.0: 27142604
ETIM ...

Lieske Part No.: 490579
Mfg Part No: 7856170
Type: DK 7856170
156,63 EUR
Rittal 7856170 plus VAT
≈ £131.10  |  ≈ $172.14
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 7856013 Cable lock for PSM-modules C13 20 pcs Rittal LogoRittal 7856013 Cable lock for PSM-modules C13 20 pcs All terminal connection cables are therefore protected against unintentional disconnection of the power supply. Two bars are needed for two cables.
Note: Optimum locking function is only guaranteed ...

Lieske Part No.: 514931
Mfg Part No: 7856013
Type: DK 7856013
28,52 EUR
Rittal 7856013 plus VAT
≈ £23.87  |  ≈ $31.34
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 7859065 PSM mounting kit for VX IT Rittal LogoRittal 7859065 PSM mounting kit for VX IT The Rittal mounting kit DK 7859065 is a specific accessory for mounting modular PDU (PSM) power rails in the Zero-U-Space of the VX IT network enclosure. It enables secure and quick fixation of the ...

Lieske Part No.: 1910655
Mfg Part No: 7859065
Type: DK 7859065
28,87 EUR
Rittal 7859065 plus VAT
≈ £24.16  |  ≈ $31.73
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
