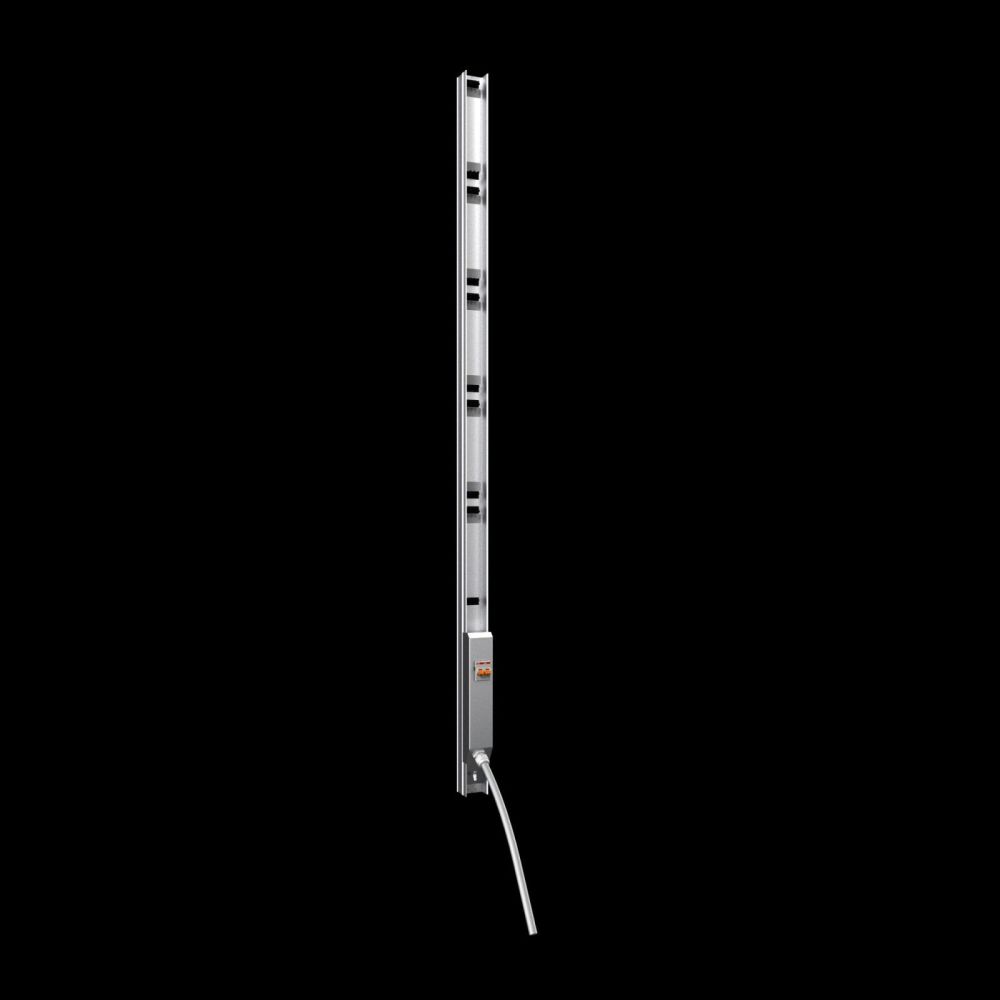

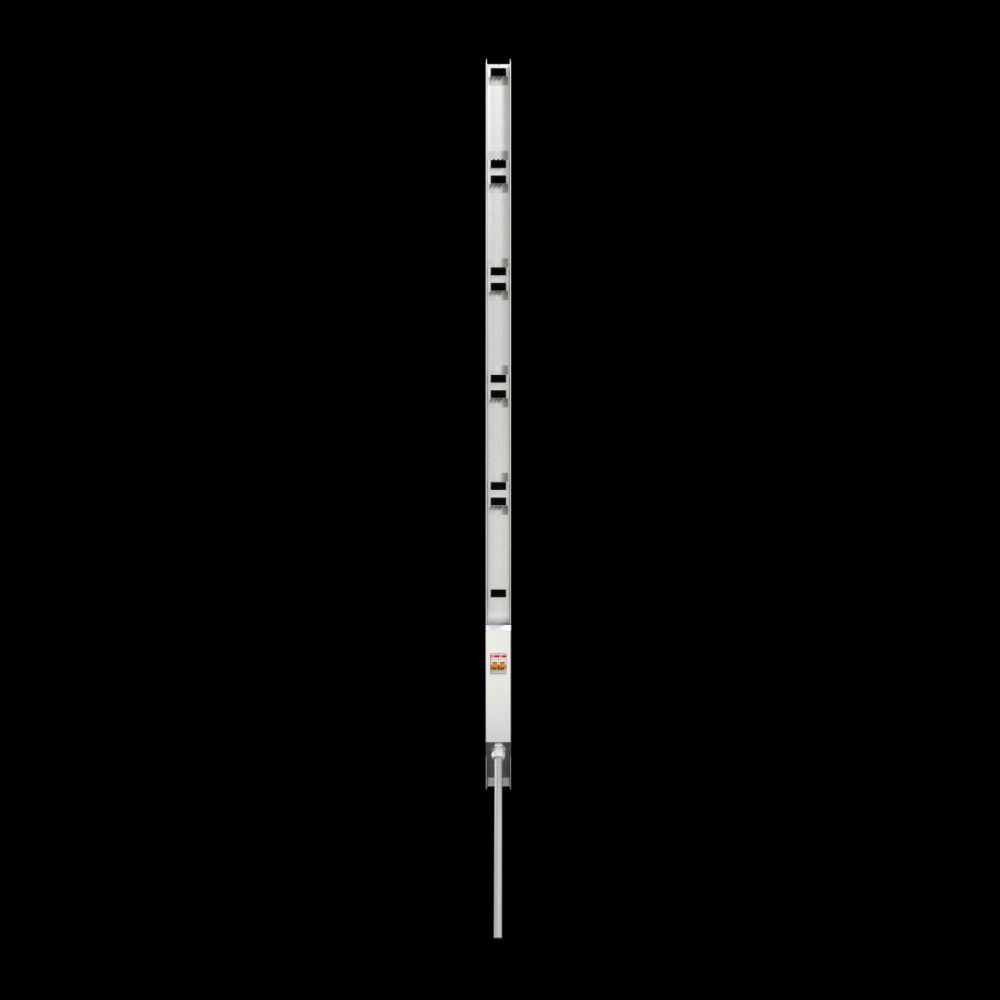

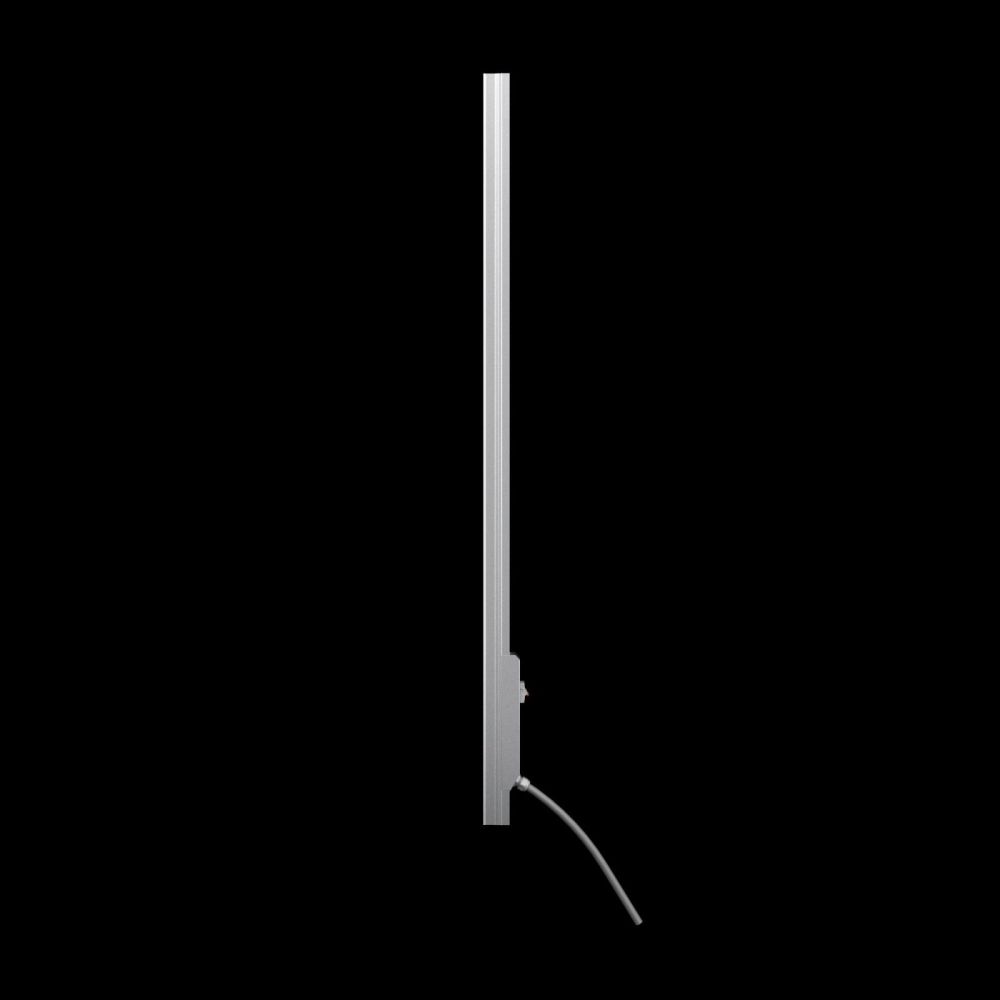

Rittal 7859081 PSM Zero-U-Space, length: 1695 mm, feeders: 1
|
234,37 EUR |
|
|
( 278,90 EUR incl. VAT ) ≈ £196.17 | ≈ $257.57 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1101022 |
| Mfg Part No: | 7859081 |
| UPC/EAN: | 4028177956636 |
| Weight: | 4.3 kg |
| Type: | DK 7859081 |
Product information for Rittal 7859081:
Applications
The DK 7859081 is intended for use in IT racks with a width of 800 mm and a minimum height of 2000 mm. It is mounted in the Zero-U-Space, i.e., between the side panel of the enclosure and the 48,3 cm ( 19 inch ) mounting plane, to optimally utilize available space. This is particularly advantageous in data centres or server rooms where space utilization must be efficient. The modular design allows flexible adaptation to different requirements for power distribution.
Functions and Equipment in Detail

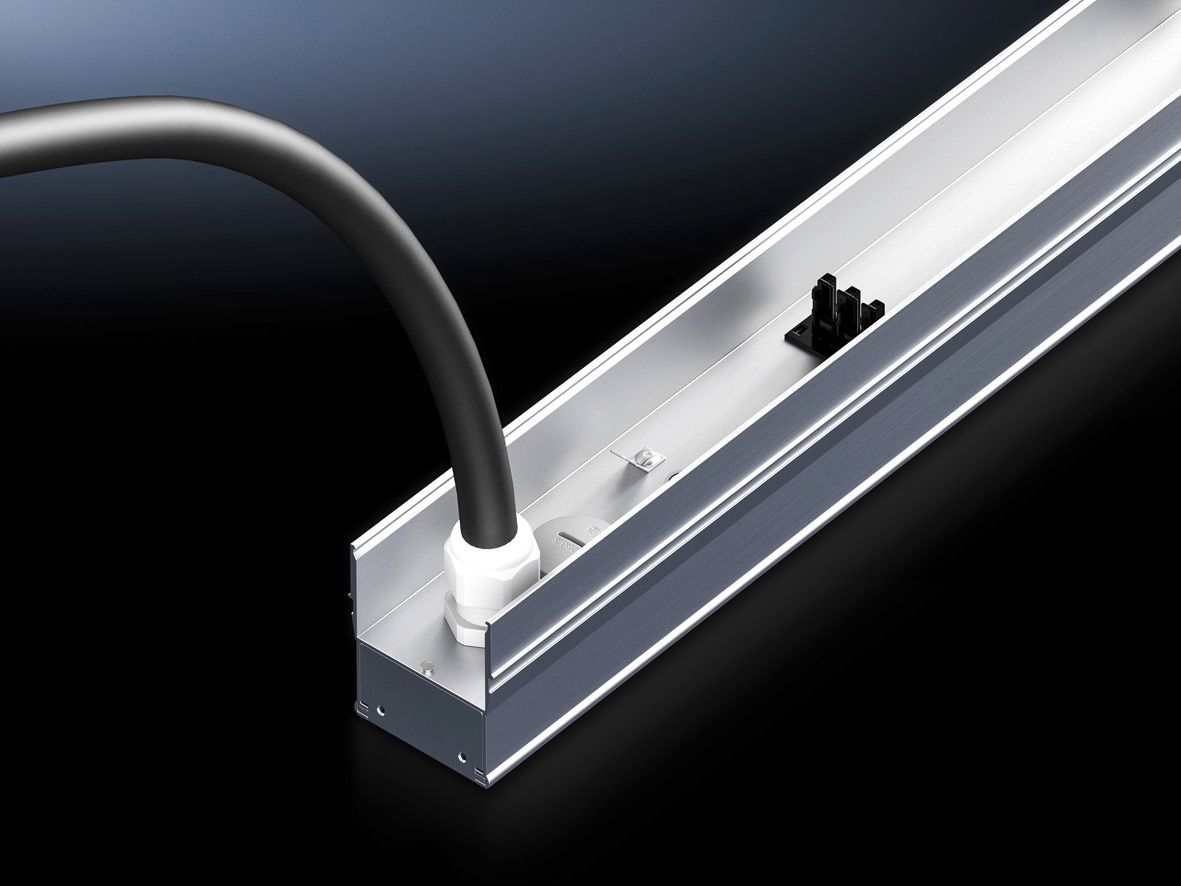

The PDU features six module sockets suitable for mounting PSM modules. These modules can be equipped, as required, with various sockets, monitoring components, or fuse elements. Power supply is via a fixed CEE connection cable with a length of 3 m, ensuring a secure and reliable connection to the power input point. The three-phase power supply (3~) with a maximum rated current of 16 A enables simultaneous supply to multiple devices. The aluminium construction is naturally anodized, ensuring high corrosion resistance and long service life.
Technology Explained Simply
The PDU uses the principle of modular power distribution, where power is distributed via a central power busbar to which individual modules are connected. The busbar is made of aluminium profile and provides high mechanical stability. The protection class IP 20 protects against solid foreign objects, but not against water. The operating temperature of 5 °C to 45 °C and relative humidity of 10 % to 90 % (non-condensing) are suitable for typical IT and industrial environments. The length of 1695 mm allows use in enclosures with a minimum height of 2000 mm.
Compatibility and Accessories
The PDU is specifically designed for enclosures of type VX IT with a minimum height of 2000 mm. Compatible accessories include the surge protection PSM transfer plug, cable locking for PSM modules C13 (20 pieces), and the PSM mounting kit for VX IT. These accessories enable extended functionality and enhanced safety for power distribution.
Installation and Mounting
Mounting takes place in the Zero-U-Space between the side panel and the 48,3 cm ( 19 inch ) mounting plane. The PDU is installed vertically and can be secured using the provided mounting elements (if available) or suitable mounting tools. The connection cable with the CEE plug is connected to the power input point. The module sockets are designed for mounting PSM modules, which can be selected according to requirements.
Operational Advantages
The modular design enables flexible and scalable power distribution. Space saving in the Zero-U-Space optimizes the use of available space in the enclosure. The aluminium construction provides high mechanical stability and corrosion resistance. The protection class IP 20 ensures sufficient protection against solid foreign objects. The operating temperature and humidity range are suitable for typical IT and industrial environments. The combination of modular design and compact construction makes the PDU an efficient solution for power distribution in IT racks.
| General | |
| Material | Aluminium profile, natural anodized |
| Length | 1.695 mm |
| Connection cable length | 3 m |
| Electrical connection type | Fixed/CEE |
| Number | 1 |
| Phases per feed | 3~ |
| Rated current (max.) | 16 A |
| Module slots (max.) | 6 |
| Degree of protection IP according to IEC 60 529 | IP 20 |
| Suitable for | Housing type: VX IT, height: ≥ 2.000 mm |
| Operating temperature range | 5 °C...45 °C |
| Humidity (non-condensing) | 10...90 % |
