Rittal 7859080 PSM Zero-U busbar 2x3x16A 6 module sockets

Your rating:
Average rating
product review for Rittal 7859080 PSM Zero-U busbar 2x3x16A 6 module sockets
( 0 / 5 ) 0 ratings

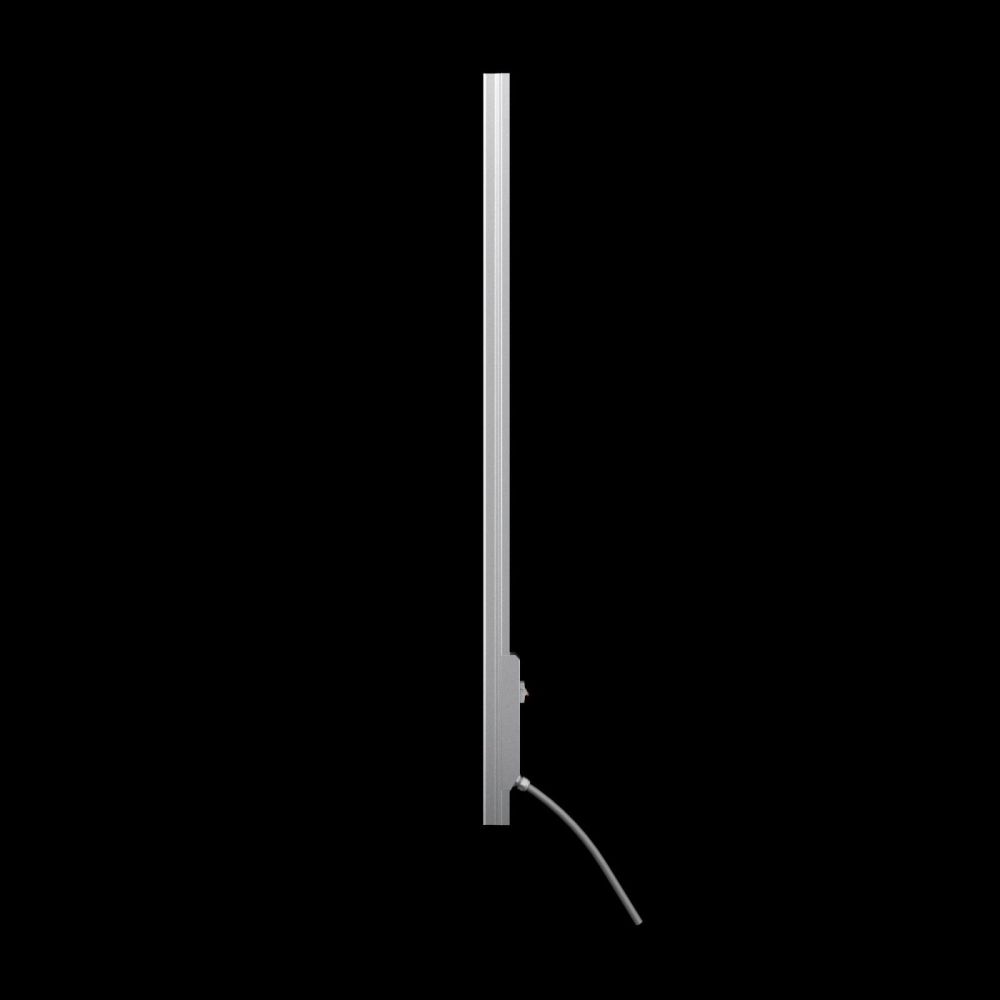

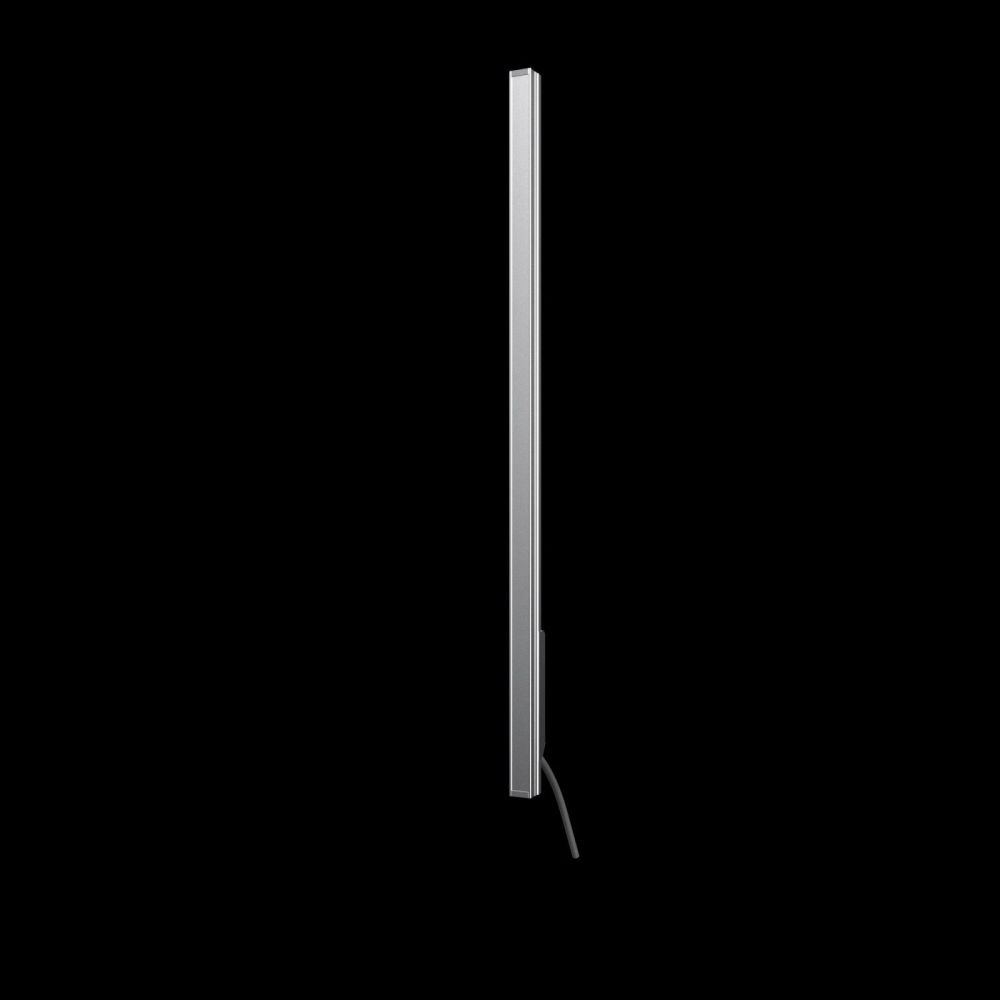

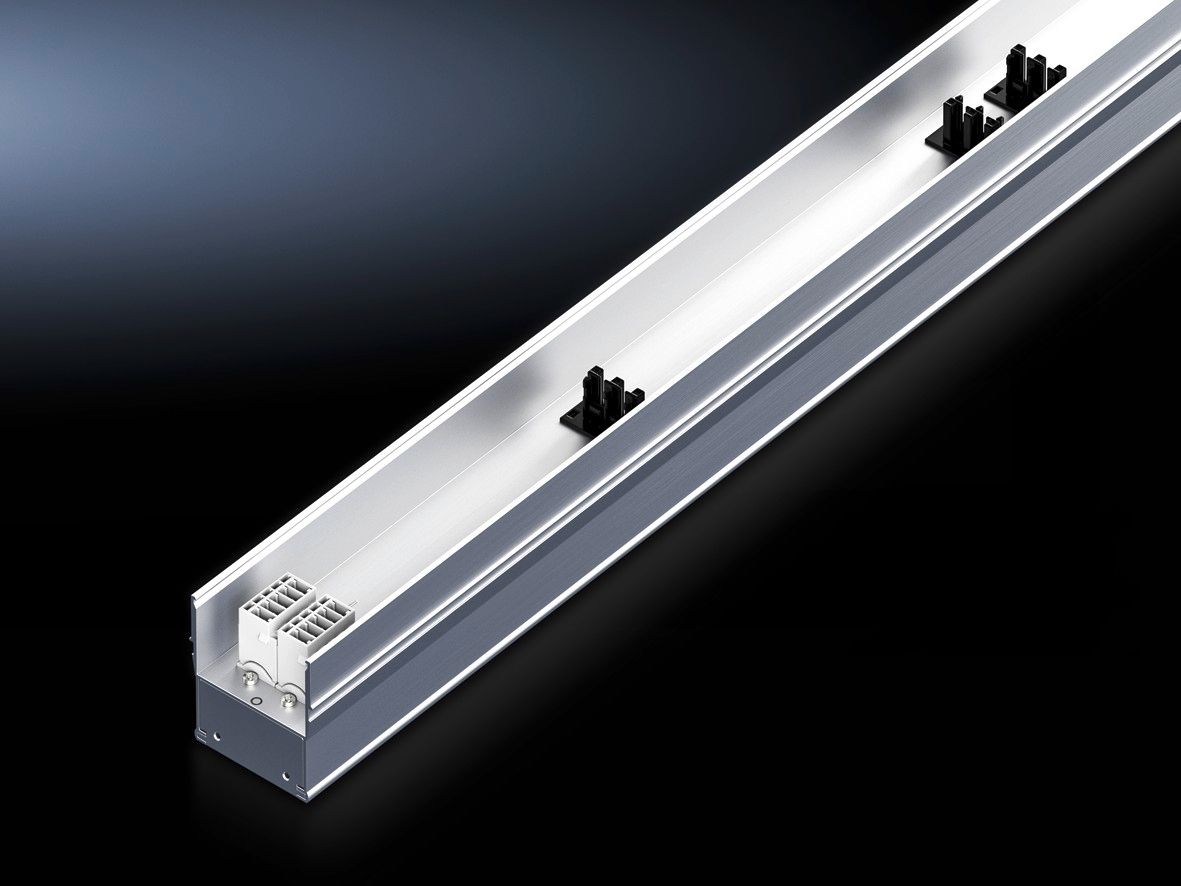

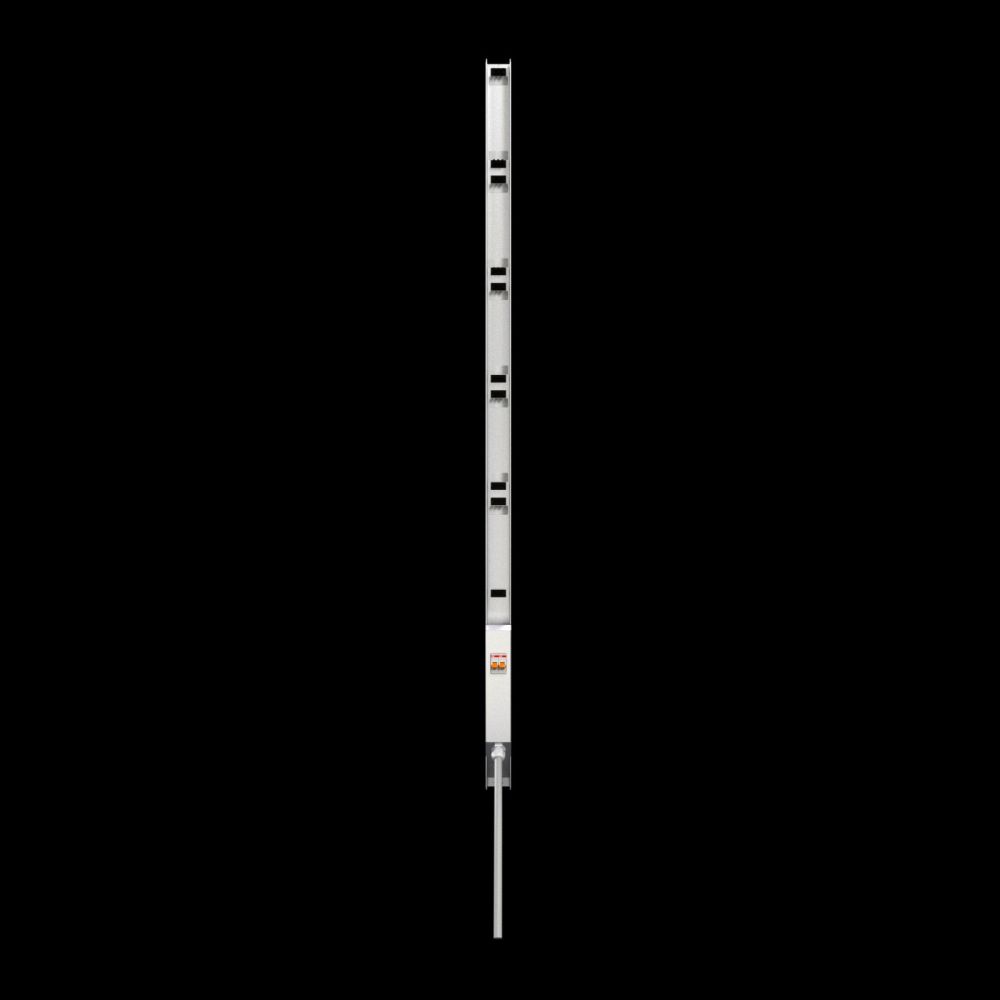

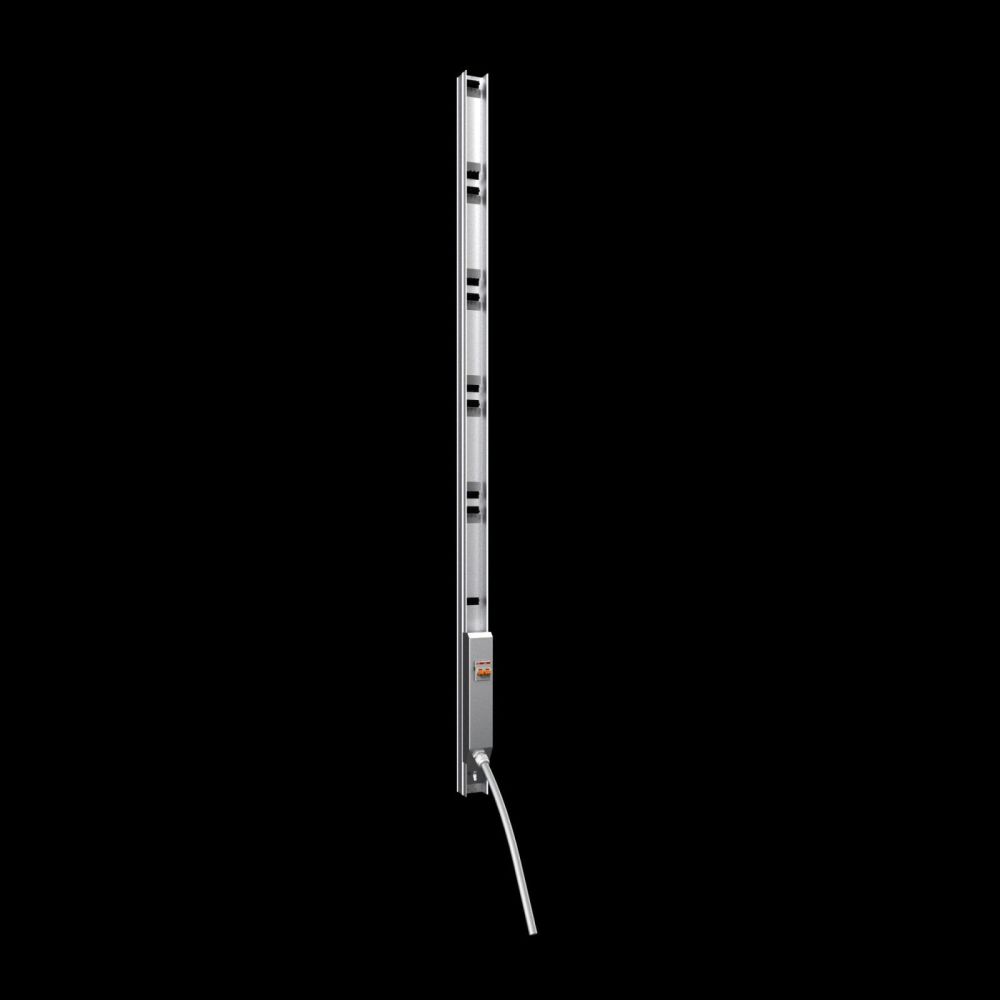

Rittal 7859080
This image may differ from the desired article.
Rittal 7859080Rittal 7859080Rittal 7859080Rittal 7859080Rittal 7859080
208,23 EUR 212,64 EUR
( 247,79 EUR incl. VAT )
≈ £174.29  |  ≈ $228.84
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 7859080 PSM Zero-U busbar 2x3x16A 6 module sockets
Datasheet:file_download Download
Lieske Part No.:593684
Mfg Part No: 7859080
UPC/EAN: 4028177956650
Weight:2.8 kg
Type:DK 7859080

Product information for Rittal 7859080:

The Rittal DK 7859080 is a modular PDU (Power Distribution Unit) for vertical installation in the Zero-U-Space of 800 mm wide IT racks. It serves for space-saving power distribution between the side panel and the 48,3 cm ( 19 inch ) mounting plane and is specifically designed for enclosures of type VX IT with a minimum height of 2000 mm. The device consists of an aluminium profile, natural anodized, and has a length of 1695 mm. Power distribution is achieved via two feed-in points, each with 3 phases (3~) and a maximum rated current of 16 A. The connection type is a Wago X-COM socket, ensuring flexible and secure electrical connections. The PDU offers a total of six module sockets, which can be used for mounting additional power distribution modules.

Applications

The DK 7859080 is designed for use in industrial and IT infrastructures where compact and efficient power distribution in server or network racks is required. It is particularly suitable for racks with limited space, as it is installed in the Zero-U-Space and thus does not occupy the usual U height. Use in VX IT enclosures with a height of at least 2000 mm enables optimal integration into larger enclosures and data centres. The power rail is designed for operation in environments with temperatures from 5 °C to 45 °C and humidity from 10 % to 90 % (non-condensing).

Functions and Equipment in Detail

The PDU provides modular power distribution, which can be extended via the six module sockets. The two feed-in points, each with 3 phases and 16 A rated current, enable reliable power supply for multiple consumers. The Wago X-COM socket ensures a secure and quick electrical connection. Installation takes place in the Zero-U-Space, minimizing space requirements in the rack. Connection cables can be varied according to requirements, and the PDU is also suitable for single-phase connections.

Technology Explained Simply

The power rail is made of a natural anodized aluminium profile, which is robust and corrosion-resistant. The protection class IP 20 according to IEC 60 529 protects against finger contact and solid foreign objects, but is not waterproof. The maximum length of 1695 mm allows adaptation to enclosures with a height of at least 2000 mm. The rated current of 16 A per feed-in point is sufficient for typical IT and network loads. The module sockets allow flexible expansion of power distribution, for example by adding socket modules or monitoring units.

Compatibility and Accessories

The DK 7859080 is specifically designed for enclosures of type VX IT with a minimum height of 2000 mm. Suitable accessories include surge protection modules for PSM connectors, cable locks for PSM modules (C13, 20 pieces), and mounting kits for VX IT enclosures. These components can be used to extend functionality and ensure secure installation of the PDU.

Mounting and Installation

Installation takes place in the Zero-U-Space between the side panel and the 48,3 cm ( 19 inch ) mounting plane of the rack. The PDU is installed vertically and does not require additional U height. Connection cables can be selected according to requirements, and installation is also possible for single-phase connections. The Wago X-COM socket enables quick and secure electrical connections.

Operational Advantages

The modular design of the DK 7859080 allows flexible adaptation to different requirements. Installation in the Zero-U-Space optimizes rack space and reduces required mounting height. The use of Wago X-COM sockets ensures reliable and maintenance-friendly connections. The power rail is designed for use in IT and industrial environments where stable and secure power supply is required. Compatibility with VX IT enclosures and the availability of suitable accessories facilitate integration into existing infrastructures.

General
MaterialAluminium profile, natural anodized
Length1.695 mm
Electrical connection typeWago X-COM socket
Number2
Phases per feed3~
Rated current (max.)16 A
Module slots (max.)6
Degree of protection IP according to IEC 60 529IP 20
Suitable forHousing type: VX IT, height: ≥ 2.000 mm
Operating temperature range5 °C...45 °C
Humidity (non-condensing)10...90 %


Product data sheet
Datasheet for Rittal 7859080, EAN: 4028177956650

Questions & answers

What is the delivery time of Rittal 7859080 PSM Zero-U busbar 2x3x16A 6 module sockets?

The article Rittal 7859080 PSM Zero-U busbar 2x3x16A 6 module sockets is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7859080 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 7859080 PSM Zero-U busbar 2x3x16A 6 module sockets always at the best possible price. We can give you a discount of 2% on Rittal 7859080 PSM Zero-U busbar 2x3x16A 6 module sockets if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
