Rittal 7547000 Earthing strap TS vertical
|
109,91 EUR |
|
|
( 130,79 EUR incl. VAT ) ≈ £92.54 | ≈ $123.43 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 246623 |
| Mfg Part No: | 7547000 |
| UPC/EAN: | 4028177131910 |
| Weight: | 2.62 kg |
| Type: | DK 7547000 |
Product information for Rittal 7547000:
Easily fitted to the 25 mm DIN pitch pattern of distributors or to the 482.6 mm (19?) mounting angles. The supplied earth conductors facilitate star earthing of the cable clamp straps in the patch panels. The earth terminals are fully adjustable. Current carrying capacity of rail approx. 200 A.

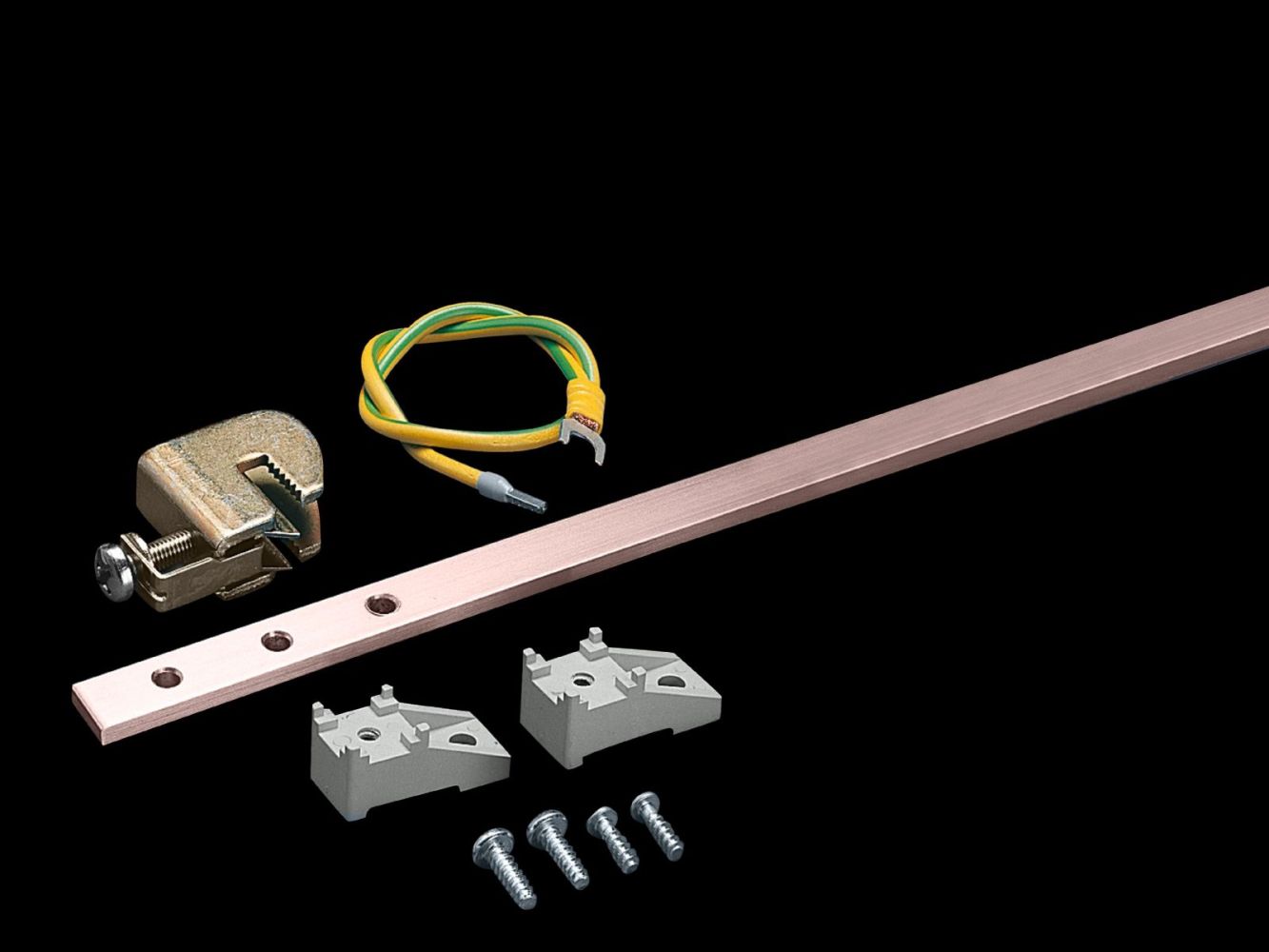

Supply includes: Earth rail made from E-Cu 57 to DIN EN 12 163, DIN EN 13 601, 15 x 5 mm
16 conductor connection clamps 2.5 – 16 mm²
15 earthing leads 6 mm², L = 500 mm
Assembly parts
Packs of: 1 pc(s).
EAN: 4028177131910
Customs tariff number: 74199990
eCl@ss 5.1: 27189215
eCl@ss 7.0: 27149205
ETIM 6.0: EC000329
To fit: Enclosure type: TS
Height: = 2000 mm
Dimensions: Length: 1745 mm
Weight/pack: 2.8 kg
Supply includes: Earth rail made from E-Cu 57 to DIN EN 12 163, DIN EN 13 601, 15 x 5 mm
16 conductor connection clamps 2.5 – 16 mm²
15 earthing leads 6 mm², L = 500 mm
Assembly parts
Packs of: 1 pc(s).
EAN: 4028177131910
Customs tariff number: 74199990
eCl@ss 5.1: 27189215
eCl@ss 7.0: 27149205
ETIM 6.0: EC000329
To fit: Enclosure type: TS
Height: = 2000 mm
Dimensions: Length: 1745 mm
Weight/pack: 2.8 kg
Questions & answers
What is the delivery time of Rittal 7547000 Earthing strap TS vertical?
The article Rittal 7547000 Earthing strap TS vertical is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7547000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 7547000 Earthing strap TS vertical always at the best possible price. We can give you a discount of 2% on Rittal 7547000 Earthing strap TS vertical if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
