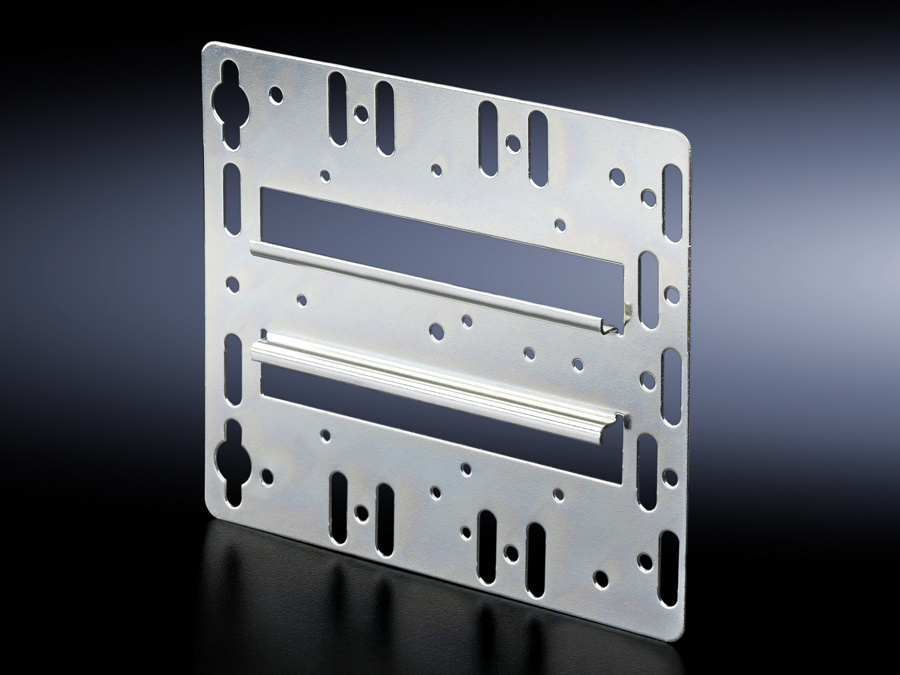

Rittal 7526964 Mounting plate with integrated busbar

Your rating:
Average rating
product review for Rittal 7526964 Mounting plate with integrated busbar
( 4.6 / 5 ) 5 ratings
Rittal 7526964
This image may differ from the desired article.
Rittal 7526964Rittal 7526964Rittal 7526964Rittal 7526964Rittal 7526964Rittal 7526964Rittal 7526964
-8% 13,17 EUR 14,37 EUR
( 15,67 EUR incl. VAT )
≈ £11.02  |  ≈ $14.47
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 7526964 Mounting plate with integrated busbar
Datasheet:file_download Download
Lieske Part No.:116178
Mfg Part No: 7526964
UPC/EAN: 4028177246799
Weight:0.206 kg
Type:TS 7526964

Product information for Rittal 7526964:

The Rittal TS 7526964 is a mounting plate made of sheet steel with a zinc-coated surface, specifically developed for mounting control and regulation components in enclosure construction. It features an integrated DIN rail, enabling components such as speed controllers, enclosure internal temperature controllers, or hygrostats to be directly clipped on without additional mounting aids. The plate is designed for a variety of enclosure types, including AX, VX, VX SE, AX IT, VX IT, and TE, and is directly screwed into the enclosure wall using mounting accessories.

Applications

The mounting plate serves for structured and secure installation of control and monitoring elements inside enclosures. It is particularly used in industrial plants where quick and reliable mounting of control devices is required. Its use in enclosure types such as AX, VX, and TE makes it universally applicable in various enclosure configurations found in automation technology, manufacturing technology, and power supply applications.

Functions and Equipment in Detail

The integrated DIN rail allows direct clipping of components designed for DIN rail mounting according to standard. This reduces mounting time and increases the mechanical stability of installed components. The zinc-coated surface provides protection against corrosion and ensures longer service life, especially in environments with increased humidity or low aggressiveness. The sheet steel material ensures sufficient strength to securely support mounted components.

Technology Explained Simply

The mounting plate is screwed into the enclosure wall using the included mounting accessories. The integrated DIN rail is designed to meet standard dimensions for DIN rails, allowing components to be mounted without additional adapters. The zinc coating protects the material from oxidative degradation, which is particularly beneficial in industrial environments. The construction is designed to enable stable mounting without requiring additional brackets or drilling.

Compatibility and Accessories

The mounting plate is specifically designed for enclosure types AX, VX, VX SE, AX IT, VX IT, and TE. These enclosures are widely used in industrial electrical engineering and applied in various fields. Compatibility with these enclosure types ensures universal applicability. Mounting is done directly onto the enclosure wall, with the fastening screws included in the delivery scope.

Mounting and Installation

Installation is performed by screwing the mounting plate onto the inner wall of the enclosure. Fastening is done using the included accessories. After mounting the plate, desired components such as speed controllers or temperature controllers can be directly clipped onto the integrated DIN rail. No additional tools or mounting aids are required to secure the components.

Advantages in Operation

The mounting plate reduces mounting time for control and regulation components, as no additional brackets or drilling are required. The integrated DIN rail enables standardized mounting compatible with many industrial devices. The zinc-coated surface provides increased corrosion resistance, extending the plate’s service life in industrial environments. Use with the specified enclosure types ensures universal applicability in various enclosure configurations.

Delivery Scope

The delivery scope includes the mounting plate and the required mounting accessories. Mounting is exclusively done using the included accessories.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryMounting board, including mounting accessories
Suitable forCabinet type: AX, VX, VX SE, AX IT, VX IT, TE
PCF/VE (Cradle-to-Gate)0.8 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 7526964, EAN: 4028177246799
