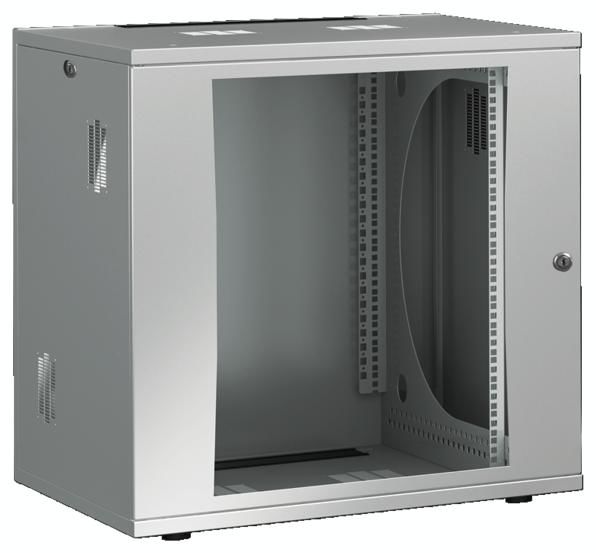

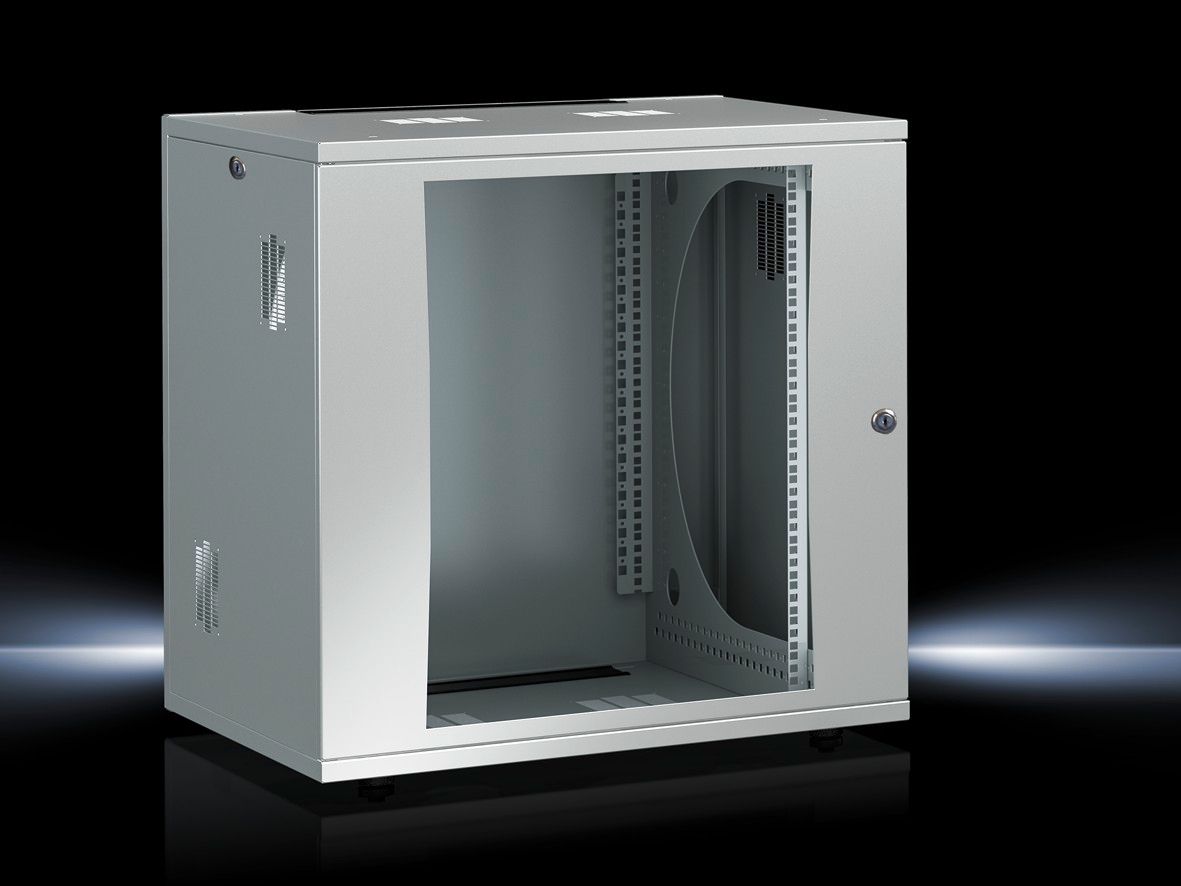

Rittal 7507200 DK FlatBox, WHD: 700x758x700 mm, 15 U, with 482.6 mm (48,3 cm ( 19 inch )) mounting frame
|
-22% 436,54 EUR 559,10 EUR |
|
|
( 519,48 EUR incl. VAT ) ≈ £371.06 | ≈ $490.23 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 129472 |
| Mfg Part No: | 7507200 |
| UPC/EAN: | 4028177551466 |
| Weight: | 41.8 kg |
| Type: | DK 7507200 |
Further Cat6 Patch Cable from RittalFurther products in category Cat6 Patch Cable
All products of Rittal
Product information for Rittal 7507200:
For flexible use as a wall-mounted or floor-standing enclosure.
Benefits: Tool-free quick assembly
System assembly on the open 482.6 mm (48,3 cm ( 19 inch )) frame
Material: Sheet steel
Viewing window: Single-pane safety glass, 3 mm
Surface finish: Powder-coated
Colour: RAL 7035
Supply includes: Flat-packed enclosure
1 wall section
2 basic supports
2 roof/base plates, with cut-outs for cable entry via brush strips

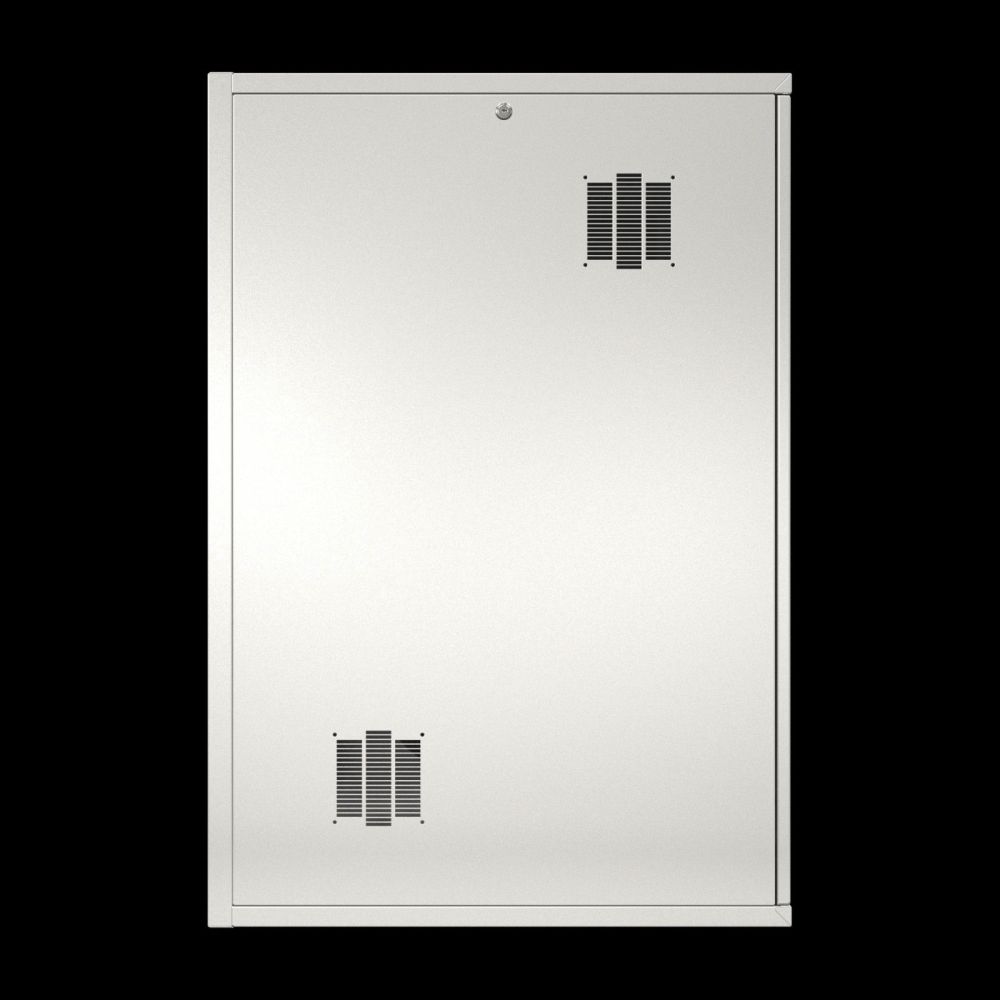

2 side panels, lockable

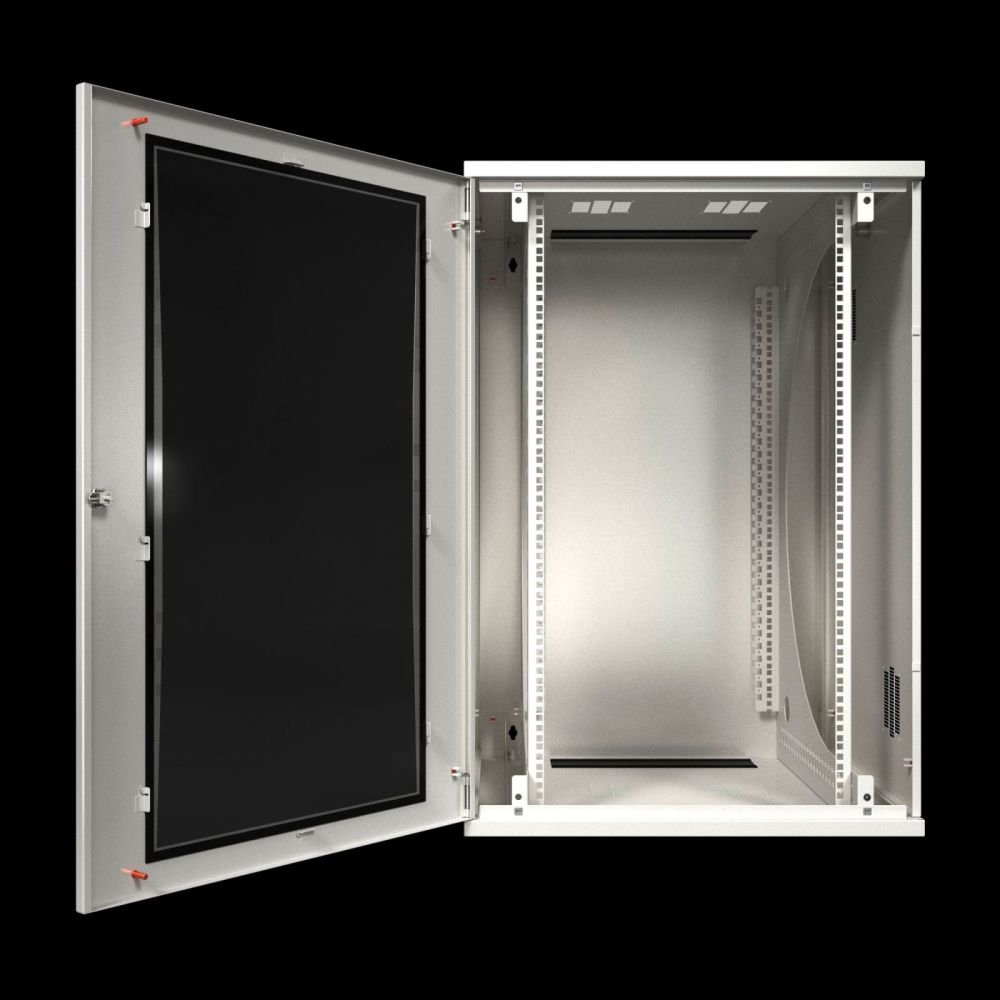

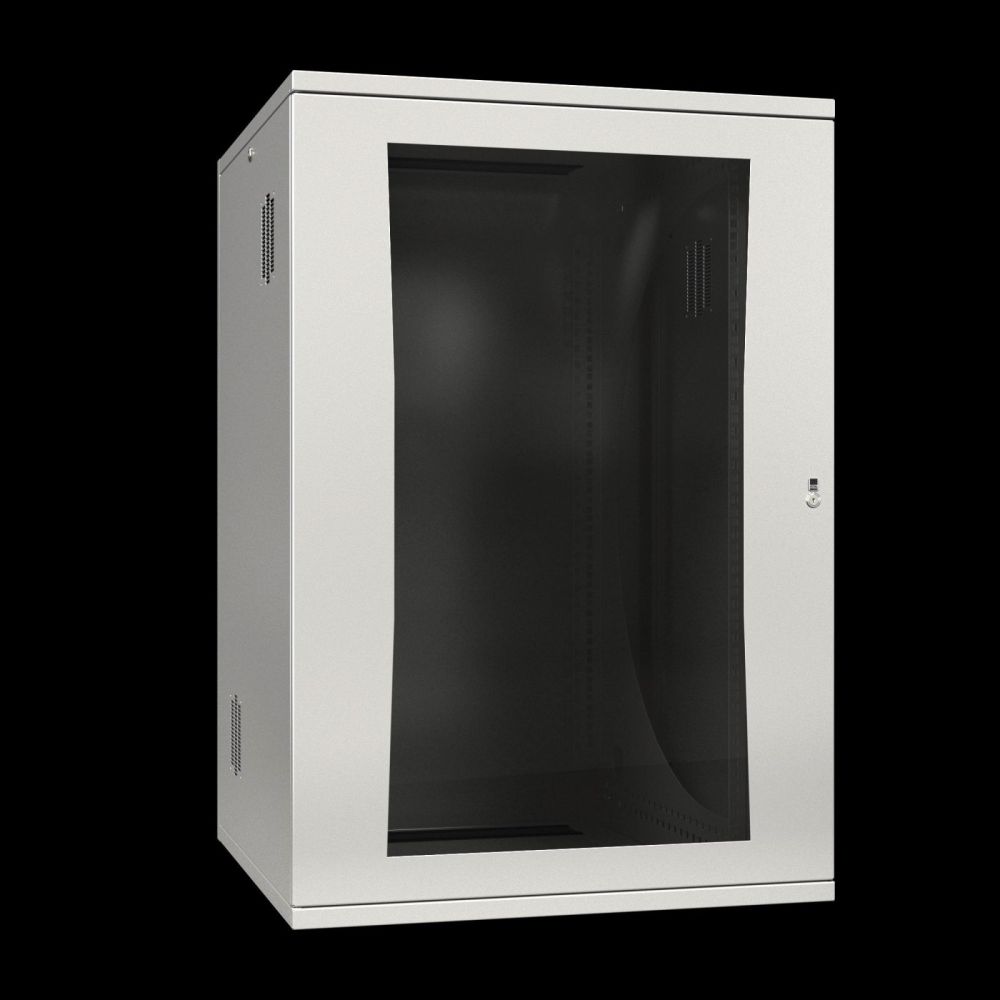

1 glazed door, lockable, security lock 3524 E, door hinge point selectable
Connection components for tool-free, fast assembly
Earthing kit for system-compatible earthing of all enclosure parts
1 pc(s). 482.6 mm (48,3 cm ( 19 inch )) mounting frame
4 pc(s). Levelling feet
Note: Max. installation depth: Depth - 58 mm to rear panel
Max. distance between two 482.6 mm (48,3 cm ( 19 inch )) levels: Depth - 104 mm
Packs of: 1 pc(s).
EAN: 4028177551466
Customs tariff number: 94032080
eCl@ss 5.1: 27180204
eCl@ss 7.0: 27180208
ETIM 6.0: EC002500
Design: with 482.6 mm (48,3 cm ( 19 inch )) mounting frame
Dimensions: Width: 700 mm
Height: 758 mm
Depth: 700 mm
Installation height for components: 15 U
Weight/pack: 40 kg
Benefits: Tool-free quick assembly
System assembly on the open 482.6 mm (48,3 cm ( 19 inch )) frame
Material: Sheet steel
Viewing window: Single-pane safety glass, 3 mm
Surface finish: Powder-coated
Colour: RAL 7035
Supply includes: Flat-packed enclosure
1 wall section
2 basic supports
2 roof/base plates, with cut-outs for cable entry via brush strips
2 side panels, lockable
1 glazed door, lockable, security lock 3524 E, door hinge point selectable
Connection components for tool-free, fast assembly
Earthing kit for system-compatible earthing of all enclosure parts
1 pc(s). 482.6 mm (48,3 cm ( 19 inch )) mounting frame
4 pc(s). Levelling feet
Note: Max. installation depth: Depth - 58 mm to rear panel
Max. distance between two 482.6 mm (48,3 cm ( 19 inch )) levels: Depth - 104 mm
Packs of: 1 pc(s).
EAN: 4028177551466
Customs tariff number: 94032080
eCl@ss 5.1: 27180204
eCl@ss 7.0: 27180208
ETIM 6.0: EC002500
Design: with 482.6 mm (48,3 cm ( 19 inch )) mounting frame
Dimensions: Width: 700 mm
Height: 758 mm
Depth: 700 mm
Installation height for components: 15 U
Weight/pack: 40 kg
Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect.
Though, there will be corresponding surcharges after you send us your order.
