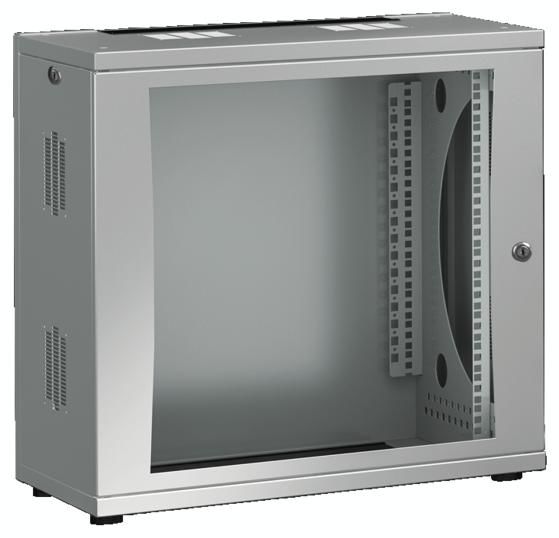

Rittal 7507020 DK FlatBox, WHD: 600x625x400 mm, 12 U, with 482.6 mm (48,3 cm ( 19 inch )) mounting frame
|
324,47 EUR 330,05 EUR |
|
|
( 386,12 EUR incl. VAT ) ≈ £279.04 | ≈ $369.90 plus delivery charges: 213,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Lieske Part No.: | 359207 |
|---|---|
| Mfg Part No: | 7507020 |
| UPC/EAN: | 4028177551411 |
| Weight: | 25.246 kg |
Further Wallmount Racks from RittalFurther products in category Wallmount Racks
All products of Rittal
Product information for Rittal 7507020:
For flexible use as a wall-mounted or floor-standing enclosure.
Benefits: Tool-free quick assembly
System assembly on the open 482.6 mm (48,3 cm ( 19 inch )) frame
Material: Sheet steel
Viewing window: Single-pane safety glass, 3 mm
Surface finish: Powder-coated
Colour: RAL 7035
Supply includes: Flat-packed enclosure
1 wall section
2 basic supports
2 roof/base plates, with cut-outs for cable entry via brush strips
2 side panels, lockable
1 glazed door, lockable, security lock 3524 E, door hinge point selectable
Connection components for tool-free, fast assembly
Earthing kit for system-compatible earthing of all enclosure parts
1 pc(s). 482.6 mm (48,3 cm ( 19 inch )) mounting frame
4 pc(s). Levelling feet
Note: Max. installation depth: Depth - 58 mm to rear panel
Max. distance between two 482.6 mm (48,3 cm ( 19 inch )) levels: Depth - 104 mm
Packs of: 1 pc(s).
EAN: 4028177551411
Customs tariff number: 94032080
eCl@ss 5.1: 27180204
eCl@ss 7.0: 27180208
ETIM 6.0: EC002500
Design: with 482.6 mm (48,3 cm ( 19 inch )) mounting frame
Dimensions: Width: 600 mm
Height: 625 mm
Depth: 400 mm
Installation height for components: 12 U
Weight/pack: 26.05 kg
Type: DK 7507020
Benefits: Tool-free quick assembly
System assembly on the open 482.6 mm (48,3 cm ( 19 inch )) frame
Material: Sheet steel
Viewing window: Single-pane safety glass, 3 mm
Surface finish: Powder-coated
Colour: RAL 7035
Supply includes: Flat-packed enclosure
1 wall section
2 basic supports
2 roof/base plates, with cut-outs for cable entry via brush strips
2 side panels, lockable
1 glazed door, lockable, security lock 3524 E, door hinge point selectable
Connection components for tool-free, fast assembly
Earthing kit for system-compatible earthing of all enclosure parts
1 pc(s). 482.6 mm (48,3 cm ( 19 inch )) mounting frame
4 pc(s). Levelling feet
Note: Max. installation depth: Depth - 58 mm to rear panel
Max. distance between two 482.6 mm (48,3 cm ( 19 inch )) levels: Depth - 104 mm
Packs of: 1 pc(s).
EAN: 4028177551411
Customs tariff number: 94032080
eCl@ss 5.1: 27180204
eCl@ss 7.0: 27180208
ETIM 6.0: EC002500
Design: with 482.6 mm (48,3 cm ( 19 inch )) mounting frame
Dimensions: Width: 600 mm
Height: 625 mm
Depth: 400 mm
Installation height for components: 12 U
Weight/pack: 26.05 kg
Type: DK 7507020
