Rittal 7480035 Energy-Box 3 U RAL 7035
|
226,50 EUR |
|
|
( 269,53 EUR incl. VAT ) ≈ £189.58 | ≈ $253.45 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 125314 |
| Mfg Part No: | 7480035 |
| UPC/EAN: | 4028177166004 |
| Weight: | 2.54 kg |
| Type: | DK 7480035 |
Further Mounting Material from RittalFurther products in category Mounting Material
All products of Rittal

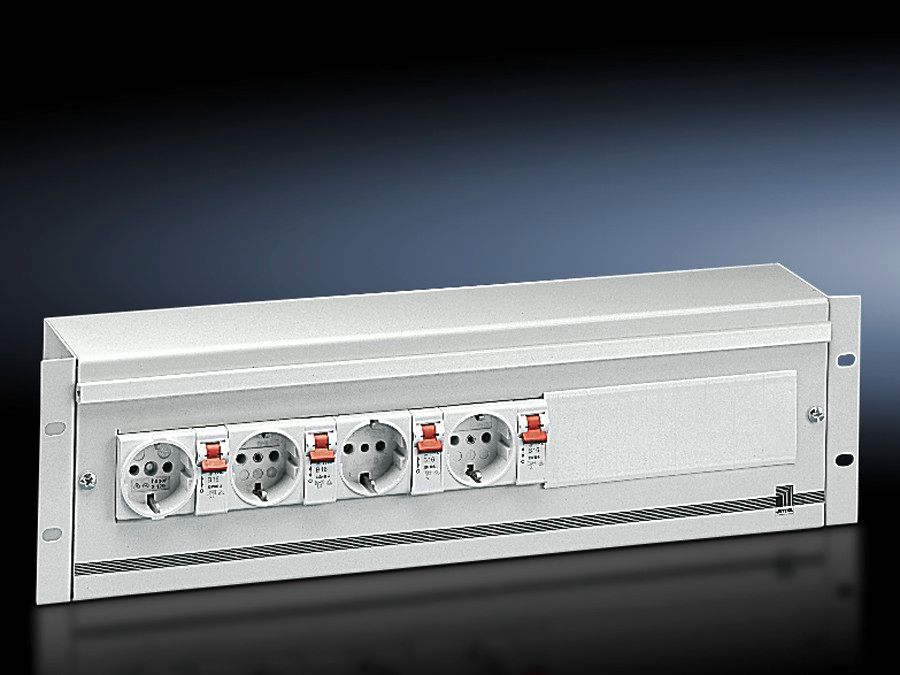

Product information for Rittal 7480035:
Depth-variable top hat rail for installed equipment to DIN 43 880 in sizes 1 – 3 (e.g. to accommodate flush-type socket outlets, circuit-breakers, etc.), cable clamping at the rear, one N and one PE rail on an insulated base/plinth, plastic cover including extension cover (UL 94-V0), maximum capacity = 22 HP (22 x 18 mm = 396 mm), enclosure height: 3 U, enclosure depth: 155 mm, overall installation depth with C rail: 155 mm, dimensions: W x H x D : 483 x 132.5 x 155 mm
Colour: RAL 7035
Supply includes: Energy-Box with plastic blanking covers.
Connection clamp
Identification strips
Strain relief
Brush strip
Note: Individual population with circuit-breakers at the factory available on request.
Packs of: 1 pc(s).
EAN: 4028177166004
Customs tariff number: 94032080
eCl@ss 5.1: 27143401
eCl@ss 7.0: 27142604
ETIM 6.0: EC002620
Dimensions: Width: 482.6 mm / 48,3 cm ( 19 inch )
Units: 3 U
Max. pitch units @ 18 mm: 22
Weight/pack: 2.56 kg
Colour: RAL 7035
Supply includes: Energy-Box with plastic blanking covers.
Connection clamp
Identification strips
Strain relief
Brush strip
Note: Individual population with circuit-breakers at the factory available on request.
Packs of: 1 pc(s).
EAN: 4028177166004
Customs tariff number: 94032080
eCl@ss 5.1: 27143401
eCl@ss 7.0: 27142604
ETIM 6.0: EC002620
Dimensions: Width: 482.6 mm / 48,3 cm ( 19 inch )
Units: 3 U
Max. pitch units @ 18 mm: 22
Weight/pack: 2.56 kg
Questions & answers
What is the delivery time of Rittal 7480035 Energy-Box 3 U RAL 7035?
The article Rittal 7480035 Energy-Box 3 U RAL 7035 is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7480035 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 7480035 Energy-Box 3 U RAL 7035 always at the best possible price. We can give you a discount of 2% on Rittal 7480035 Energy-Box 3 U RAL 7035 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
