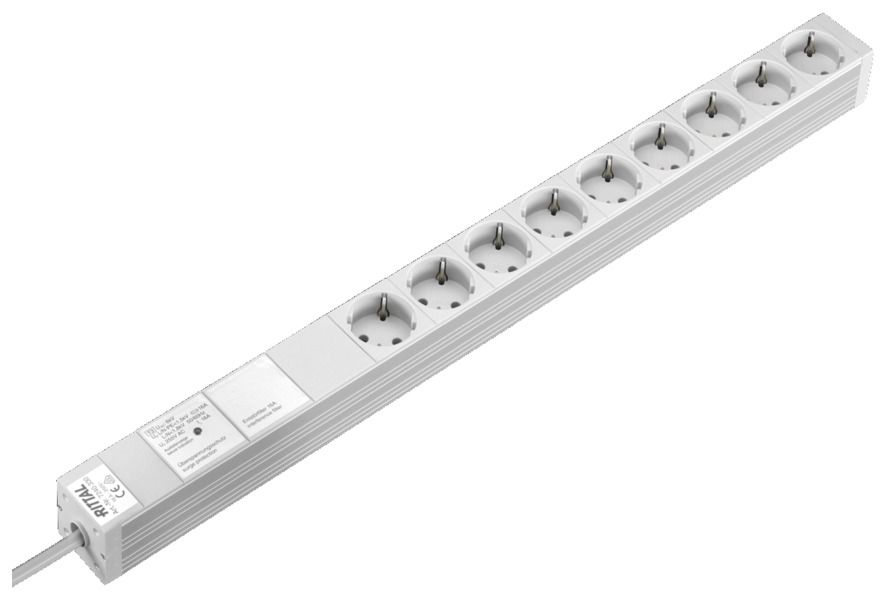

Rittal 7240330 DK Socket strip, CEE 7/3 (type F), 9-way, 250 V, 16 A, LHD: 658,6x44x44 mm, With overvoltage protection

This image may differ from the desired article.

-7% 198,95 EUR 212,87 EUR

( 236,75 EUR incl. VAT )

plus delivery charges

Delivery time on request

Printing view Bookmark Wholesale Inquiry

Lieske Part No.:

397614

Mfg Part No:

7240330

UPC/EAN:

4028177221246

Weight:

0 kg

Graduated prices net

From pieces	Price per pieces
5	192,98 EUR
10	187,01 EUR
15	181,04 EUR
20	175,08 EUR

Further Sockets from Rittal Further products in category Sockets All products of Rittal

Product information for Rittal 7240330:

The socket strips in the aluminium duct are available in various country-specific varitants with different functional elements. Special attention has been devoted to practical, universal fastening: Variable attachment facilities have been created with an angle bracket which may be inserted in four positions. Hence, for example, the 482 mm long socket strip may optionally be mounted on 482.6 mm (48,3 cm ( 19 inch )) mounting angles, the 482.6 mm (48,3 cm ( 19 inch )) mounting frame, on the enclosure frame, or in the rear section of the wall-mounted distributor. Without additional mounting accessories, the socket strip may be inserted into all sections with a 25 mm hole pattern. This makes selection much easier, as well as providing additional flexibility and saving on warehousing. Provision has also been made for cable routing of the infeed, and when mounting in the 482.6 mm (48,3 cm ( 19 inch )) section there is adequate space to route the infeed between the socket strip and the profile rail without kinks. The arrangement of the IEC 320 sockets at a 45° angle allows unrestricted use of angular connectors.
Material: Aluminium section, natural anodised
Socket inserts: Polycarbonate
Standards: DIN 49 440-1
Overvoltage protection for low voltage: DIN EN 61 643-11 (VDE 0675 Part 6-11)
Supply includes: Socket strip
Two mounting brackets
Assembly parts
Note: Depending on the application, we recommend use of a charging current reserve to prevent incorrect activation due to starting-current spikes
Variable attachment distance within a range of 25 mm, the distance given is hole centre – hole centre of mounting bracket
Packs of: 1 pc(s).
EAN: 4028177221246
Customs tariff number: 85369085
eCl@ss 5.1: 27143401
eCl@ss 7.0: 27142604
ETIM 6.0: EC000330

Design: With overvoltage protection and interference suppression filter
Dimensions: Height: 44 mm
Depth: 44 mm
Length: 658.6 mm
Installation options: Components with a 25 mm pitch pattern
Enclosure frame
Mounting dimensions: 628.5 mm
Tolerance: ± 25 mm
Rated voltage: 250 V AC
Rated current (max.): 16 A
Equipment (electrical): Number of sockets: 9
Jack/socket (type): D, earthing-pin (type F, CEE 7/3)
Colour of socket: Grey
Length of connection cable: 2 m
Connection cable (type): H05VV-F3G1.5
Weight/pack: 1.2 kg
Type: DK 7240.330
