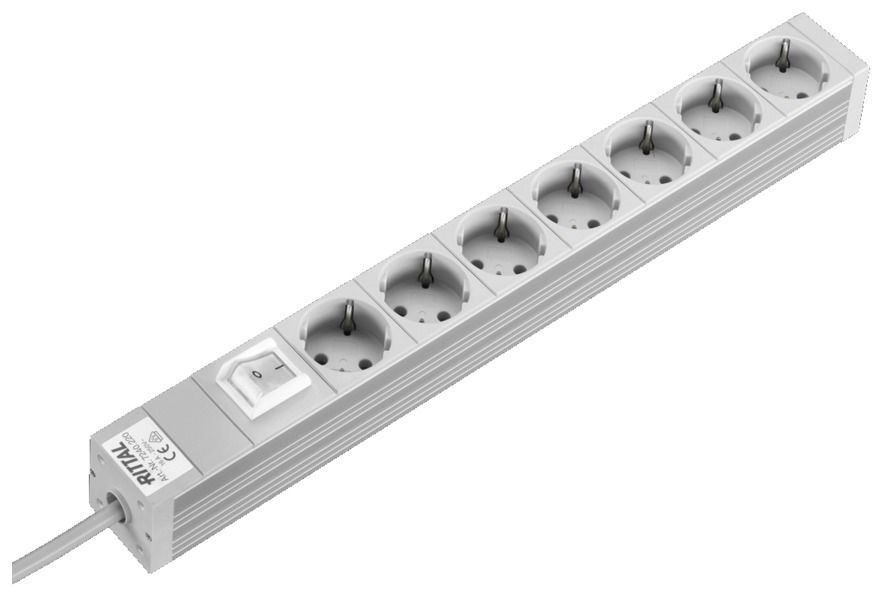

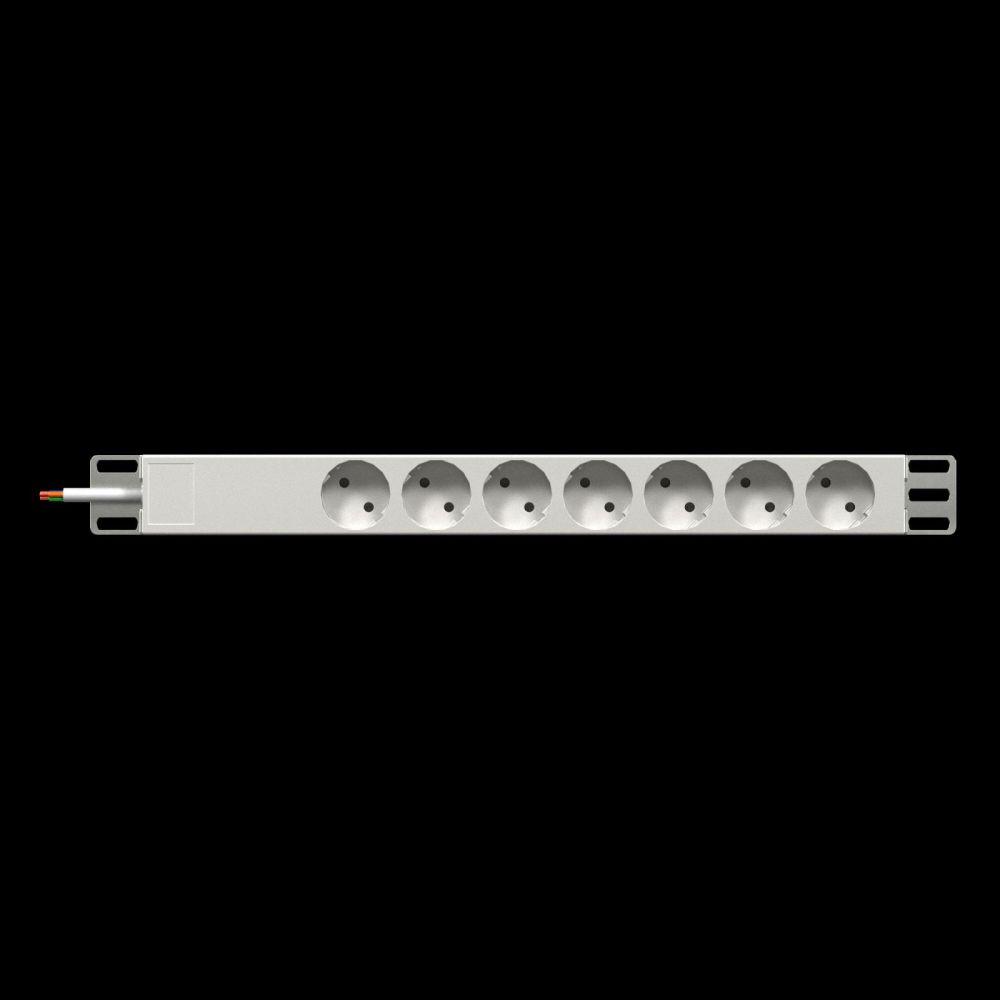

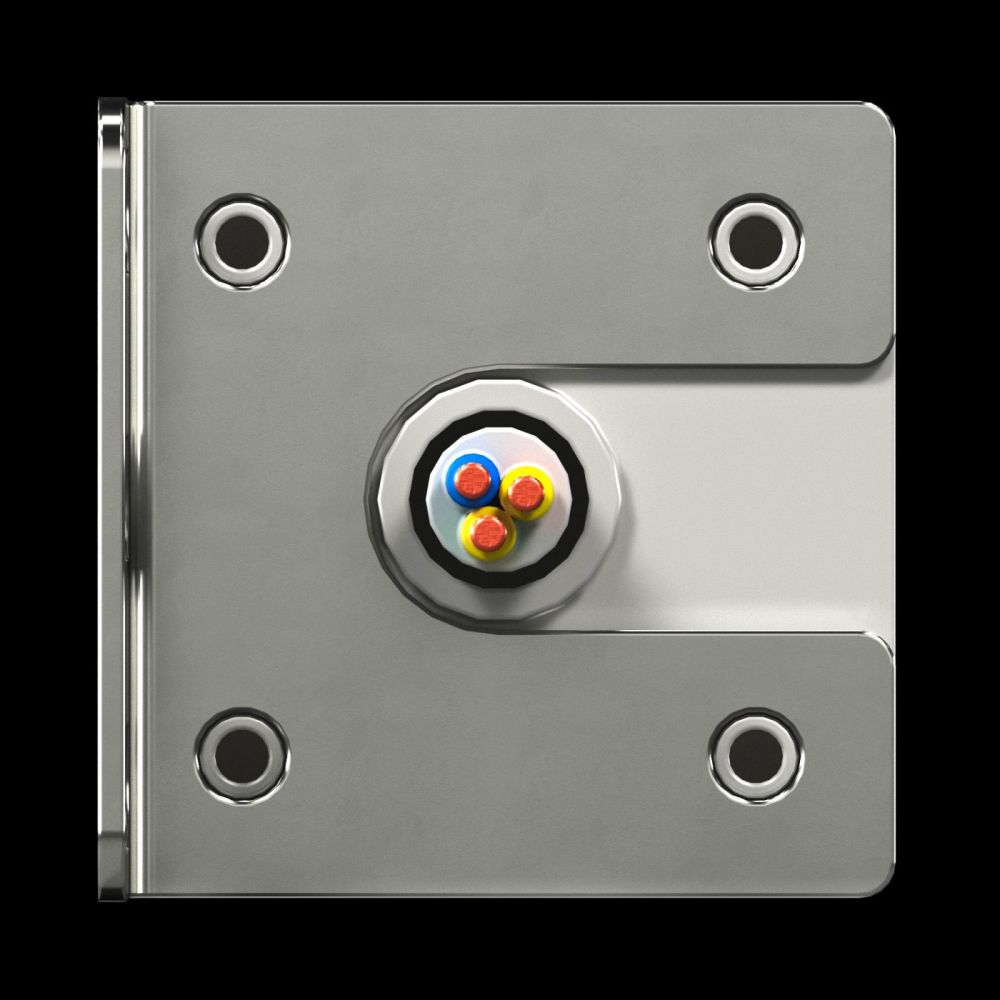

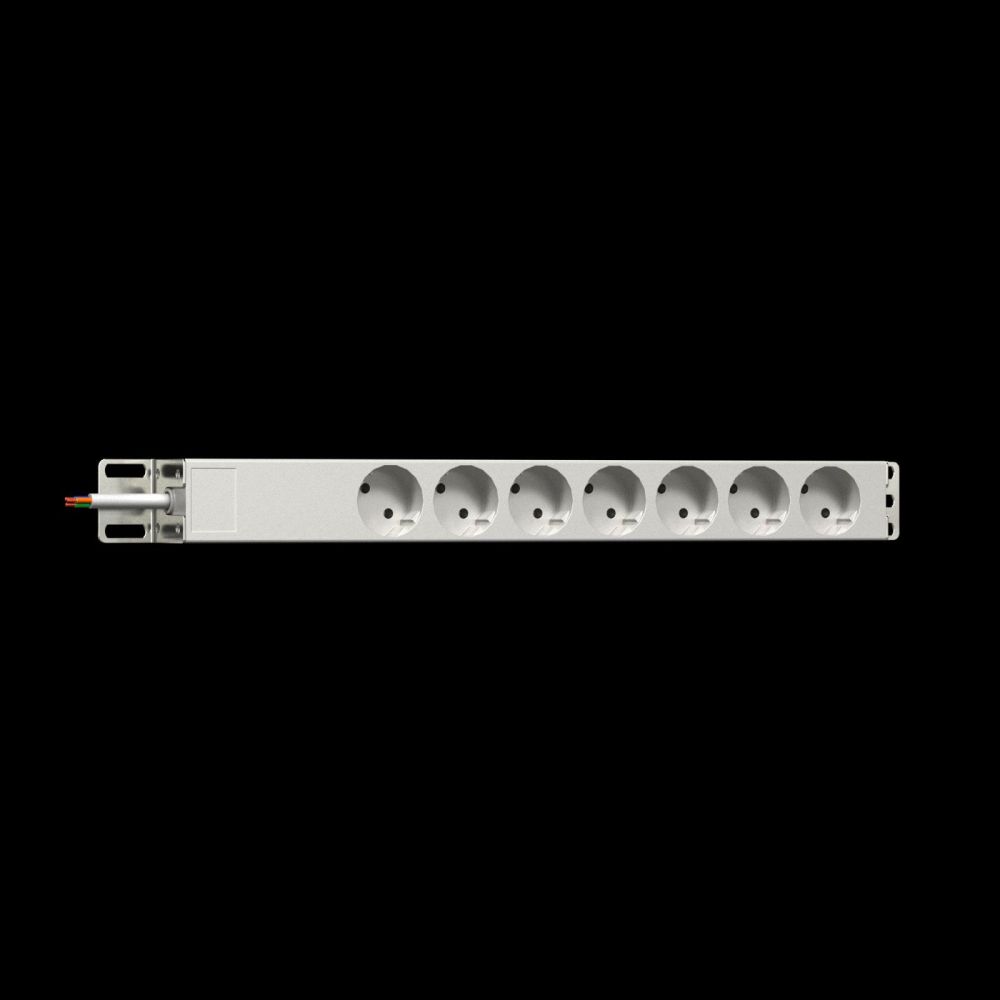

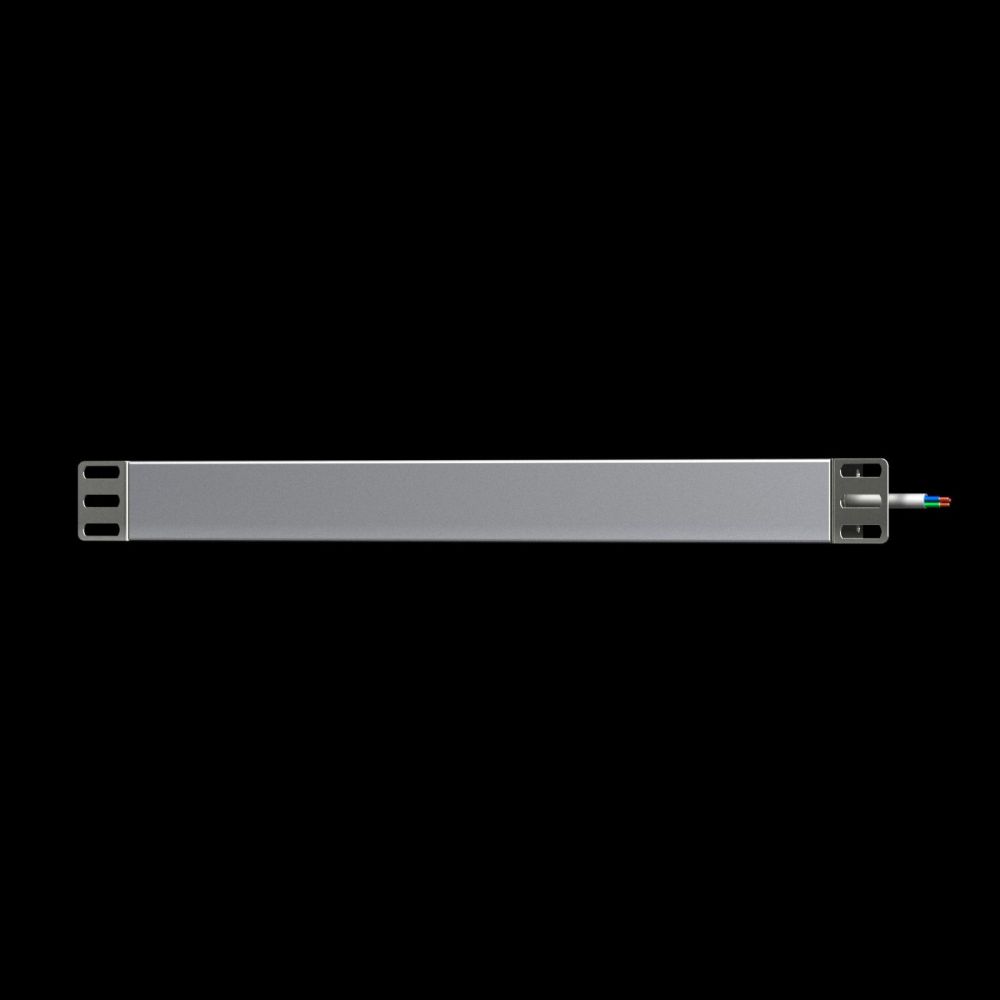

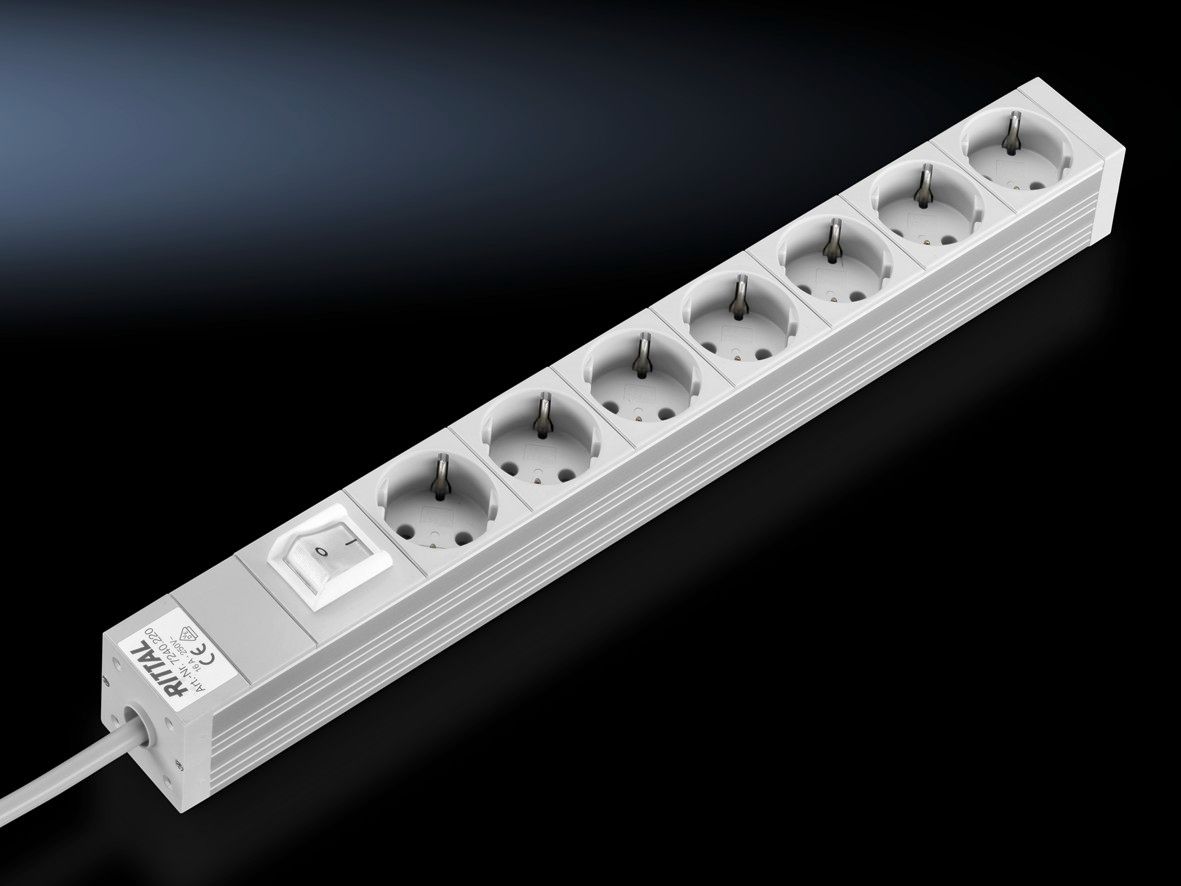

Rittal 7240220 DK Socket strip, CEE 7/3 (type F), 7-way, 250 V, 16 A, LHD: 482,6x44x44 mm, With rocker switch
|
53,72 EUR |
|||||||||||
|
( 63,93 EUR incl. VAT ) ≈ £46.09 | ≈ $62.27 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |||||||||||
| In Stock: 5 pieces | |||||||||||
| Lieske Part No.: | 994724 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 7240220 | ||||||||||
| UPC/EAN: | 4028177221178 | ||||||||||
| Weight: | 0.86 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 7240220:
The socket strips in the aluminium duct are available in various country-specific varitants with different functional elements. Special attention has been devoted to practical, universal fastening: Variable attachment facilities have been created with an angle bracket which may be inserted in four positions. Hence, for example, the 482 mm long socket strip may optionally be mounted on 482.6 mm (48,3 cm ( 19 inch )) mounting angles, the 482.6 mm (48,3 cm ( 19 inch )) mounting frame, on the enclosure frame, or in the rear section of the wall-mounted distributor. Without additional mounting accessories, the socket strip may be inserted into all sections with a 25 mm hole pattern. This makes selection much easier, as well as providing additional flexibility and saving on warehousing. Provision has also been made for cable routing of the infeed, and when mounting in the 482.6 mm (48,3 cm ( 19 inch )) section there is adequate space to route the infeed between the socket strip and the profile rail without kinks. The arrangement of the IEC 320 sockets at a 45° angle allows unrestricted use of angular connectors.
Material: Aluminium section, natural anodised
Socket inserts: Polycarbonate
Standards: DIN 49 440-1
Supply includes: Socket strip
Two mounting brackets
Assembly parts
Note: Depending on the application, we recommend use of a charging current reserve to prevent incorrect activation due to starting-current spikes
Variable attachment distance within a range of 25 mm, the distance given is hole centre – hole centre of mounting bracket
Packs of: 1 pc(s).
EAN: 4028177221178
Customs tariff number: 85369085
eCl@ss 5.1: 27143401
eCl@ss 7.0: 27142604
ETIM 6.0: EC000330
Design: With rocker switch
Dimensions: Height: 44 mm
Depth: 44 mm
Length: 482.6 mm
Installation options: Components with a 25 mm pitch pattern
Enclosure frame
IT wall-mounted distributor, at the rear, horizontal (adequate width provided)
482.6 mm (48,3 cm ( 19 inch )) level
Mounting dimensions: 452.5 mm
Tolerance: ± 25 mm
Rated voltage: 250 V AC
Rated current (max.): 16 A
Equipment (electrical): Number of sockets: 7
Jack/socket (type): D, earthing-pin (type F, CEE 7/3)
Colour of socket: Grey
Length of connection cable: 2 m
Connection cable (type): H05VV-F3G1.5
Weight/pack: 0.9 kg
Type: DK 7240220
Material: Aluminium section, natural anodised
Socket inserts: Polycarbonate
Standards: DIN 49 440-1
Supply includes: Socket strip
Two mounting brackets
Assembly parts
Note: Depending on the application, we recommend use of a charging current reserve to prevent incorrect activation due to starting-current spikes
Variable attachment distance within a range of 25 mm, the distance given is hole centre – hole centre of mounting bracket
Packs of: 1 pc(s).
EAN: 4028177221178
Customs tariff number: 85369085
eCl@ss 5.1: 27143401
eCl@ss 7.0: 27142604
ETIM 6.0: EC000330
Design: With rocker switch
Dimensions: Height: 44 mm
Depth: 44 mm
Length: 482.6 mm
Installation options: Components with a 25 mm pitch pattern
Enclosure frame
IT wall-mounted distributor, at the rear, horizontal (adequate width provided)
482.6 mm (48,3 cm ( 19 inch )) level
Mounting dimensions: 452.5 mm
Tolerance: ± 25 mm
Rated voltage: 250 V AC
Rated current (max.): 16 A
Equipment (electrical): Number of sockets: 7
Jack/socket (type): D, earthing-pin (type F, CEE 7/3)
Colour of socket: Grey
Length of connection cable: 2 m
Connection cable (type): H05VV-F3G1.5
Weight/pack: 0.9 kg
Type: DK 7240220
Questions & answers
What is the delivery time of Rittal 7240220 DK Socket strip, CEE 7/3 (type F), 7-way, 250 V, 16 A, LHD: 482,6x44x44 mm, With rocker switch?
The article Rittal 7240220 DK Socket strip, CEE 7/3 (type F), 7-way, 250 V, 16 A, LHD: 482,6x44x44 mm, With rocker switch is currently in stock
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7240220 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 7240220 DK Socket strip, CEE 7/3 (type F), 7-way, 250 V, 16 A, LHD: 482,6x44x44 mm, With rocker switch always at the best possible price. We can give you a discount of 2% on Rittal 7240220 DK Socket strip, CEE 7/3 (type F), 7-way, 250 V, 16 A, LHD: 482,6x44x44 mm, With rocker switch if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Rittal 7240220 DK Socket strip, CEE 7/3 (type F), 7-way, 250 V, 16 A, LHD: 482,6x44x44 mm, With rocker switch we can offer you a price of 53,32 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
