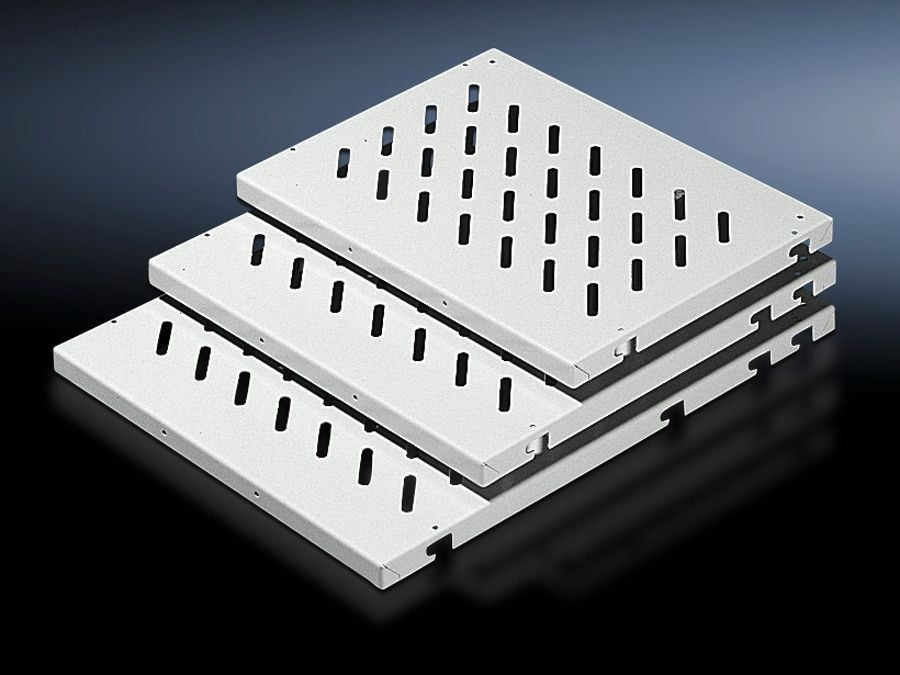

Rittal 7145735 DK 19 U component shelf 409x700 mm
|
60,71 EUR 63,30 EUR |
|
|
( 72,24 EUR incl. VAT ) ≈ £50.81 | ≈ $66.72 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 248909 |
| Mfg Part No: | 7145735 |
| UPC/EAN: | 4028177221420 |
| Weight: | 3.77 kg |
| Type: | DK 7145735 |
Product information for Rittal 7145735:
Applications: For mounting two between 482.6 mm (48,3 cm ( 19 inch )) mounting angles
For upgrading legacy TS items
Material: Sheet steel
Colour: RAL 7035
Supply includes: Assembly parts
Note: For TS: If L-shaped mounting angles based on TS are used in network enclosures, adaptor 7827.300 is required
For TS, 482.6 mm (48,3 cm ( 19 inch )) system punchings: The depth-variable installation kit 7063.850 allows flexible mounting between two L-shaped mounting angles directly on the 48,3 cm ( 19 inch ) system punchings.
Packs of: 1 pc(s).
EAN: 4028177221420
Customs tariff number: 94039010
eCl@ss 5.1: 27189218
eCl@ss 7.0: 27189261
ETIM 6.0: EC002620
To fit: Enclosure type: TS
Dimensions: Width: 409 mm
Depth: 700 mm
Distance between levels: 548 mm
648 mm
698 mm
Load capacity: 50 kg area load
Weight/pack: 3.8 kg
| General | |
| Applications | For mounting on two 19" mounting planes, For retrofitting existing TS products |
| Material | steel sheet |
| Colour | RAL 7035 |
| Scope of delivery | Including mounting hardware |
| Distance between mounting surfaces | 548 mm, 648 mm, 698 mm |
| Load capacity | 50 kg surface load |
| Note | For TS: If L-shaped profile rails are used in network cabinets Basis TS, adapter 7827.300 is required. For TS, 19"-system mounting: With the installation kit, variable depth 7063.850, flexible installation between two L-shaped profile rails directly at the 19"-system mounting is possible. |
| Width | 409 mm |
| Depth | 700 mm |
Questions & answers
What is the delivery time of Rittal 7145735 DK 19 U component shelf 409x700 mm?
The article Rittal 7145735 DK 19 U component shelf 409x700 mm is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7145735 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 7145735 DK 19 U component shelf 409x700 mm always at the best possible price. We can give you a discount of 2% on Rittal 7145735 DK 19 U component shelf 409x700 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
