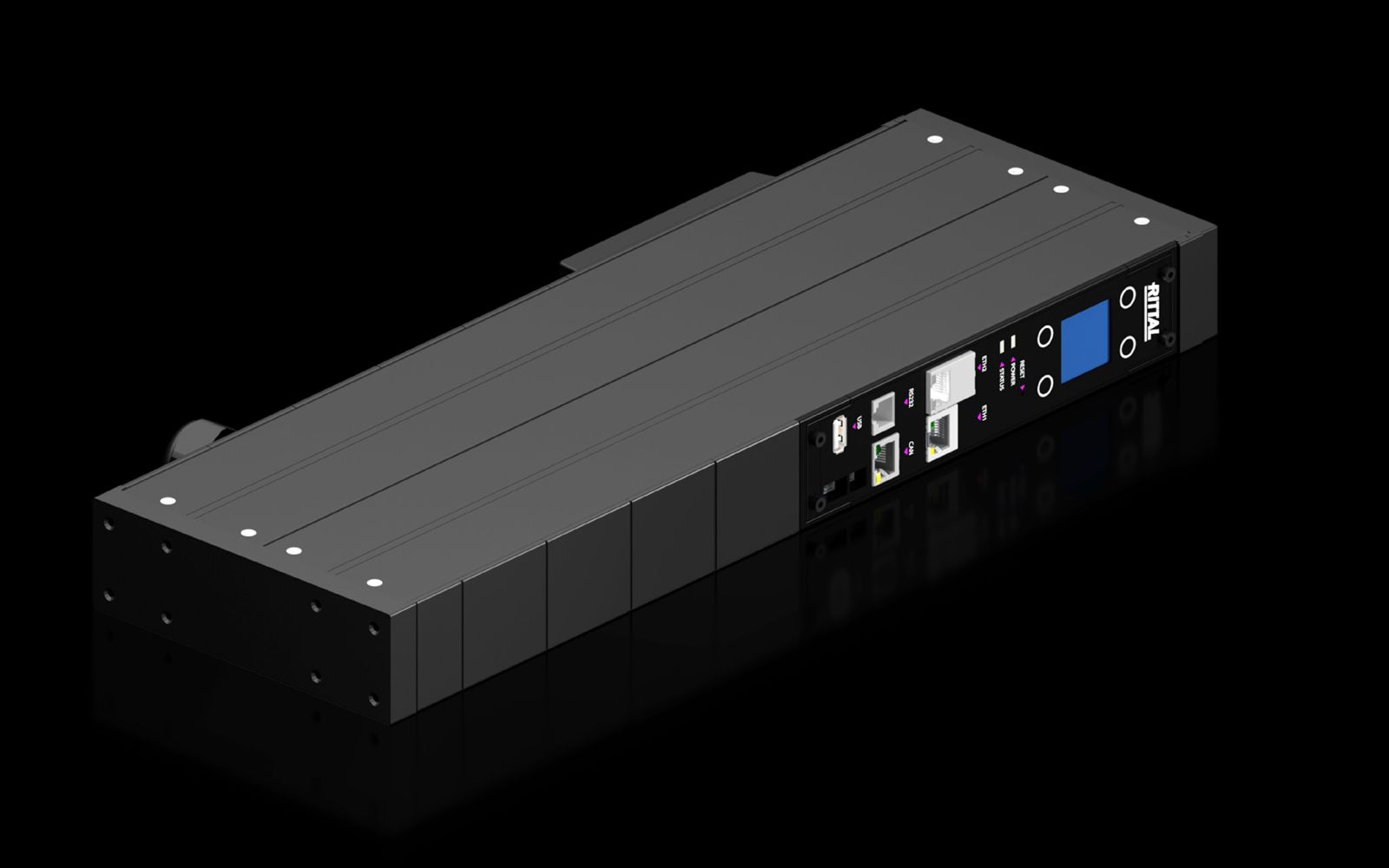

Rittal 7030022 DK CMC III PU 48,3 cm ( 19 inch ) Edition

Your rating:
Average rating
product review for Rittal 7030022 DK CMC III PU 48,3 cm ( 19 inch ) Edition
( 5 / 5 ) 1 ratings
Rittal 7030022
This image may differ from the desired article.
Rittal 7030022Rittal 7030022
845,25 EUR
( 1.005,85 EUR incl. VAT )
≈ £707.47  |  ≈ $928.93
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 7030022 DK CMC III PU 48,3 cm ( 19 inch ) Edition
Datasheet:file_download Download
Lieske Part No.:603867
Mfg Part No: 7030022
UPC/EAN: 4028177980532
Weight:2.452 kg
Type:DK 7030022

Product information for Rittal 7030022:

The Rittal CMC III Processing Unit 48,3 cm ( 19 inch ) Edition (Type DK 7030022) is a central monitoring unit for the CMC III system, specifically designed for use in IT enclosures, industrial enclosures and building technology. The device enables continuous collection and evaluation of measurement data from connected sensors and triggers alarms when freely adjustable threshold values are exceeded. It allows integration into existing network management systems via SNMP and offers direct connection to the data network via Ethernet. The unit is designed for use in 48,3 cm ( 19 inch ) racks and features an integrated display as well as mounting hardware for surface mounting.

Applications

The CMC III Processing Unit is primarily used for monitoring enclosures in IT environments, industrial applications and building management. It collects data from up to 16 external sensors or CAN-Bus interface units and enables remote monitoring via network management systems or control rooms. The unit is designed for indoor use, with an operating temperature range of 0 °C to 45 °C and a humidity range of 5 % to 95 % (non-condensing). The protection rating IP 20 according to EN 60 529 ensures protection against contact and foreign objects, but not against water or dust.

Functions and Equipment in Detail

The device features a network interface according to IEEE 802.3 with 10/100BaseT Full-duplex (10/100 Mbit/s) and supports PoE (Power over Ethernet), allowing power supply via the network cable. This enables redundant power supply, as the device can also be operated via an integrated power supply (230 V). The PoE power supply is also used for connected CAN-Bus sensors. The interface to the bus system is via RJ45 CAN-Bus, allowing up to 16 sensors to be connected. An alarm relay output with terminal up to 1.5 mm² (max. 24 V DC/1 A) enables control of external alarm systems.

Technology Explained Simply

The CMC III Processing Unit communicates via various protocols, including TCP/IPv4, TCP/IPv6, SNMPv1, SNMPv2c, SNMPv3, Telnet, SSH, FTP, SFTP with SSL, HTTP, HTTPS with SSL, NTP, DHCP, DNS, SMTP, Syslog, LDAP, Radius, OPC-UA, Modbus/TCP and RS-232. These protocols enable integration into various network environments and communication with control room systems via OPC-UA. The unit features an integrated time function system with real-time clock and NTP support to ensure accurate timestamps for collected data. LED indicators on the front and rear show the status of the unit and the network status. A mobile web page is available for Android and Windows Phone devices to enable configuration and monitoring on the go.

Compatibility and Accessories

The CMC III Processing Unit is part of the CMC III system and can be combined with other components such as the CMC III mounting unit. The unit supports connection of Axis network cameras with VAPIX® version 3 via the Streaming interface. The serial interface is via RJ12. For enhanced network security, unencrypted protocols can be deactivated.

Mounting and Installation

The unit is designed for mounting in 48,3 cm ( 19 inch ) racks and is mounted on surfaces using included mounting hardware. Dimensions are 450 mm (width) × 44 mm (height) × 144 mm (depth).

Operational Advantages

The redundant power supply via PoE and integrated power supply increases system availability. Optimized space utilization and connection technology reduce installation costs. Support for numerous network protocols and the ability to send alarms via email servers facilitate integration into existing IT infrastructures. Central network-based control enables remote monitoring and configuration, reducing maintenance and operating costs. The unit is designed for use in industrial and IT environments, with materials (plastic, aluminium profile, black anodized) and surface finish (front: smooth, enclosure: textured) ensuring a robust and professional design. The colour scheme corresponds to RAL 7035 (enclosure) and RAL 9005 (front).

General
Model19" version
ApplicationsMonitoring of cabinets in IT, industry and building technology.
Function principleCentral monitoring unit for the CMC III system. Direct connection of the device via SNMP over Ethernet. Collects measurement data and alerts network management systems or control rooms when freely adjustable thresholds are exceeded.
MaterialPlastic, aluminium profile, black anodized
Surface protectionFront: smooth, Housing: textured
ColourHousing: RAL 7035, Front: RAL 9005
Scope of deliveryCMC III Processing Unit, basic system, integrated display, including mounting hardware for surface mounting
Interface bus systemRJ45 CAN-Bus
Alarm relay outputTerminal up to 1.5 mm² (max. 24 V DC/1 A)
Mobile websiteFor Android and Windows Phone
Network interfaceEthernet according to IEEE 802.3 over 10/100BaseT full-duplex 10/100 Mbit/s, PoE
UPS interfacePoE (Power over Ethernet)
Serial interfaceRJ12
Streaming interfaceAxis network camera with VAPIX® version 3
Number of sensors (max.)16
NoteFor enhanced network security, unencrypted protocols can be disabled
LED indicators (rear)Network status
LED indicators (front side)Status
ProtocolsTCP/IPv4, TCP/IPv6, SNMPv1, SNMPv2c, SNMPv3, Telnet, SSH, FTP, SFTP with SSL, HTTP, HTTPS with SSL, NTP, DHCP, DNS, SMTP, Syslog, LDAP, Radius, OPC-UA, Modbus/TCP, RS-232
Width450 mm
Height44 mm
Depth144 mm
Operating temperature range0 °C...45 °C
Humidity (non-condensing)5...95 %


Product data sheet
Datasheet for Rittal 7030022, EAN: 4028177980532

Questions & answers

What is the delivery time of Rittal 7030022 DK CMC III PU 48,3 cm ( 19 inch ) Edition?

The article Rittal 7030022 DK CMC III PU 48,3 cm ( 19 inch ) Edition is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7030022 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 7030022 DK CMC III PU 48,3 cm ( 19 inch ) Edition always at the best possible price. We can give you a discount of 2% on Rittal 7030022 DK CMC III PU 48,3 cm ( 19 inch ) Edition if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
