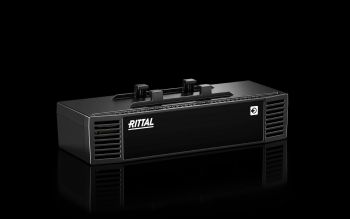

Rittal 7010190 Uni-sensor for connecting DK to CMC III Processing Unit
|
114,39 EUR |
|
|
( 136,12 EUR incl. VAT ) ≈ £95.74 | ≈ $125.71 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1028164 |
| Mfg Part No: | 7010190 |
| UPC/EAN: | 4069196000696 |
| Weight: | 0.157 kg |
Product information for Rittal 7010190:
Applications
The sensor is intended for monitoring enclosures, rooms, and containers in IT environments as well as in industrial and building technology applications. It enables the capture of various parameters, which can be used differently depending on the configuration. Applications range from monitoring potential-free contacts (e.g., door contacts) to integration into energy metering systems via the S0 bus or access control systems via the Wiegand interface.
Functions and Equipment in Detail
The Universal Sensor features two digital inputs and one analog input, which can be configured according to application requirements. The digital inputs can be set up for monitoring potential-free contacts, S0 bus (for energy meters), or Wiegand interface (for external access systems). The analog input supports the 4–20 mA interface, commonly used in industrial measurement and control systems. Configuration is performed via the CMC III Processing Unit, PDU, or IoT Interface, enabling flexible adaptation to different system environments.
Technology Explained Simply
This simplifies installation and reduces the number of required cables. Connection to the CAN bus is direct, with two RJ45 connectors available for communication. The Plug-&-Play function enables quick connection and automatic network detection, allowing commissioning without manual settings. The operating temperature ranges from 0 °C to 45 °C, and humidity can reach up to 95 % (non-condensing), ensuring reliable operation in controlled indoor environments.
Compatibility and Accessories
The sensor is designed for use with CMC III, PDU, LCP, and IoT interfaces. It is part of a modular monitoring system that integrates various sensors and devices. The interfaces enable connection to energy meters (S0 bus), access control systems (Wiegand), and analog sensors (4–20 mA). Direct connection to the CAN bus ensures reliable data transmission within the enclosure environment.
t
Mounting and Installation
Mounting is performed in designated enclosure rows, with the compact design allowing flexible placement. The direct CAN bus connection and Plug-&-Play function simplify installation, as no additional configuration steps are required. Power supply via the CAN bus reduces the number of required cables and simplifies wiring.
Operational Advantages
The sensor offers flexible configuration for different applications, enabling use in various system environments. The Plug-&-Play function and power supply via the CAN bus reduce installation time and complexity. Integration into existing monitoring systems such as CMC III or IoT interfaces enables centralized evaluation of captured data, improving operational monitoring efficiency. The robust plastic construction and specific operating conditions (temperature 0–45 °C, humidity up to 95 %) ensure reliable performance in typical indoor environments.
Scope of Delivery
The scope of delivery includes the Universal Sensor. The information refers exclusively to the device itself, as described by the manufacturer.
More spare projector bulbs for your Epson Beamer
| General | |
| Model | Universal sensor |
| Applications | Monitoring of cabinets in IT, industry and building technology. Monitoring of cabinets, rooms and containers in IT environment. |
| Material | Plastic |
| Surface protection | Front: smooth, Housing: textured |
| Colour | RAL 9005 |
| Scope of delivery | Universal sensor |
| Connection to CAN bus | Direct |
| Interfaces | 2 x RJ45 CAN-Bus, analog, 4 - 20 mA, 2 digital inputs/S0-Bus/Wiegand |
| Width | 110 mm |
| Height | 30 mm |
| Depth | 40 mm |
| Operating temperature range | 0 °C...45 °C |
| Humidity (non-condensing) | 0...95 % |
